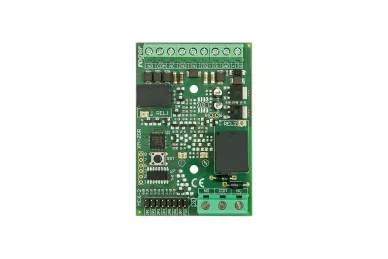

Roger MCX2-BRD I/O Expander

80,84 EUR including 23.00% VAT
Product code: #22418
Manufacturer: Roger
  • 2 parametric inputs
  • 2 relay outputs
  • Double Wiring input option
  • Output activation signalled by LED indicator
  • Configuration and firmware update through RS485

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MCT12M-IO Terminal dostępu with keypad Roger RUD-1 Portable USB-RS485 communication interface Roger MCT12M Proximity Reader with keypad ROGER MCT80M Access Terminal Mifare Roger MCT66E-IO Proximity Reader Roger MCT64E-IO Proximity Reader with keypad Roger MD70 Touch Panel with MIFARE Reader Roger MCT62E Proximity Reader Roger MCX4D Door Expander Roger MCT12E-IO Proximity Reader with keypad

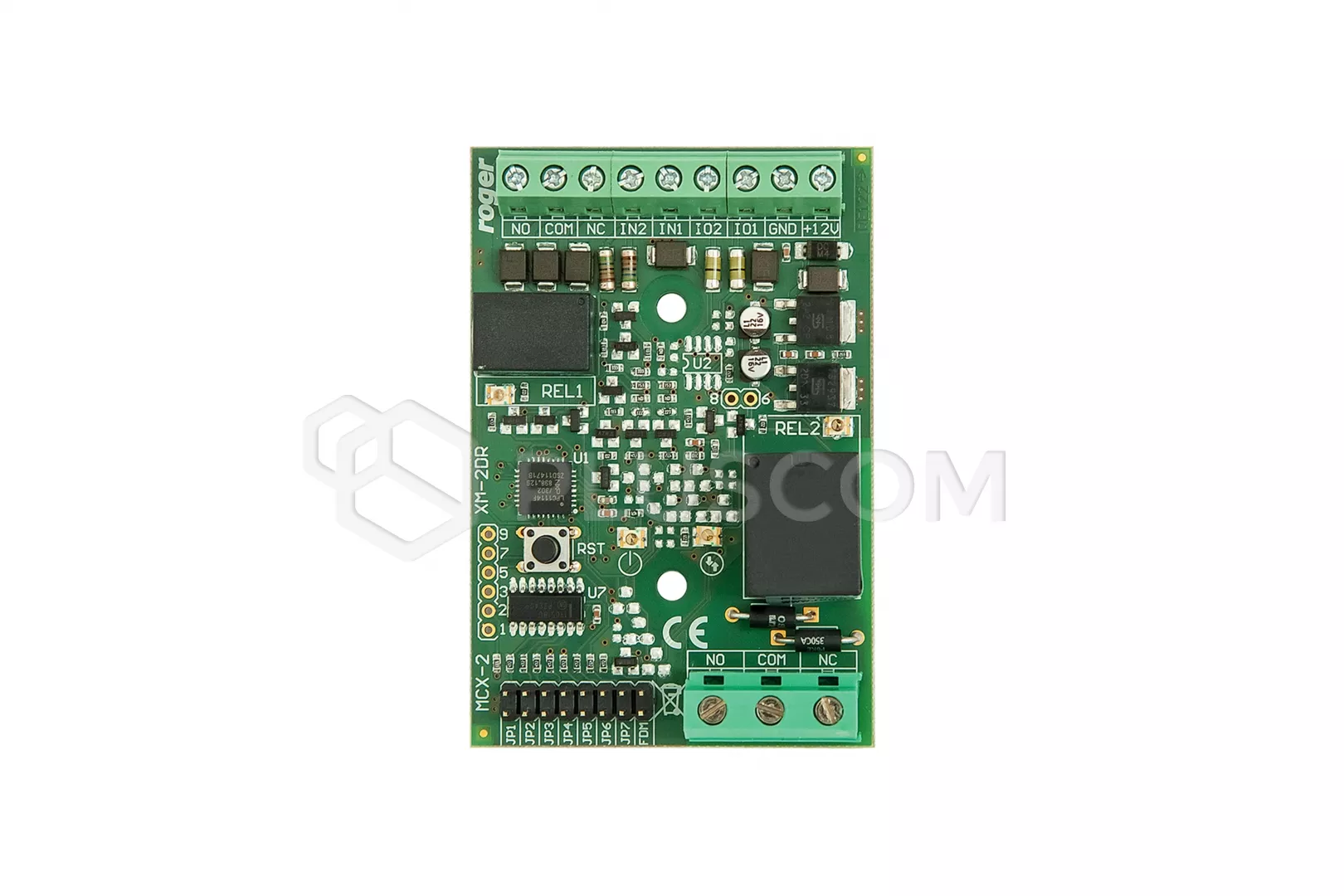

Roger MCX2-BRD I/O Expander


MCX2-BRD are I/O expanders dedicated to RACS 5 system. Devices enable to increase the number of inputs and outputs in the system. Such I/Os are used for connection of door locks, door contacts, exit buttons, signalling devices, etc. Expanders are connected to access controller through RS485 interface.

Characteristics:
  • RACS 5 system I/O expander
  • 2 parametric (EOL) inputs (MCX2-BRD)
  • 2 relay outputs (MCX2-BRD)
  • configuration of input reaction time
  • double Wiring input option
  • output activation signalled by LED indicator
  • configuration of output default state (polarization)
  • configuration and firmware update through RS485
  • 12 VDC power supply
  • screw terminals
The expander requires power supply voltage in range of 11-15VDC. It can be supplied from MCX2D/MCX4D expander of MC16-PAC-KIT, from MC16 access controller (e.g. AUX output) or from dedicated power supply unit.
Roger MCX2-BRD  I/O Expander

Roger MCX2-BRD I/O Expander


TECHNICAL DATA:
  • supply voltage:
    • nominal 12VDC
    • min./max. range 10-15VDC
  • current consumption: 30mA (when relays off)
  • relay output 1.5 A/30 VDC
  • relay output 5 A/30 VDC
  • IP20
  • environmental class:
  • working temperature: +5°C- +40°C
  • dimensions: 80x54x20mm
  • weight: 50g
