Roger MC16-PAC-EX-1-KIT Access control kit

Roger MC16-PAC-EX-1-KIT Access control kit for 1 door in the system RACS 5 v2 EX

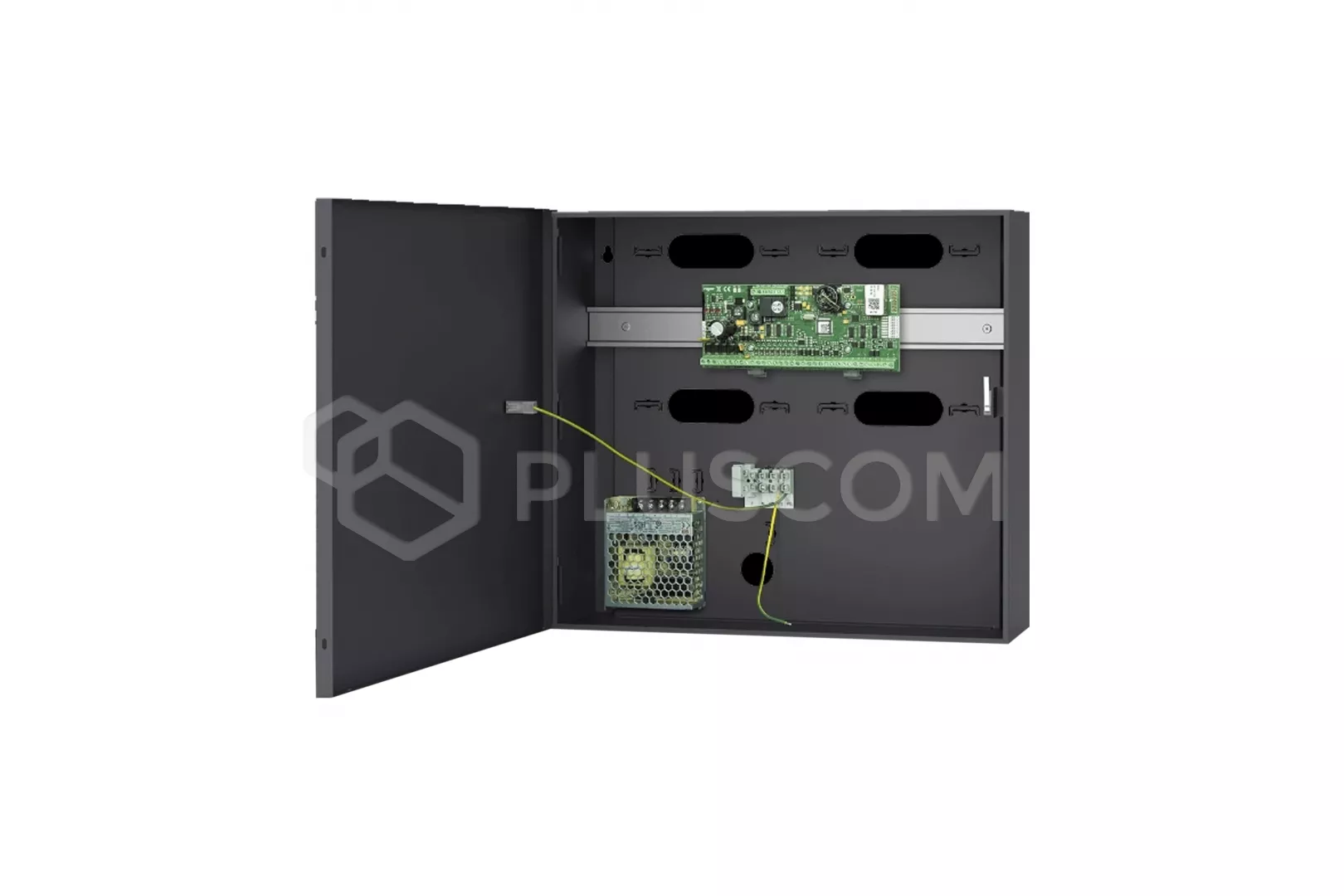

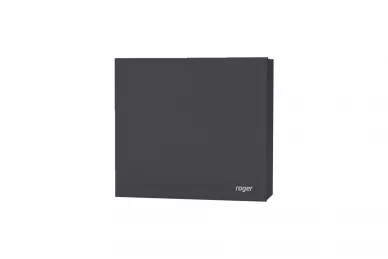

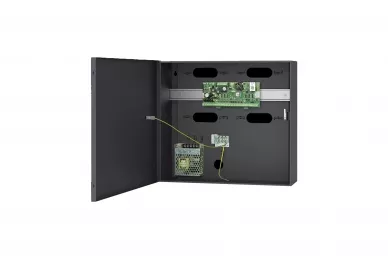

SET INCLUDES MC16-PAC-EX-1 access controller 24V DC/2.2A power supply Metal housing with ME-40-24V power supply

Roger MC16-PAC-EX-1-KIT Access control kit

The MC16-PAC-EX-1-KIT set is designed to support one passage as part of the RACS 5 access control system. The doorway can be controlled single or double-sided using MCT series readers, z readers OSDP-RS485 interface, including OSR series readers, PRT series readers or readers with Wiegand interface.

The controller enables operation of up to 1 controlled two-sided passages and is offered event registration for the use of T&A and alarm systems.
The concept of use with an alarm system allows you to present the zone status alarm system and controlling its status directly from the access terminals. MC16-PAC-EX-1 provides an advanced, yet very advanced method managing system users and shaping their rights.

The management controller is with the VISO EX application, which allows operation with Microsoft SQL Server server database.

FEATURES:

• 12000 IDs
• 8 media (card, PIN, fingerprint, etc.) within one identifier
• 100 permissions per ID
• 1 double-sided passage (door)
• 2 login points
• 4 access terminals (readers)
• 2 access zones
• 2 alarm zones
• 2 electrical nodes
• try RCP
• 4 access steps within one registration mode
• 8 auxiliary parameters on the controller
• 8 output lines (main board, expanders, input output on readers)
• 8 transistor outputs 15 V/150 mA DC on the controller
• 2 30V/1.5A AC/DC output relays on the controller
• 8 function keys
• entry blocking with timed reset (Timed Anti-passback)
• 32 calendars
• 99 covering time within the calendar
• 250 time schedules
• 40 shared times in one schedule
• direct support for MCT series readers (RS485 interface)
• support for OSDP readers (OSDP v2 protocol) via the MCI-3 interface
• possibility to reconnect the PRT series reader to the motherboard controller
• possibility to disable the Wiegand reader for the motherboard controller
• support for PRT and Wiegand readers via interfaces MCX
• bus
• buffer of 8 million events on a removable memory card
• DC or AC power supply
• charging and handy backup battery
• RACS CLK/DTA interface
• RS485 interface
• Ethernet interface
• AES128-CBC encrypted data method
• fast (less than 1 minute)
• transferring treatment in the background without the system running
• built-in switching power supply with 12 VDC/1.0 A output
• dimensions: 72.0 x 175.0 x 30.0 mm
