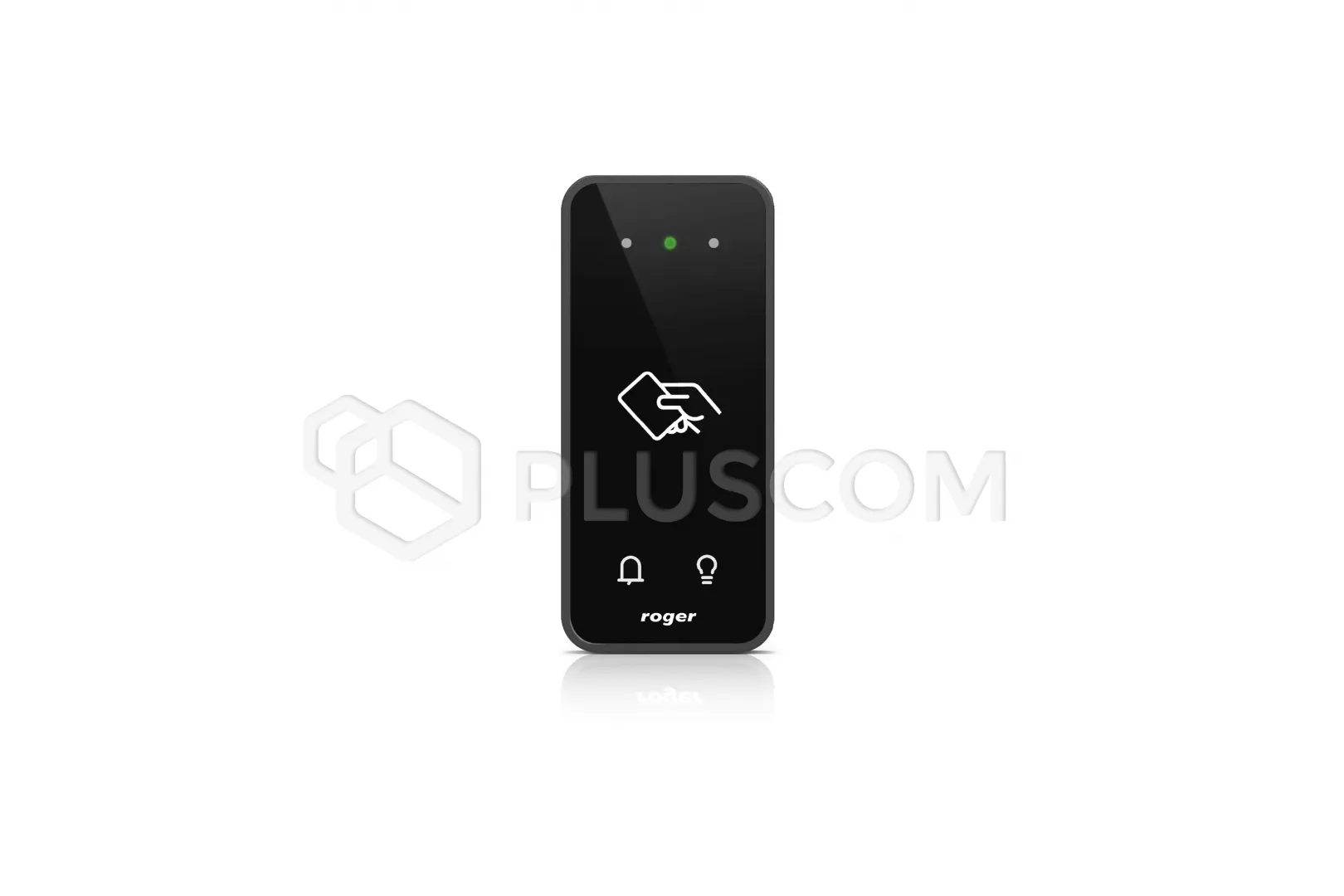

Roger OSR80M-BLE Proximity Reader
OSR80M-BLE is a miniature
identification terminal designed to work with an access controller supporting
the OSDP v2.2 protocol. The terminal enables user recognition via 13.56 MHz
Mifare® proximity cards Ultralight/Classic/DESFire (EV1, EV2, EV3)/PLUS and
also via a mobile device (phone) equipped with NFC or Bluetooth technology.
In case of identification using Bluetooth technology, range reading can reach
up to several meters. The remaining methods require a closer look ID card to
the reader at a distance of several centimeters. Identification mobile requires
the Roger Mobile Key application to be installed on your phone.
OSR80M-BLE requires a DC power supply in the range of 11-15V. It's tension
can be supplied from the MCX2D/MCX4D expander of the MC16-PAC-KIT set,
controller access MC16 (TML power output) or from a separate power supply.
Communication between the terminal and the access controller is carried
out using OSDP protocol on the RS485 bus. The device can be connected directly
to access controllers supporting this bus. However, in the case of the
controller MC16, it is additionally necessary to use the MCI-3 intermediary
interface.
The RS485 transmission standard used in the RACS 5 system guarantees correct
transmission communication at a distance of up to 1200 meters (calculated by
cable) and characterized with high resistance to interference.
Function keys
The terminal is equipped with two touch function keys. You can use the keys
assign various functions within the high-level configuration (VISO), e.g. bell,
set the T&A Mode, record the AROUND event, turn on the automation node, etc. As
part of the low-level configuration (RogerVDM) you can set whether keys are
supported.
FEATURES:
- Access terminal supporting OSDP v2.2
- 13.56 MHz Mifare® Ultralight/Classic/DESFire card reading (EV1, EV2,
EV3)/PLUS
- Mobile identification via a phone with NFC or Bluetooth
- Function keys: Bell and Light
- 3 signaling LEDs
- Buzzer
- RS485
- Tamper
- Outdoor work
The device can be installed outside buildings without the need using
additional security measures. Due to its relatively small dimensions the reader
can be mounted on the doors of various types of cabinets and compartments.
The terminal is consistent with the QUADRUS stylistic line.
