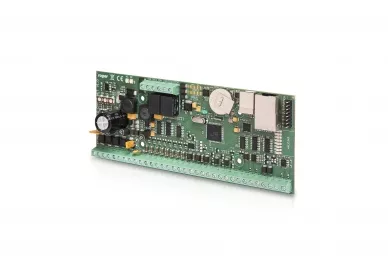

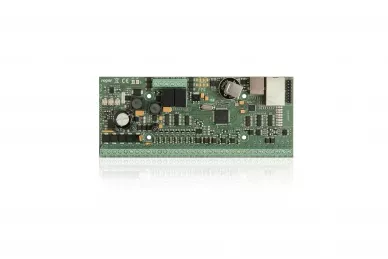

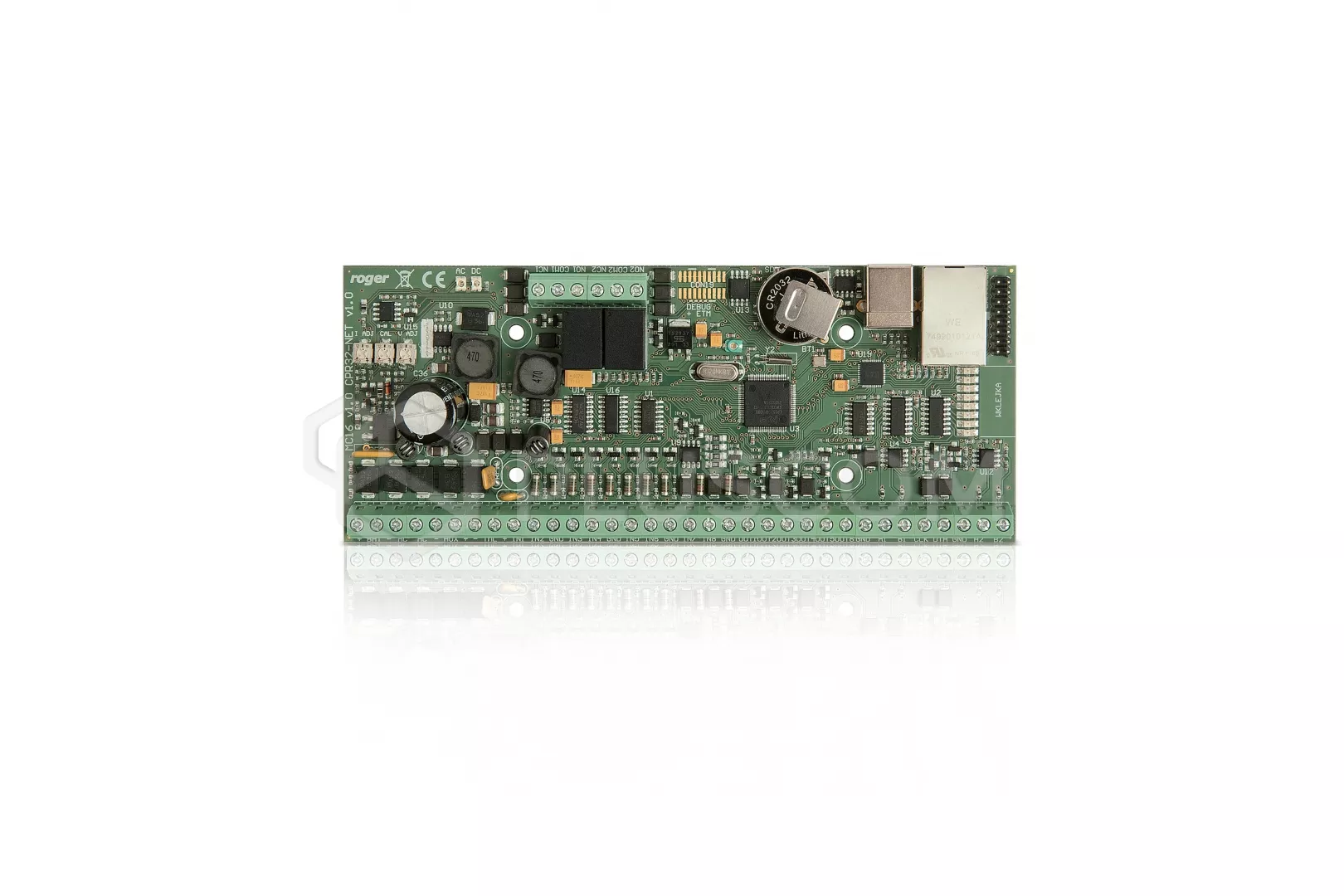

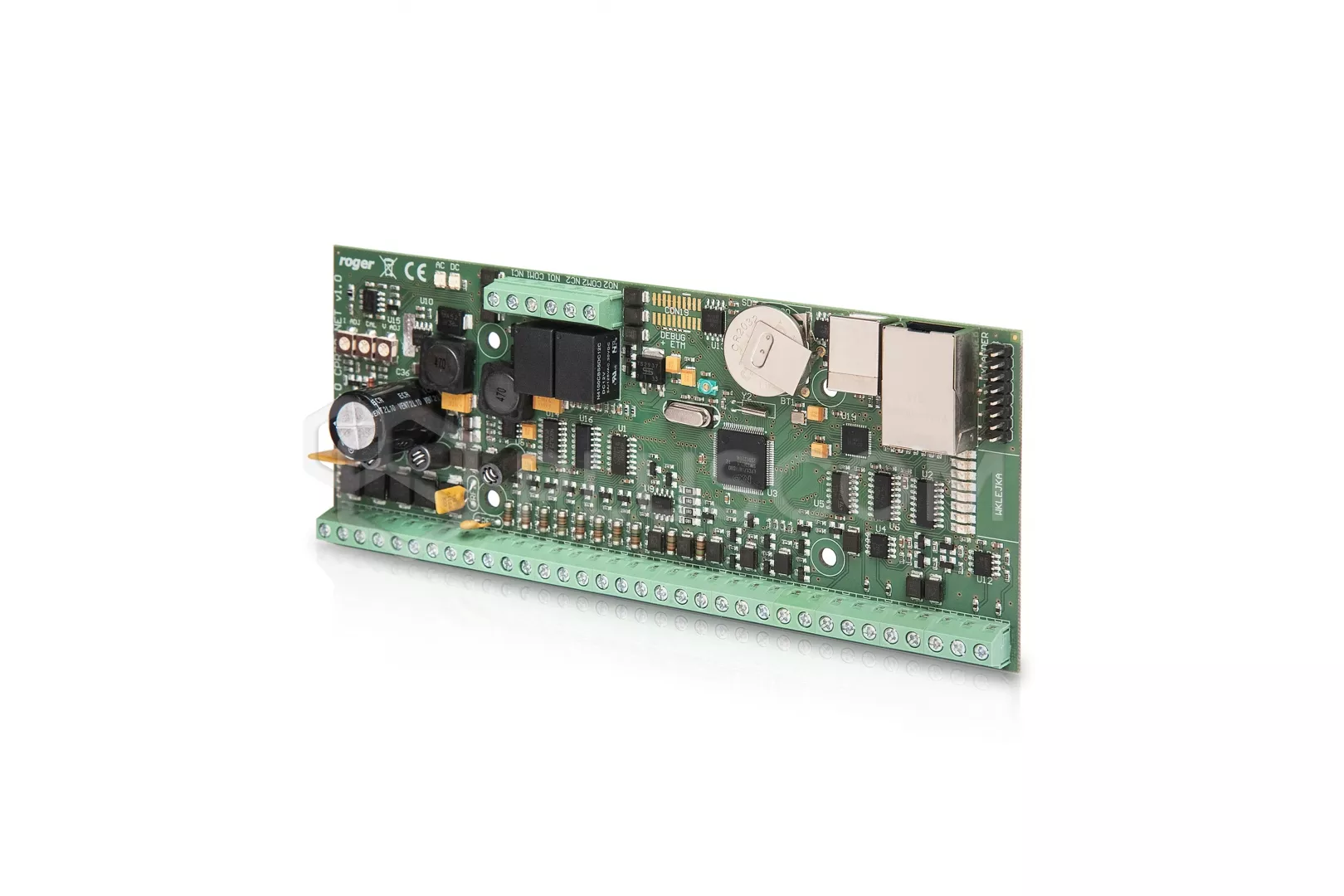

Roger MC16-HRC-1 Hotel Room Access Controller for 1 door
The MC16-HRC hotel room access controller is a variation of the MC16-PAC
standard access controller, in which additional functions related to hotel room
management have been made available. MC16-HRC provides room management in
cooperation with dedicated terminals and I/O expansions, in particular with a
corridor (room entry) reader (MCT82M-IO-HR or MCT82M-IO-HR-F), a card holder
(MCT82M-IO-CH or MCT86M-IO-CH-HR) and touch type function key panels
(MCT82-FK-HR).
The system enables control and signalling of following services: Buffet,
Baggage, Cleaning, Help, Service, Do Not Disturb and statuses: Check-in and
Guest in a room. Signalling of the above along with room automation states can
be monitored on an ongoing basis from the VISO management program and signalled
on LED indicators and output lines. The MCT82M-BK-HR corridor reader has four
programmable LED and a door bell button. These LEDs are usually used to signal
the status of a room and services: Cleaning and Do Not Disturb. The bell may be
signalled on the external chime or the internal loudspeaker of the terminal
installed inside the room (e.g. card holder). The system recognizes the code of
the card inserted in the card holder and, depending on its authorisations,
switches on the electrical power supply and other devices or systems available
in the room (e.g. air-conditioning). Function buttons on touch panels are
usually used to control hotel services and lighting. Any combination of
lighting (the so-called light scene) can be controlled from the function touch
panels, buttons connected to the controller inputs, system managing software or
by using a card with appropriate authorizations. Control of room automation,
including lighting, can be concurrently carried out from multiple places and
using a variety of methods. The MC16-HRC controller is offered in 4 versions,
which allow for servicing from 1 to 4 rooms. MCT series terminals intended for
installation in a room are also available in a flush-mounted version with a
glass front panel, which guarantees high durability and elegant aesthetics.
Due to the security requirements, the devices of the RACS 5 system used in
hotels are offered only in the versions witch support of encrypted memory
sectors of the MIFARE proximity card. The MC16-HRC controller uses the same
electronic module as the MC16 access controller and offers the same hardware
expansion options.
PARAMETERS:
- access doors: 1
- automation nodes: 4
- input lines: 8
- output lines: 16
- access points: 2
- access terminals: 4
- access zones: 2
- alarm zones: 2
- power supplies: 2
- local commands: 2
- function keys: 12
- identifiers: 8192
- transition to login point: 1
Roger MC16-HRC-1 Hotel Room Access Controller
TECHNICAL DATA
- supply voltage:
-
- 18VAC (17-22VAC)
- 12VDC(10-15VDC)
- 24VDC (22-26VDC)
- current consumption: 100mA with 18VAC power supply (without output load
AUX / TML)
- Distances
-
- 1200m for RS485
- 150m for and RACS CLK/DTA and Wiegand
- IP20
- Environmental class: I
- temperature: +5°C to +40°C
- case dimensions: 72x175x30mm
- weight; 200g
The license file, which defines the software limitations, is pre-loaded on
to the memory card supplied with the device.
