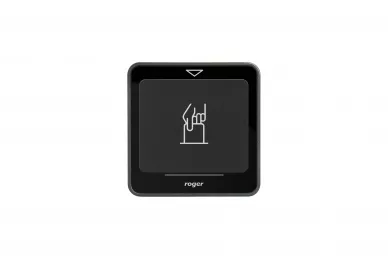

Roger MCT82M-IO-CH Access terminal with card holder

186,32 EUR including 23.00% VAT
Product code: #22406
Manufacturer: Roger
  • MIFARE Ultralight/Classic/DESFire/Plus card reader
  • Card holder
  • Bicolour LED line
  • Onboard I/Os including relay output
  • Surface type enclosure
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MFC-2 MIFARE 1K ISO Proximity Card Roger MFC-1 MIFARE Ultralight ISO Proximity Card Roger RUD-1 Portable USB-RS485 communication interface Roger MC16-HRC-4 Hotel Room Access Controller Roger MC16-HRC-1 Hotel Room Access Controller Roger MFC-4 MIFARE DESFire EV1 2K ISO Proximity Card Roger MFC-3 MIFARE 4K ISO Proximity Card

Roger MCT82M-IO-CH Proximity Reader MIFARE with card holder


The MCT82M-IO-CH is an access terminal with card holder dedicated to RACS 5 system. The device enables identification of users by 13,56 MHz MIFARE Ultralight/Classic/Plus/DESFire proximity cards. The terminal is mainly used as intelligent electrical switch with card holder and it can be used to control power supply of a hotel room, machine or device

The terminal offers 3 general purpose parametric inputs of NO, NC, 3EOL/DW/NO and 3EOL/DW/NC type and 1 input internally connected to tamper contact. Input types and electric parameters such as response time and parametric resistors are defined within low level configuration (RogerVDM). Input functions are assigned within high level configuration (VISO). Multiple functions can be assigned to the same input at the same time.

The terminal requires power supply voltage in range of 11-15VDC. It can be supplied from MCX2D/MCX4D expander of MC16-PAC-KIT, from MC16 access controller (e.g. TML output) or from dedicated power supply unit.

The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115.

FEATURES
  • RACS 5 system access terminal with card holder
  • 13,56 MHz MIFARE Ultralight/Classic/DESFire/Plus proximity cards
  • LED indicator
  • Buzzer
  • 3 parametric (EOL) inputs
  • 2 transistor outputs
  • 1 relay output
  • RS485 interface
  • Tamper protection
  • Surface type enclosure
The terminal is equipped with bicolour (red/green) LED indicator which is used to signal presence of authorised card in card holder and it can be additionally programmed with other available functions within high level configuration (VISO).

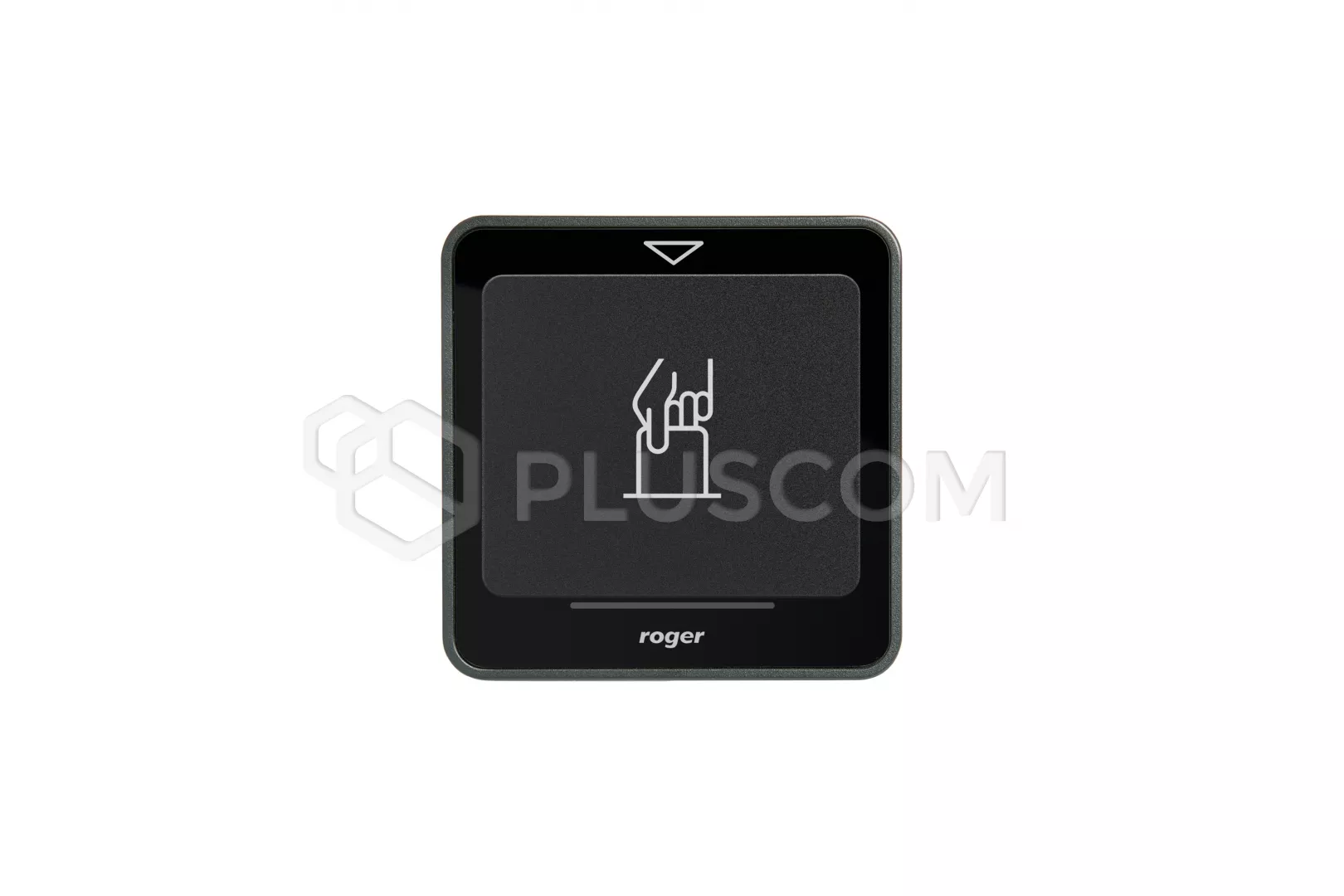

Roger MCT82M-IO-CH Access terminal with card holder

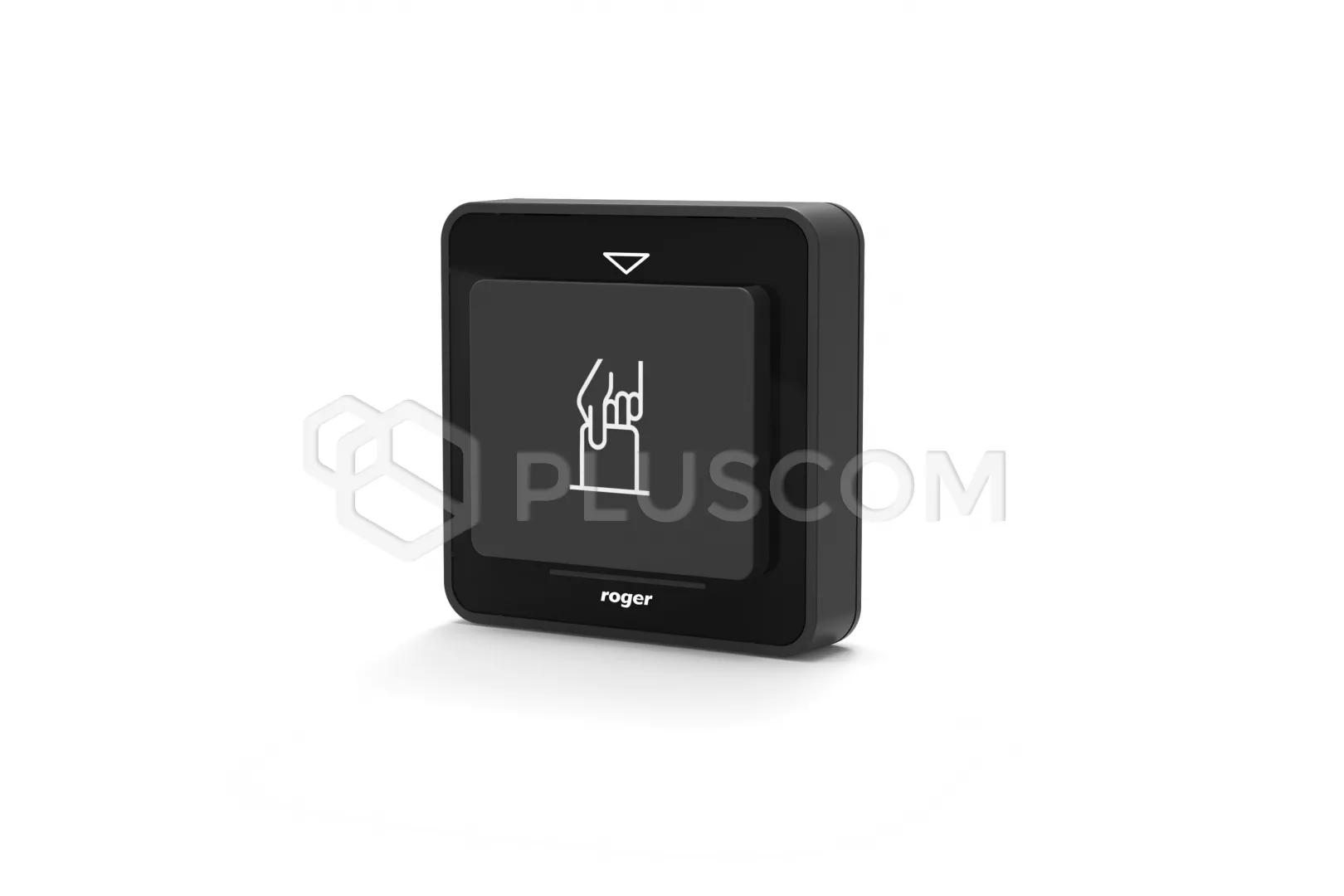

Roger MCT82M-IO-CH Access terminal with card holder


TECHNICAL PARAMETERS
  • supply voltage:
    • nominal 12VDC
    • min./max. range 10-15VDC
  • average current consumption: 60mA
  • proximity cards: 13,56 MHz MIFARE Ultralight/Classic
  • reading range:
    • up to 7 cm for MIFARE Ultralight/Classic cards
    • up to 4 cm for MIFARE DESFire/Plus
  • Distance: 1200m maximal cable length for RS485 bus between controller and reader
  • environment class: II
  • IP41
  • working temperature: -10°C ~ +50°C
  • dimensions: 85x85x27mm
  • weight: approx. 100g
