Roger ME-17 Metal enclosure

89,05 EUR including 23.00% VAT
Product code: #22428
Manufacturer: Roger
  • For RACS 5 modules and devices
  • Place on the battery 12V/17Ah
  • DIN rail 2 x 300mm
  • Dimensions: 395 x 300 x 90mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Battery 12V 18Ah CJ12V-18 12V 17Ah battery GP12170 Pulsar TRP 40VA Transformer AWT150 Battery 12V 18Ah CS12V-18 Mean Well LRS-35-12 Switching power supply Roger MCX16-AP-8 I/O Expander with APERIO interface Roger MC16-EVC-32 Conventional Elevator Access Controller Roger MCX16-AP-4 I/O Expander with APERIO interface Roger MC16-EVC-16 Conventional Elevator Access Controller Roger MCX16-AP-2 I/O Expander with APERIO interface

Roger ME-17 Metal enclosure

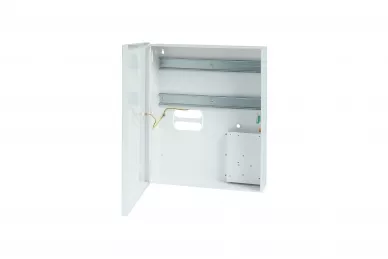

ME-17 metal enclosure is dedicated to installation of RACS 5 modules and devices which require DIN rail and 17Ah backup battery. The enclosure is equipped with two DIN rails, tamper contact and mounting bracket for PS2D/PS4D/PS8D (Roger) power supply units. The enclosure front panel is attached with screws. ME-17 is made of white powder coated stainless metal sheet.
Roger ME-17 Metal enclosure

Roger ME-17 Metal enclosure


SPECIFICATIONS:
  • Tamper protection: NO/NC; 50mA/50VDC
  • DIN rail: 2 x 300mm
  • Metal sheet: DC01; 0,7mm; anti-corrosion protection
  • Colour Anthracite: white RAL9003
  • Battery Space: 17Ah battery
  • temperature: -10°C to +40°C
  • IP code: IP20
  • Internal dimensions: 395 x 300 x 90mm
  • Weight: 3.1 kg
Download
Datasheet 0.19 MB
CE Declaration 0.13 MB
Operating Manual 0.38 MB
