Aco I/O MINI Relay module of additional inputs and outputs

40,17 EUR including 23.00% VAT
Product code: #13572
Manufacturer: ACO
  • 1x relay output NO/NC
  • Installation inside the panel
  • Configuration using software for control panel

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco FAM-P-1NPACC NT Digital door entry panel with 1 button and RFID reader Aco FAM-P-2NPZSACC NT Two-family digital door entry panel with keypad and RFID reader Aco FAM-PV-1NPZSACC Video door entry panel with code lock and 1 button and RFID reader Aco FAM-PV-6NPACC Video door entry panel with 6 buttons and RFID reader Aco FAM-PV-2NPZSACC Video door entry panel with code lock and 2 buttons and RFID reader

I/O MINI Extension module to control home automation and external devices

The module enables control of external devices and home automation for e.g. garage door, barrier, light, blind rollers. It extends the functionality with one relay NO and NC outputs.
In selected compatible models this module can be mounted directly in the frame or back box.
The module is compatible with all digital system from FAMILIO P/PV groups.

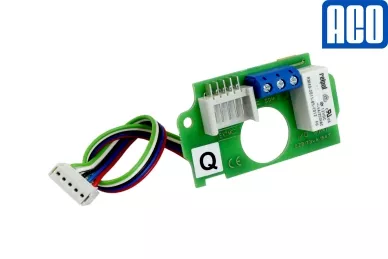

I/O MINI Relay outputs, EXTMOD connector:

I/O MINI Relay outputs, EXTMOD connector:

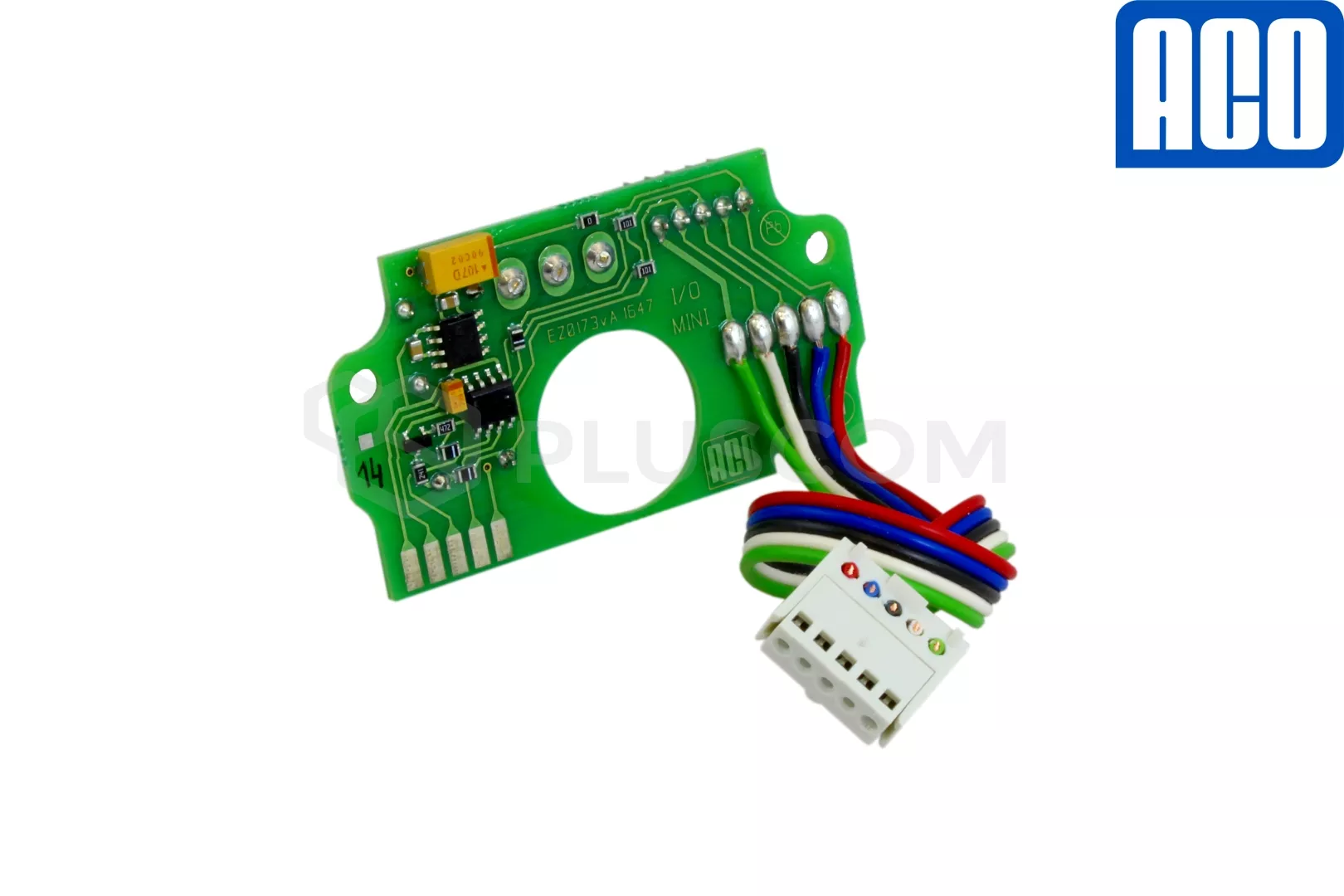

I/O MINI Electronic board:

I/O MINI Electronic board:


TECHNICAL PARAMETERS:
  • Power supply: from central/panel: DC 12-15V
  • Standby power consumption: ~0,06W
  • Outputs:
    • screw connectors ARK
      • 1x NO/NC relay, max. 2A/30V DC
      • 1x connector EXTMOD
  • Inputs:
    • 1x connector EXTMOD
  • Dimensions: 34x61x16mm

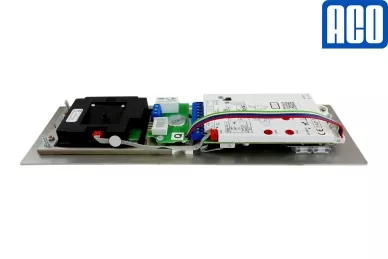

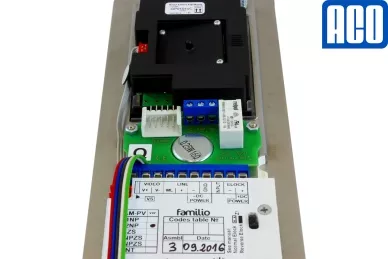

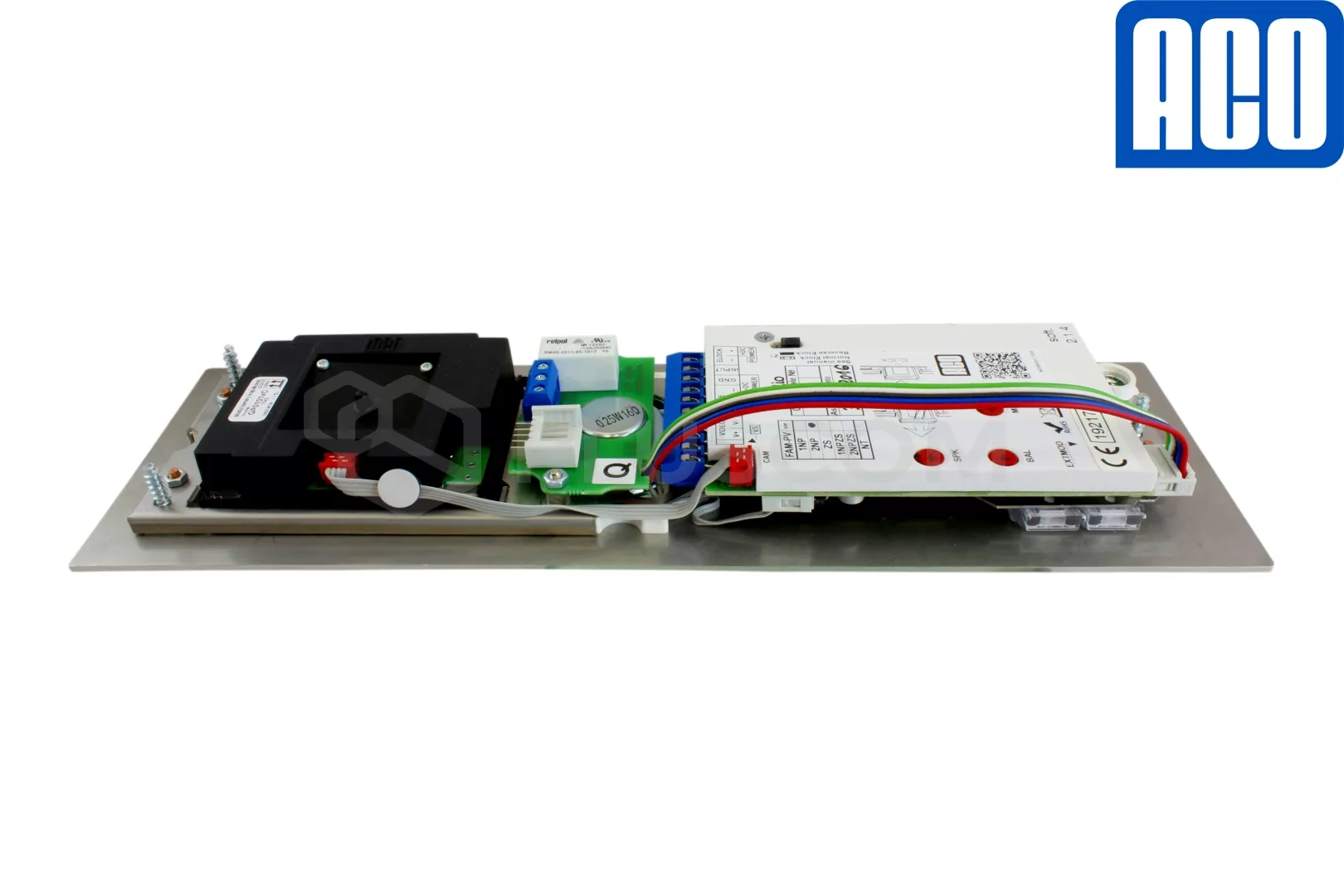

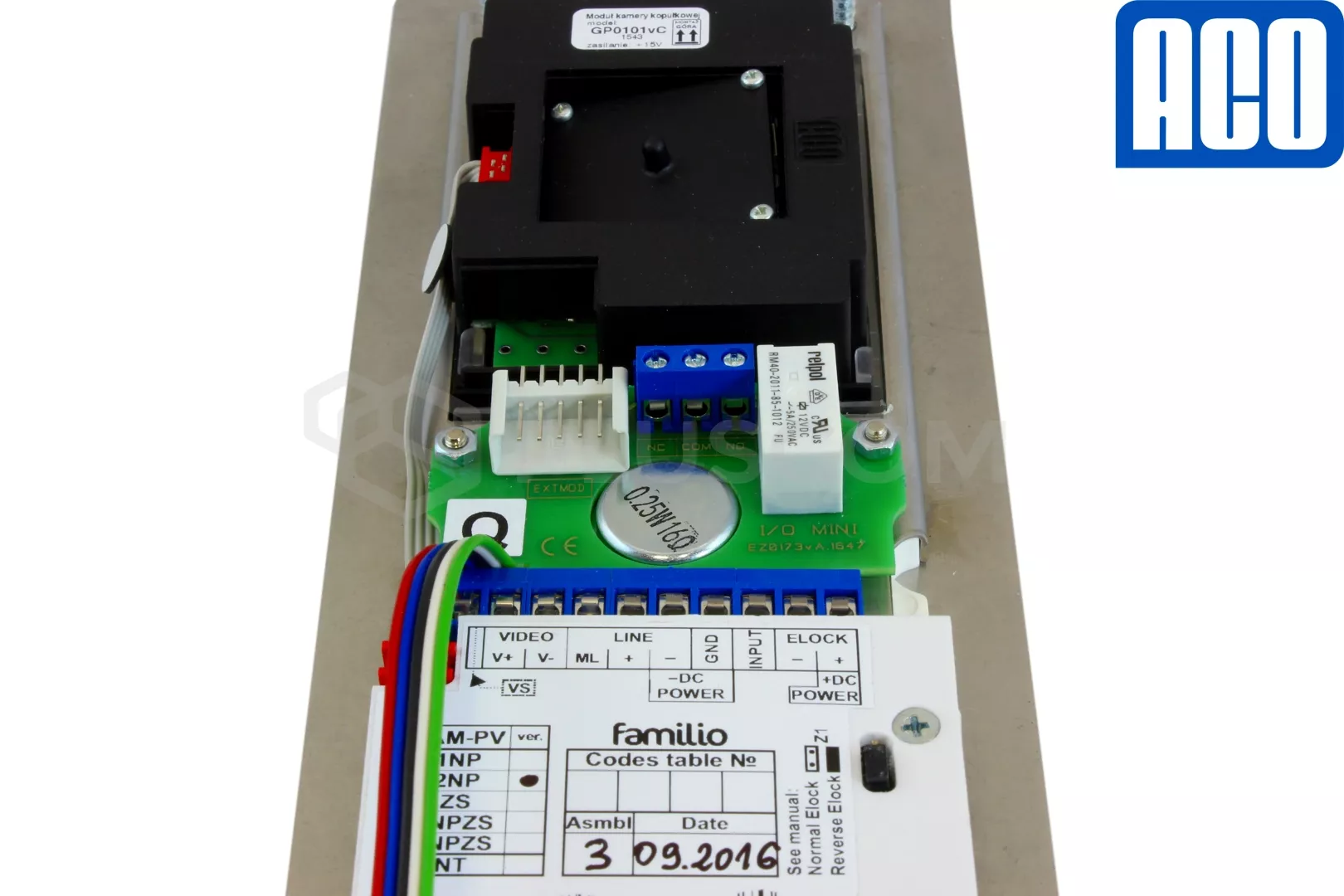

I/O MINI mounted in Familio PV panel:

I/O MINI mounted in Familio PV panel:

I/O MINI mounted in Familio PV panel:

I/O MINI mounted in Familio PV panel:


Specification
Stand-by power consumption: 0,06W
Inputs:
1 x EXTMOD
Outputs:
1 x ARK
Supply voltage: 12 - 15V DC
Dimensions: 34 x 61 x 16mm
