Nice TITAN 6024HS Base set

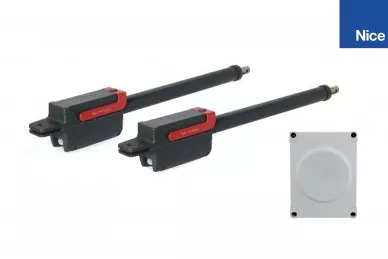

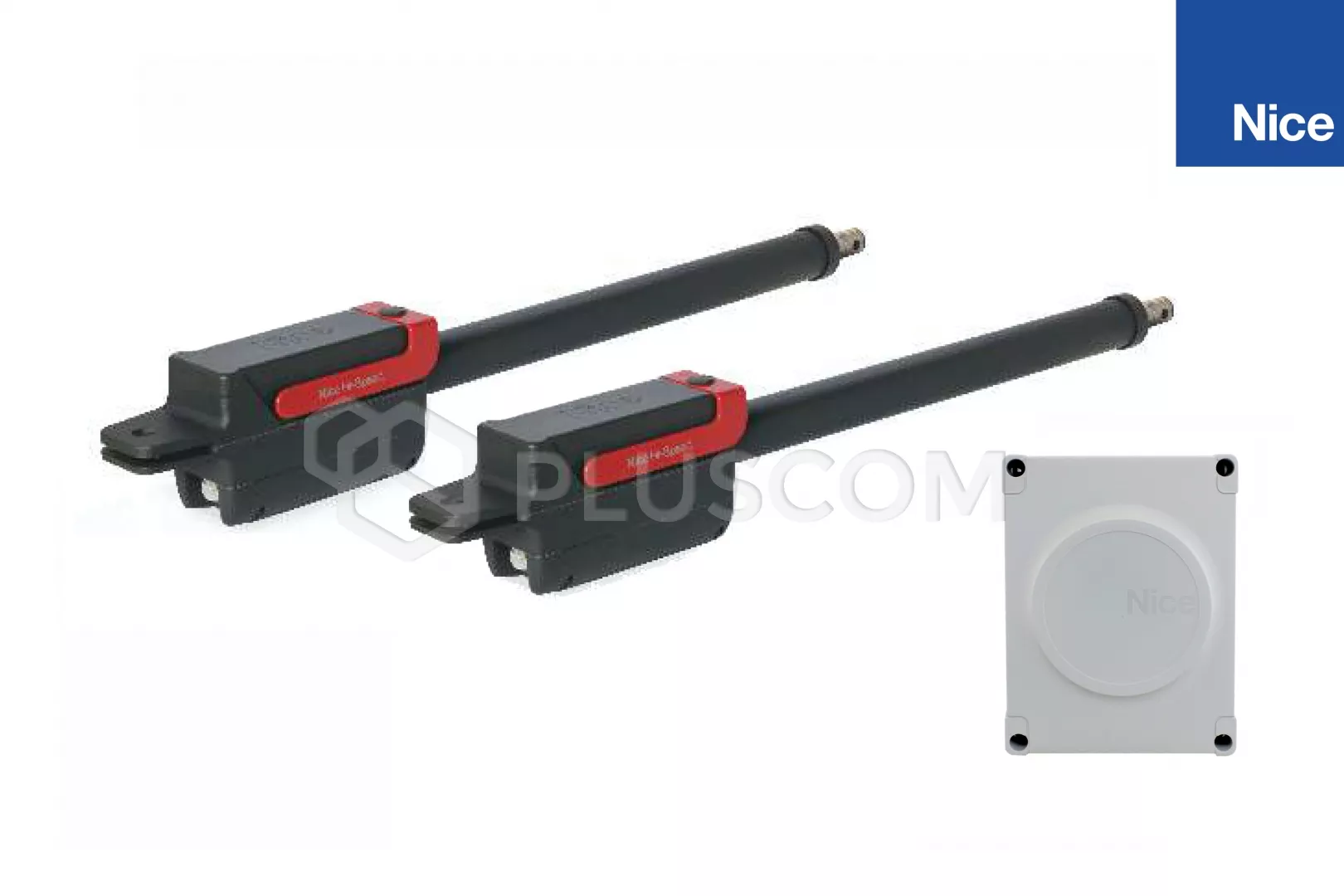

Nice Titan 6024HS Telescopic actuator for gate leaf up to 6m/450kg witch MC824HR10 control panel HI-SPEED version

The magnetic encoder ensures the safeguard of set values over time and precise obstacle detection. The motor can be installed in the bottom part of the gate leaf, at a distance of at least 110 mm from the ground.
The electromechanical gear motor is practical and safe. Easy convenient key release located in the top part of the motor, allowing the gate leaves to be opened and closed manually in the event of a blackout.

The work of the actuators is controlled by the MC824HR10 control panel, which implements a number of useful ones functions:

• controlling the operation of two 24V actuators with an encoder
• manual, semi-automatic, automatic operation
• SM type connector for plug-in radio receivers
• IBT4N connector for connecting BusT4 devices
• BLUEBUS technology
• auto programming during the first programming the control panel automatically determines and memorises the end positions of the gate
• gentle start and release at closing
• regulation of the speed of the actuators
• function of partial opening of the gate - wicket
• possibility of connecting the PS124 battery thanks to which the gate will open even when the mains power supply is disconnected
• possibility of connection to the '' Solemyo '' solar power system
• service of an electric lock

CONTROL UNIT PARAMETERS:

• power supply of the control panel: 230V AC
• rated power consumed from the 200W
• degree of protection: IP54
• working temperature -20 ° C ... + 50 ° C
• dimensions: 310x232x122mm
• Weight: 4.1 kg

ACTUATOR PARAMETERS:

• motor power supply: 24V
• current load: max 7A
• power consumption: 150W

• speed: 2.7cm/s
• working stroke: 680mm
• strength: max 1900N
• intensity work: continuous cycle


• operating temperature: -20°C...+ 55°C
• degree of protection: IP54
• weight: 9kg
