Nice TO5024HS actuator for swing gates up to 5m, 400kg/24V

602,24 EUR including 22.00% VAT
Product code: #7697
Manufacturer: Nice
  • maximum leaf width 5m
  • maximum leaf weight 400kg
  • 24V motor
  • built-in encoder
  • HI-SPEED version

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ELDC LED flashing signal light 12/24V Photocell Nice EPMB ERA Medium BLUEBUS Nice ON3EBD 3-channel remote two-way Nice IT4WIFI BusT4 interface - Wi-Fi Nice OVIEW/A R01 Display programmer +IBT4N interface Photocell Nice FT210B adjustable, wireless transmitter, BLUEBUS Nice OXIBD 4-channels receiver two-way Nice MC824H R10 BLUEBUS control unit Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal

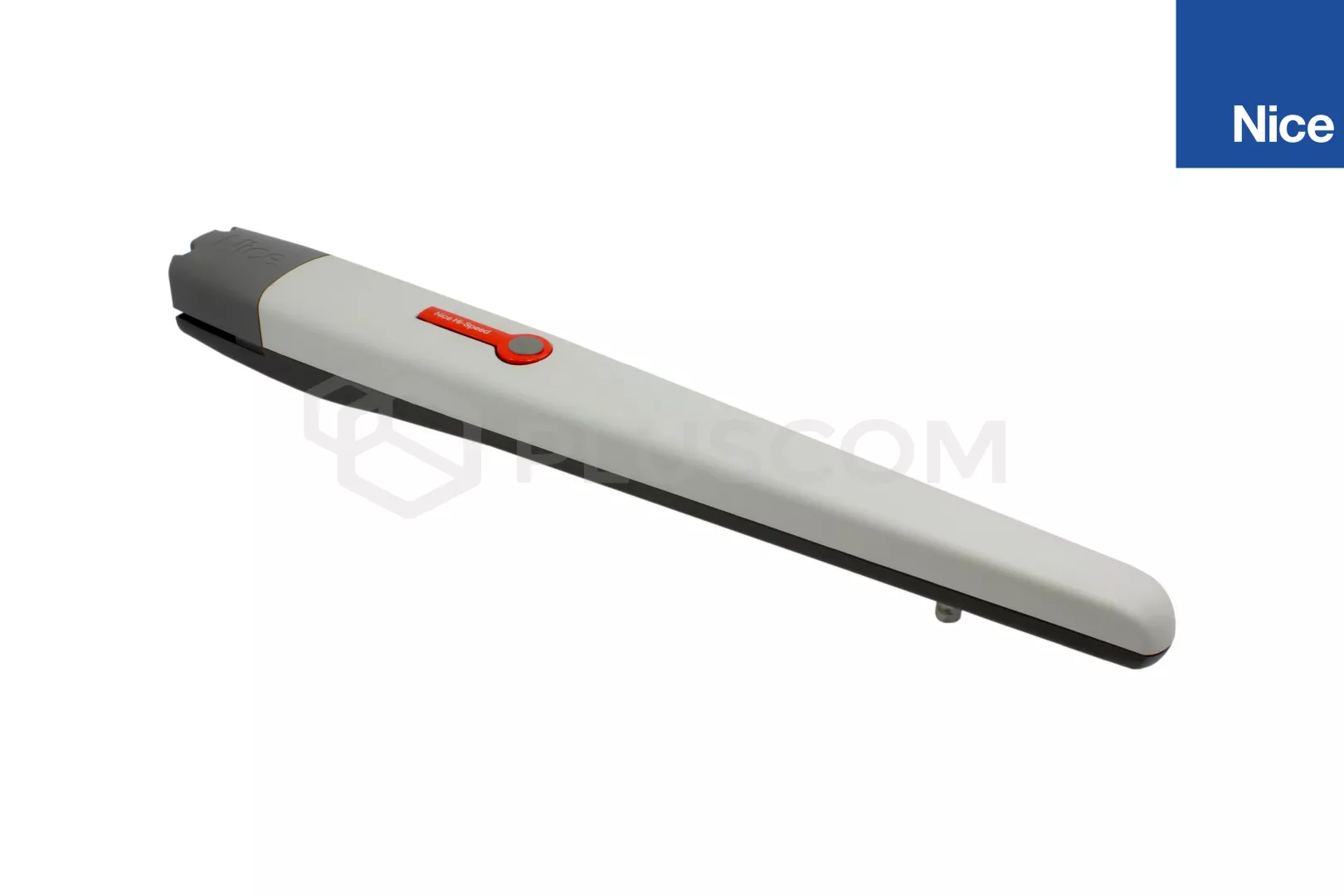

Nice TO5024HS 24V TOONA For swing gates with leaves up to 5m


Electromechanical gear motor surface mounted powered at 24V DC with magnetic encoder.
Ideal for industrial installations, designed for intensive use.

RELIABLE: durability thanks to the housing, made up of two tough aluminium shells with polyester paint finish more resistant to atmospheric agents

Internal moving parts completely in steel, light alloys and technopolymers

SILIENT: patented layout of internal parts and lead nut in bronze

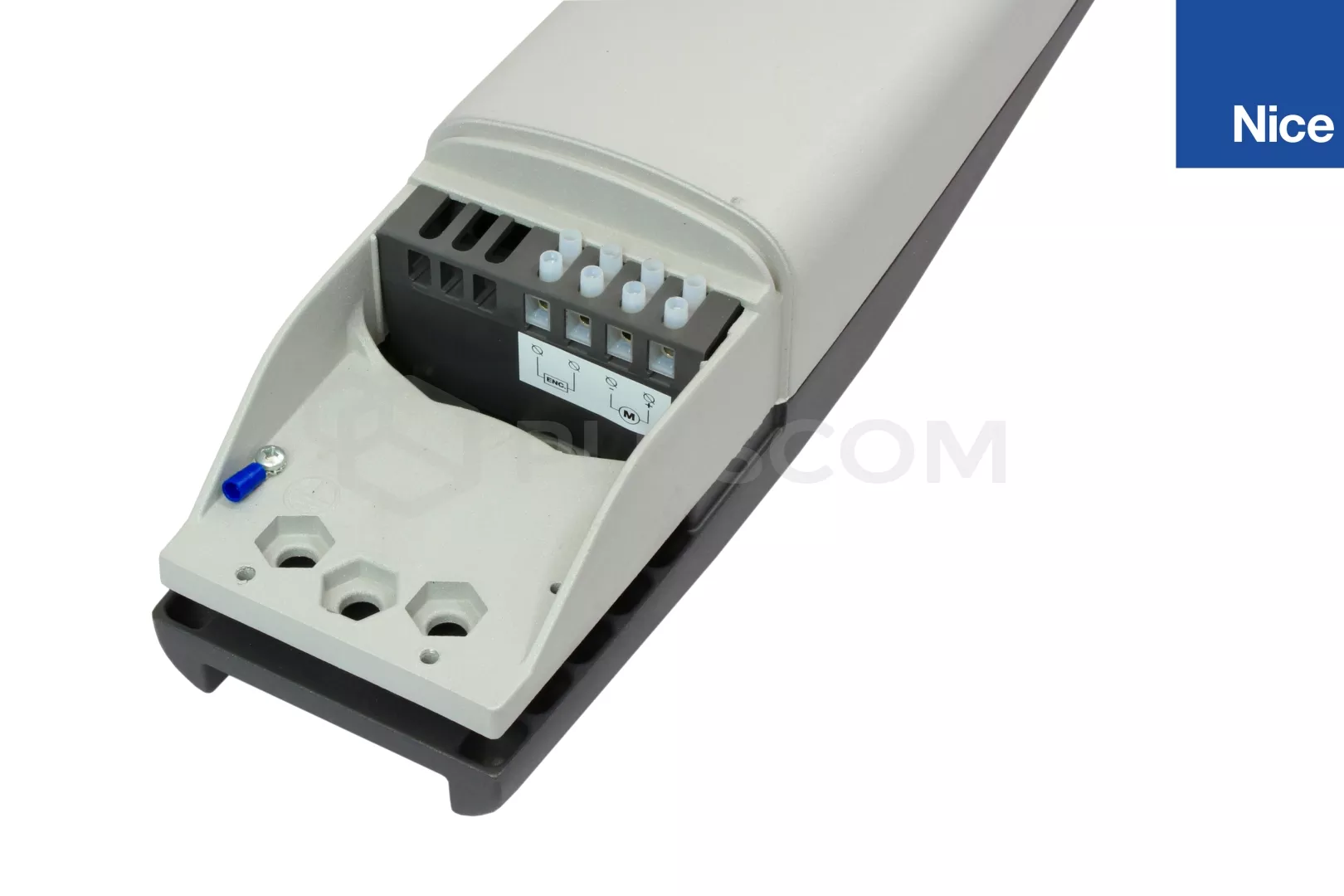

Generously sized and practical connection compartment:

rapid and easy access from above to internal parts located in the upper section of the motor.

SPECIFICATIONS:
  • motor power supply: 24V
  • current load: max 5A (nominaly 2,5A)
  • power consumption: 120W
  • speed: 0,025m/s
  • working stroke: 505mm
  • strength: max 1800N
  • intensity work: 75 cycles/h
  • operating temperature: -20°C...+ 50°C
  • degree of protection: IP44
  • weight: 7,5kg
To control the operation of the actuator is recommended control panel:
  • Mindy MC824H with BLUEBUS technology

The item is available in the following sets:

Nice TO5024HS dual swing gate kit for gates up to 5m, 400kg/24V Nice TO5024HS dual swing gate kit for gates up to 5m, 400kg/24V
Nice TOONA 5024HS Base set Nice TOONA 5024HS Base set
