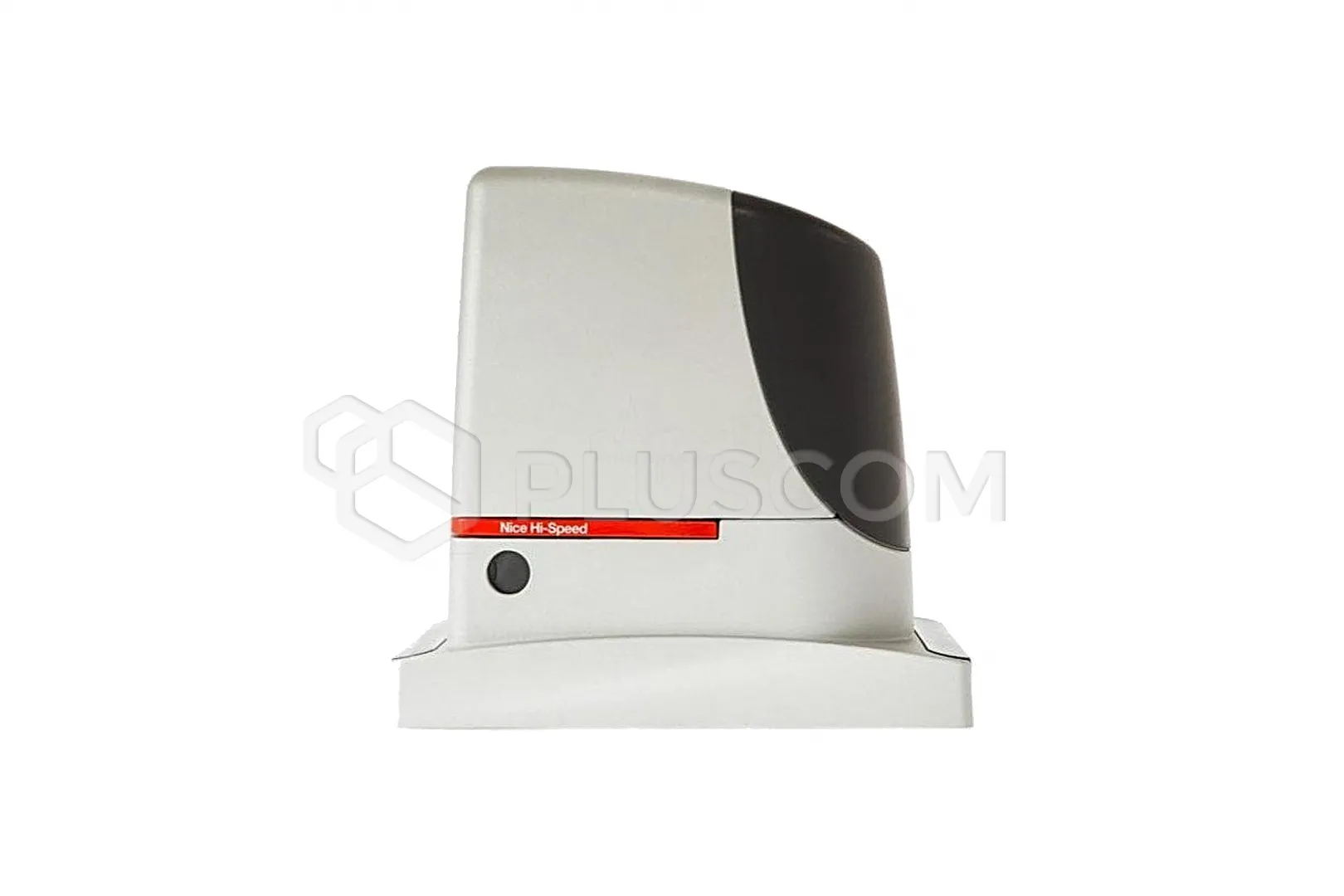

Nice RUN 1200HS gear motor with built-in control
unit
DRIVE PURPOSE:
RUN 1200HS The electromechanical actuator enables the automation of
sliding gates with:
- up to 1200kg
- maximum number of cycles per hour: 15
|
Nice Run 1200HS Gear motor with built-in control unit HI-SPEED
|
RUN 1200HS -
HI-SPEED is a version of the drive in which
the travel speed is
higher by 40-60% from the standard product.
Maximum linear
speed 19m/min causes that a gate with a width of 7m will be opened in
approx 18s.
The most important advantages of the drive and the set
include:
user-friendly: thanks to the Nice BlueBUS technology, the
control unit can be connected to up to 7 couples of photocells, control,
security and signalling devices, using two wires only
Practical: the control unit and PS524 battery charger (to
which two B12-B batteries should be added) can be connected by means of a
simple
Advanced: the temperature sensor adapts the motor power to the
climatic conditions and at the same time thermal cut-out; a master/slave
selection automatically synchronises two motors. This means it is possible to
automate 2-leaf sliding gates set opposite each other.
Intelligent: thanks to the obstacle detection system and
automatic programming of the working times.
Self-diagnosis by means of a
flashing light. 8 programming levels.
Safe: acceleration and deceleration can be adjusted at the
beginning and end of each opening and closing manoeuvre.
sturdy:base and release in pressure die cast with easy to open
handle.
Very quiet: gear motor on bearings.
TECHNICAL SPECIFICATIONS
ELECTRICAL DATA
power supply (Vac 50/60 Hz): 230V
absorption (A): 1,8
power (W): 700
motor power: 24V DC
PERFORMANCE DATA
speed (m/min): 19
work cycle (cycles/hour): 15
DIMENSIONAL AND GENERAL DATA
protection level (IP): 44
working temp: (°C min/max): -20...+50
dimensions (mm): 400x255x387mm
weight (kg): 24.5
