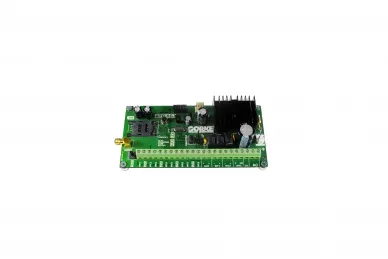

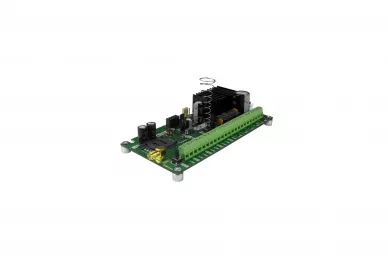

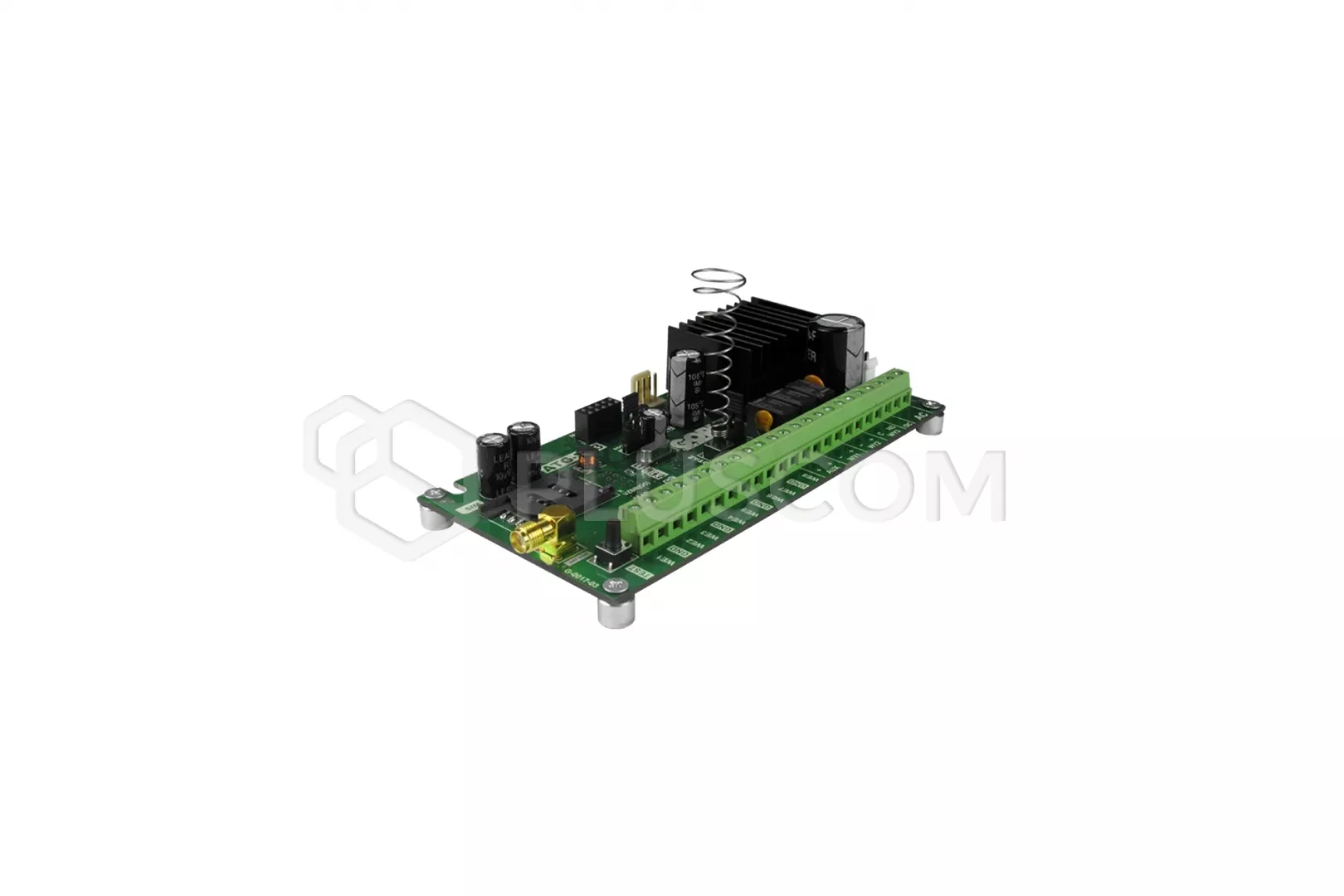

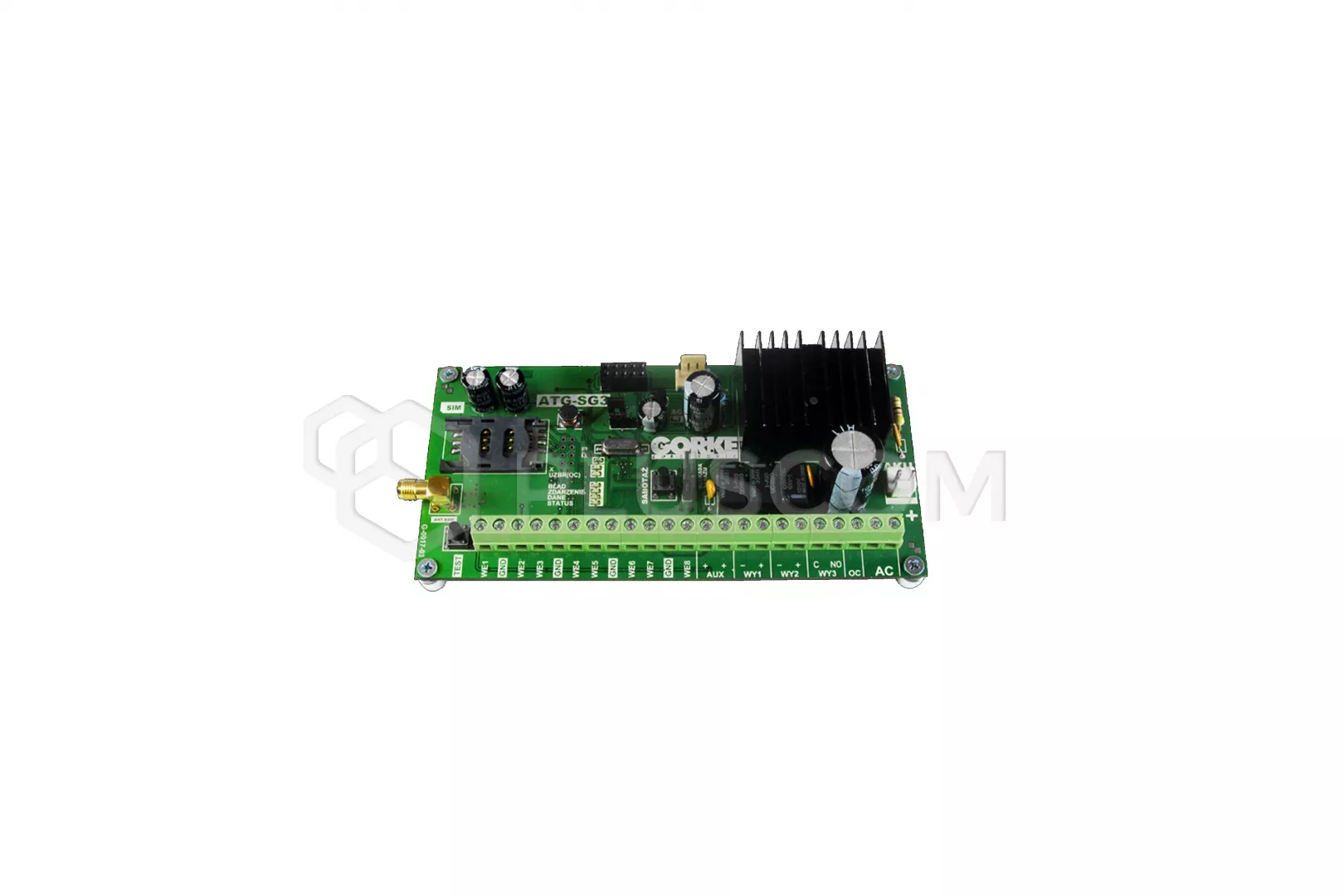

Gorke ATG-SG3 GSM central transmitter

117,36 EUR including 22.00% VAT
Product code: #25715
Manufacturer: Gorke
  • Notifications to 6 mobile phone numbers
  • Individual content for each button
  • Number of inputs: 8 (configurable as NO or NC)
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Gorke PUK-151 1-button remote control Gorke PNH 201 Button hermetic Gorke PNP-202 Panic button Gorke remote control PUK-142 Gorke ATG-SG3 GSM central transmitter Gorke RNB-101 1-key remote control Gorke PUK-121 watch SOS transmitter Gorke K-5 Cable for programming GSM transmitters

Gorke ATG-SG3 central GSM transmitter

The ATG-SG3 transmitter is a device intended for use in demanding solutions sending notifications about the occurring input states or their changes, using GSM network via SMS messages and/or CLIP signals.

The ATG-SG3 control panel works with any type of GE transmitter. Systems can include both frame series call buttons and remote controls from the Gorke offer.
The transmitter can be configured as an 8-input alarm control panel with switching on and off control via SMS commands and/or via pilots.

TECHNICAL DATA:
  • power supply: 16-18V AC / recommended 18VA
  • current consumption (standby): 70mA
  • current consumption (maximum): 300mA - impulse load - without AUX (when powered by a 12V battery)
  • number of inputs: 8 (configurable as NO or NC)
  • outputs OUT1; OUT2: 2 power outputs with common 1A overload protection
  • OUT3 output: NO type relay output (1A/30VDC contacts)
  • OC output: OC output (open collector), load capacity 100mA/35VDC
  • AUX output: 200mA – polymer fuse
  • battery charging current: 250mA max
  • low battery: < 11.2V for at least 3 minutes
  • correct battery condition: >12.0V
  • switching off the transmitter: battery voltage < 10.3V and no AC
  • battery protection reverse connection; excessive discharge
  • antenna connector: SMA
  • event buffer: 500 entries
  • supported phone numbers:
    • Monitoring station:
      • 2 numbers for sending events
      • 2 numbers for sending SMS periodic tests
      • 1 number for sending CLIP periodic tests
      • 1 number for sending copies of SMS messages from unauthorized numbers
    • Private users: 4 numbers
    • Installers: 2 numbers
    • Tester: 1 number
  • operating temperature: -10°C ÷ + 55°C
  • dimensions: 140x67x35mm (with magnetic holders)
