Gorke ATG-SG3RFset Set

159,67 EUR including 22.00% VAT
Product code: #25717
Manufacturer: Gorke
  • Set: ATG-SG3RF transmitter in a housing, power supply, 2 m cable
  • Support for up to 200 transmitters
  • Built-in radio module
  • Number of inputs: 8 (configurable as NO or NC)
  • Notifications to 6 mobile phone numbers
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Gorke PUK-151 1-button remote control Gorke PNH 201 Button hermetic Gorke PNP-202 Panic button Gorke remote control PUK-142 Gorke K-5 Cable for programming GSM transmitters Gorke ATG-SG3 GSM central transmitter Gorke RNB-101 1-key remote control Gorke PUK-121 watch SOS transmitter

Gorke ATG-SG3RFset set

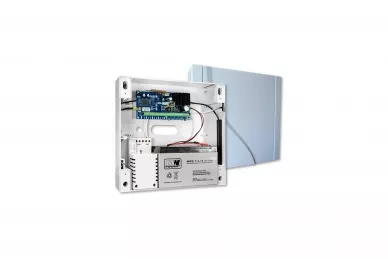

SET CONTAINS:
  • ATG-SG3RF transmitter in a housing
  • power supply
  • 2m cable with plug (220V
Gorke ATG-SG3RFset Set

Gorke ATG-SG3RFset Set
The ATG-SG3RF transmitter is a device intended for use in demanding solutions sending notifications about the occurring input states or their changes, using GSM network via SMS messages and/or CLIP signals.

The ATG-SG3RF control panel works with any type of GE transmitter. Systems can include both frame series call buttons and remote controls from the Gorke offer. ATG-SGRF supports up to 200 transmitters, and information about using the or button remote control is sent in the form of an SMS notification to 6 different telephone numbers cellular phones.
The transmitter can be configured as an 8-input alarm control panel with switching on and off control via SMS commands and/or via pilots.

TECHNICAL DATA:
  • power supply: 16-18V AC / recommended 18VA
  • current consumption (standby): 85mA
  • current consumption (maximum): 300mA - impulse load - without AUX (when powered by a 12V battery)
  • number of inputs: 8 (configurable as NO or NC)
  • outputs OUT1; OUT2: 2 power outputs with common 1A overload protection
  • OUT3 output: NO type relay output (1A/30VDC contacts)
  • OC output: OC output (open collector), load capacity 100mA/35VDC
  • AUX output: 200mA – polymer fuse
  • battery charging current: 250mA max
  • low battery: < 11.2V for at least 3 minutes
  • correct battery condition: >12.0V
  • switching off the transmitter: battery voltage < 10.3V and no AC
  • battery protection reverse connection; excessive discharge
  • antenna connector: SMA
  • event buffer: 500 entries
  • supported phone numbers:
    • Monitoring station:
      • 2 numbers for sending events
      • 2 numbers for sending SMS periodic tests
      • 1 number for sending CLIP periodic tests
      • 1 number for sending copies of SMS messages from unauthorized numbers
    • Private users: 4 numbers
    • Installers: 2 numbers
    • Tester: 1 number
  • operating temperature: -10°C ÷ + 55°C
  • dimensions: 140x67x35mm (with magnetic holders)
