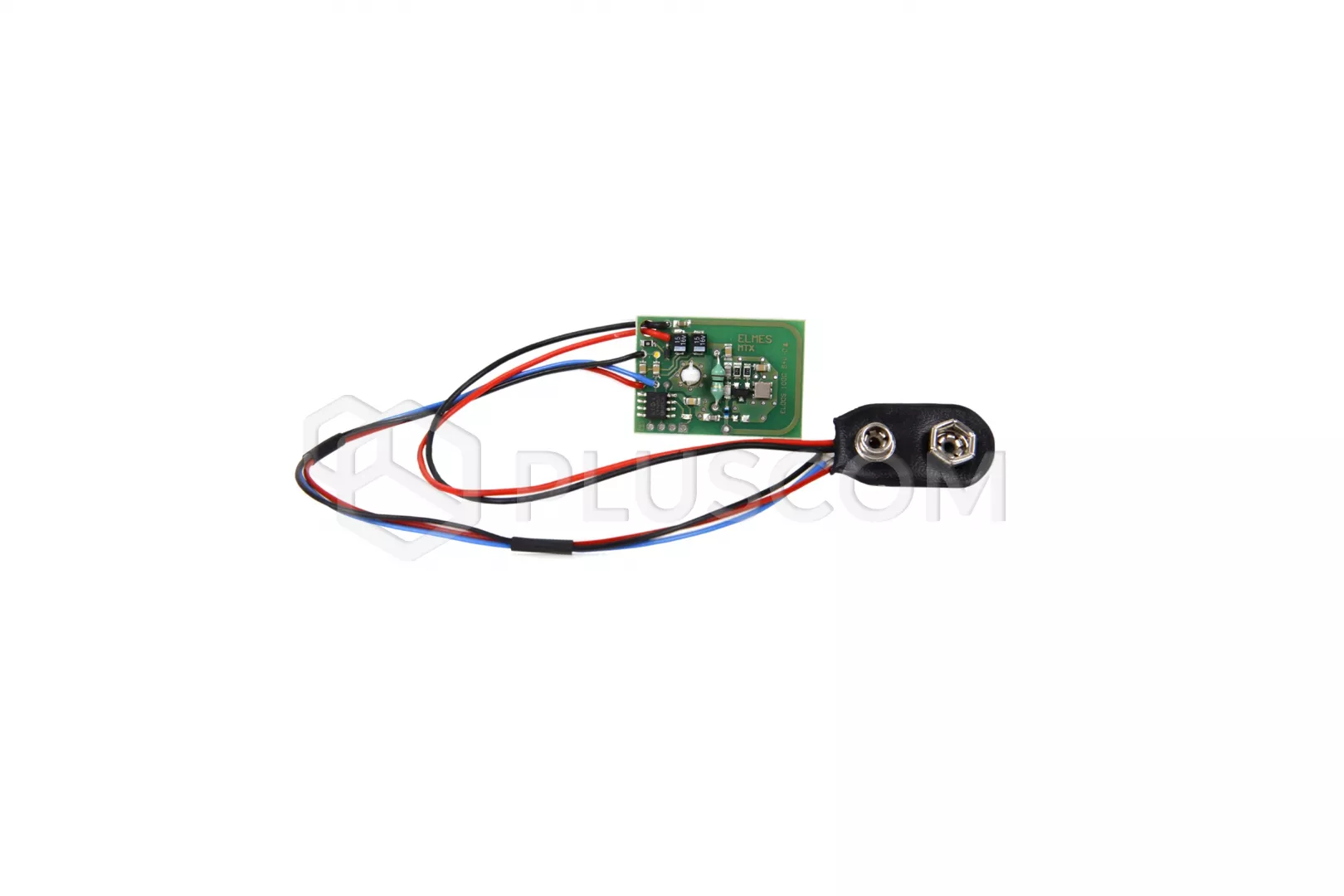

Elmes MTX2 Short/open detector

16,63 EUR including 23.00% VAT
Product code: #27242
Manufacturer: Elmes
  • Operating frequency: 433.92MHz
  • Range: up to 100m (in open areas)
  • Wired inputs triggering transmission
  • Two terminals: ground/wired
  • Power supply: 9-12V (alkaline battery)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Elmes U1HR One relay output receiver Elmes U1HS Remote control set (1-channel) Elmes STM-2K Miniature two channel wireless control set Elmes DWP24R Two relay outputs receiver Elmes DWB100HRhet Two relay outputs receiver Elmes DWP12R Two relay outputs receiver Elmes U2HR Two relay outputs receiver Elmes U2HS Remote control set (2-channel) Elmes UMB100HR-het 1-channel universal receiver

Elmes MTX2 Short circuit/open circuit detector

MTX2 are remote transmitters control for the 433.92MHz band, which works with all receivers Elmes Elektronik, (exception RP501HRhet). Its operating range in the open space is a maximum of 100 meters.

The MTX2 transmitter has two terminals - one is ground (minus the 9V battery), the second - signal.
Their short circuit causes sending a transmission corresponding to pressing the first one remote control button, and opening - the other one, or vice versa (switched with a jumper). This allows for bistable control, e.g. shorting the MTX2 inputs turns on the relay in the receiver, and opening - turns it off. This applies to cooperation with receivers: STM-2K version 2, U1H, U2H, UMB100HRhet, DWB100HRhet, DWP12 or DWP24.

The transmitter is powered by a 9V alkaline battery, but it can also be used powered by 12V DC.

SPECIFICATIONS:
  • radio transmission: rolling code
  • operating frequency: 433.92MHz
  • maximum range up to 100m in open areas
  • power supply: 9V alkaline battery
  • operating temperature range: from 0°C to +40°C
  • external dimensions: 104x30x24mm
