Elmes U1HS Remote control set (1-channel)

ELMES U1HS a single-channel remote control superheterodyne receiver

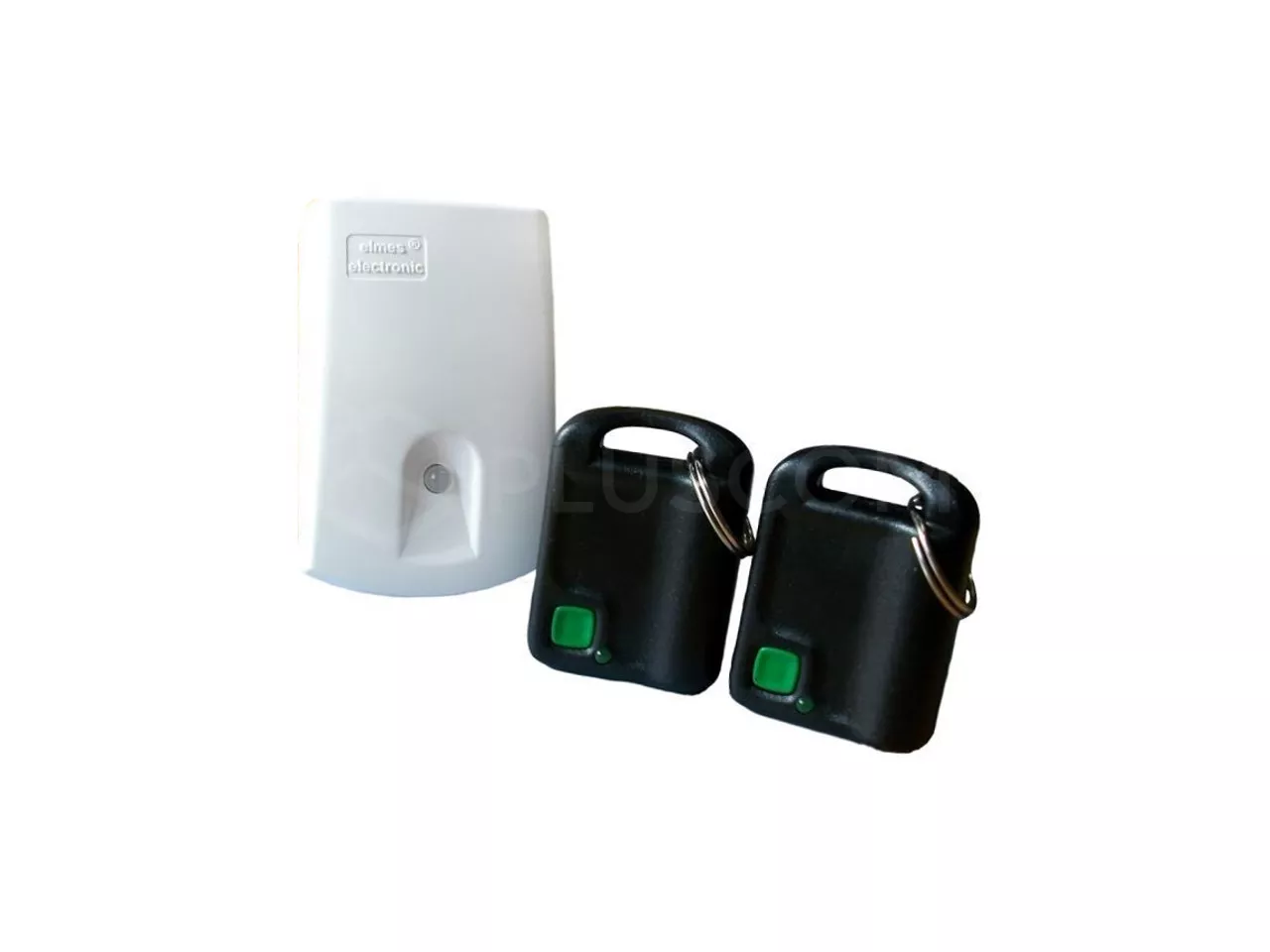

The kit consists of a receiver U1HR + 2 remotes UMB100HT. Remote use KEELOQ variable coding system. The receiver can work with 112 pilots.

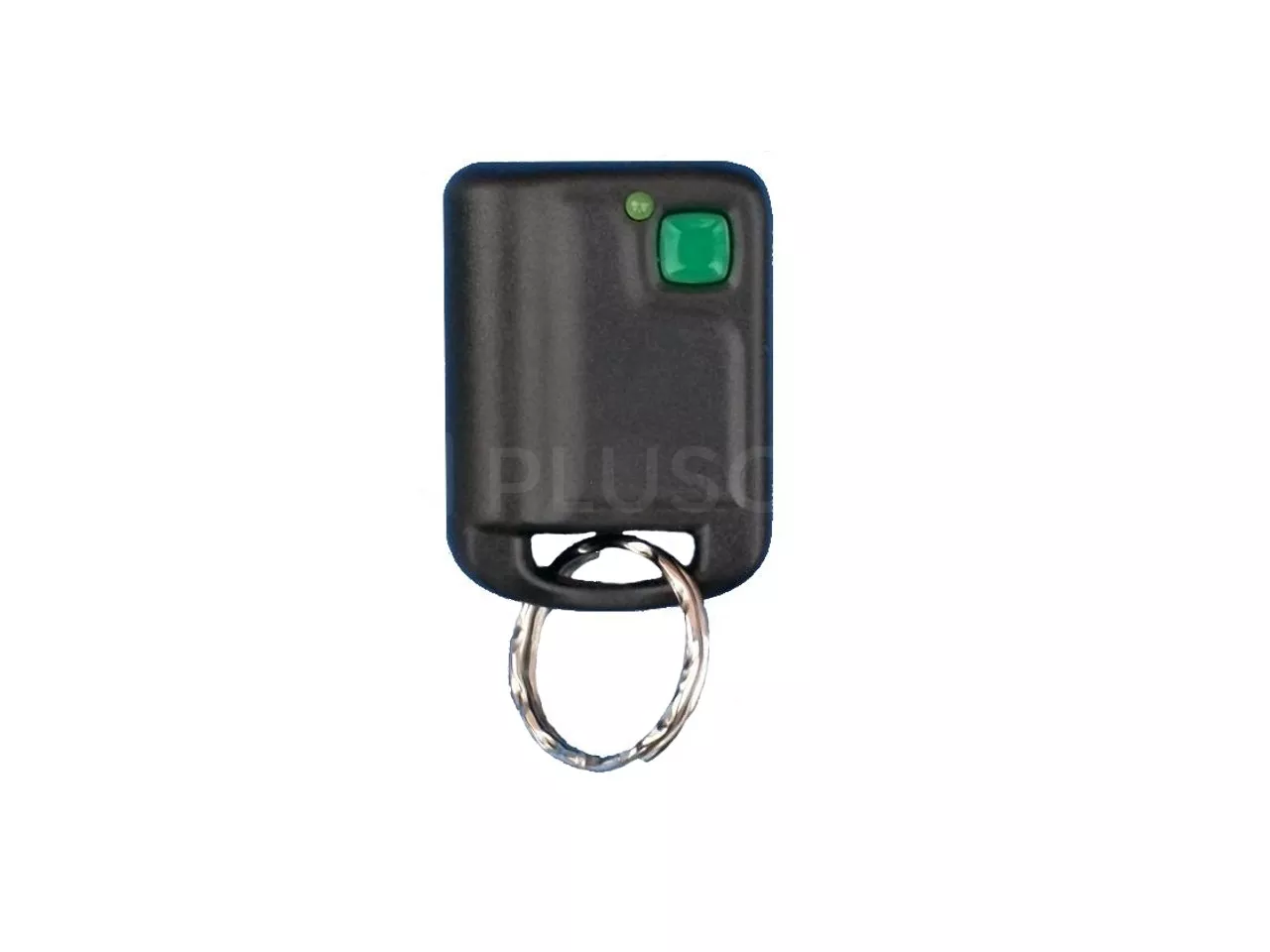

PARAMETERS REMOTE CONTROL

• 433.92 MHz operating frequency
• power 3-5mW
• size: 46x34x14mm
• power: 12V battery GP23A


KEELOQ system guarantees high safety. In this system, each press of the remote control will generate and send new code. The receiver keeps track of these changes and reacts to you-including the new code. Codes once used are not accepted. This prevents code reuse captured.

Superheterodyne receiver is characterized by high sensitivity and high resistance to radio interference. With this type of receivers it is also possible receivers work side by side without fear of mutual interference.

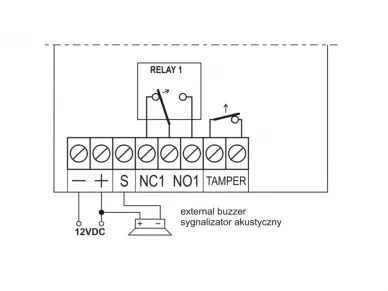

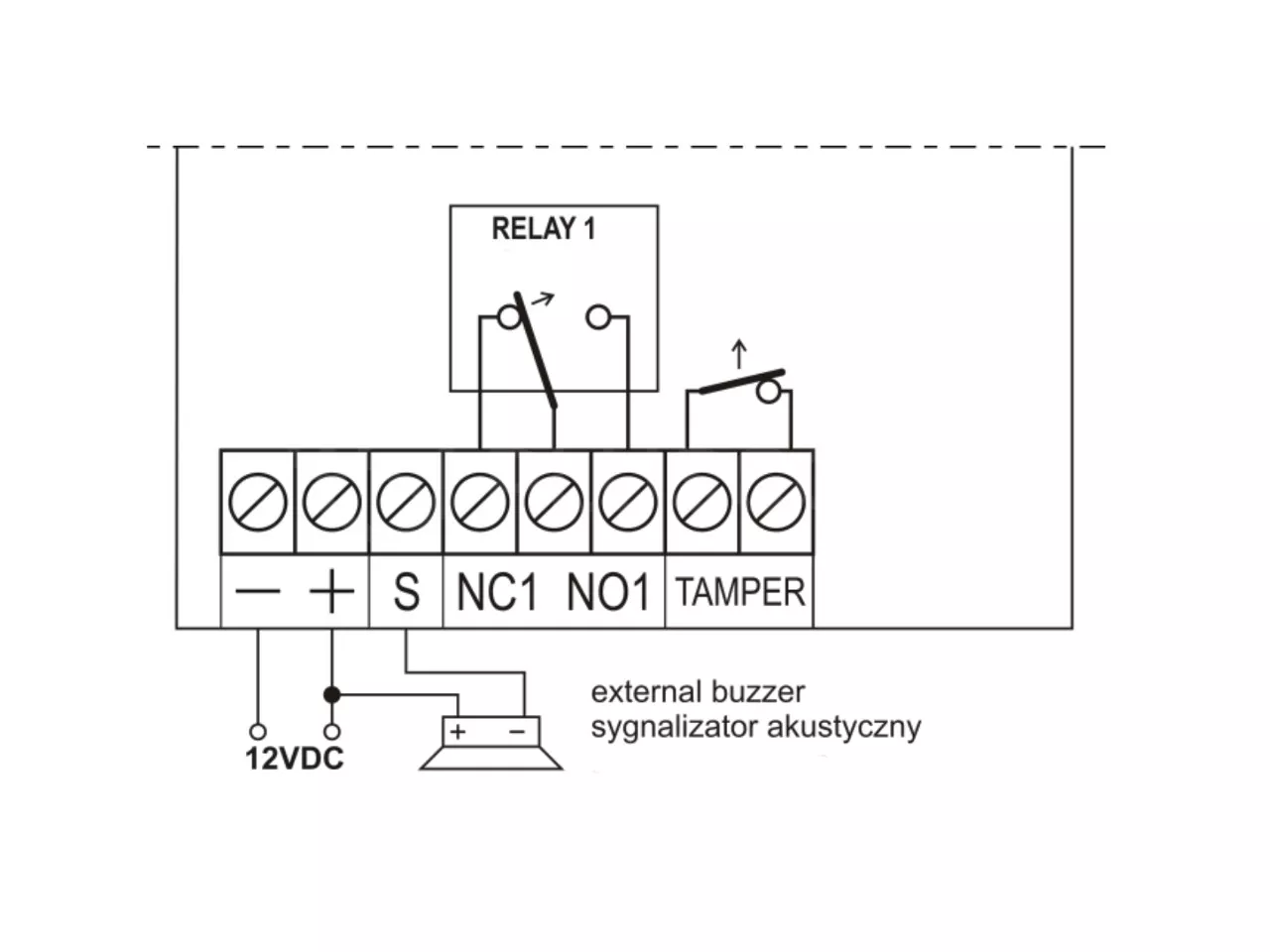

The receiver has a relay output, through which we can control other devices. To terminal block are derived 3 relay: normally open (NO) and normally closed (NC) and one common terminal.
In addition, we are signaling output open collector (s) to which you can connect an external optical or acoustic signal. About unable to activate the relay output also inform the bi-color LED placed on the receiver.

Radio receiver modes:

• by pressing the remote control output will be switched to a pre-programmed time, more pressing at a time when output is prolonged activation time
• the output can be switched on as long as it remains pressed the remote control
• press button 1 and the pilot activates the output No. 2 off button
• repeatedly pressing the remote control button alternately turn on and off output


SPECIFICATIONS:

• operating frequency: 433.92 MHz
• KEELOQ rolling code system. Microchip Corp. USA
• memory remonte controls: 112
• operating range up to 100m open space
• power supply: DC 11-17V
• operating temperature: -20°C...+55°C
• load relay output: 1A, 120VAC / 30VDC
• output operation modes:
• • monostable: ON time: from 0.25 seconds to 4 hours
  • bistable: on / off
• output S (1A / 60V) of the type "open collector"
• tamper output indicates opening the enclosure, the type of NC (compact with closed housing), used in alarm systems
• external dimensions: 24x46x73mm
