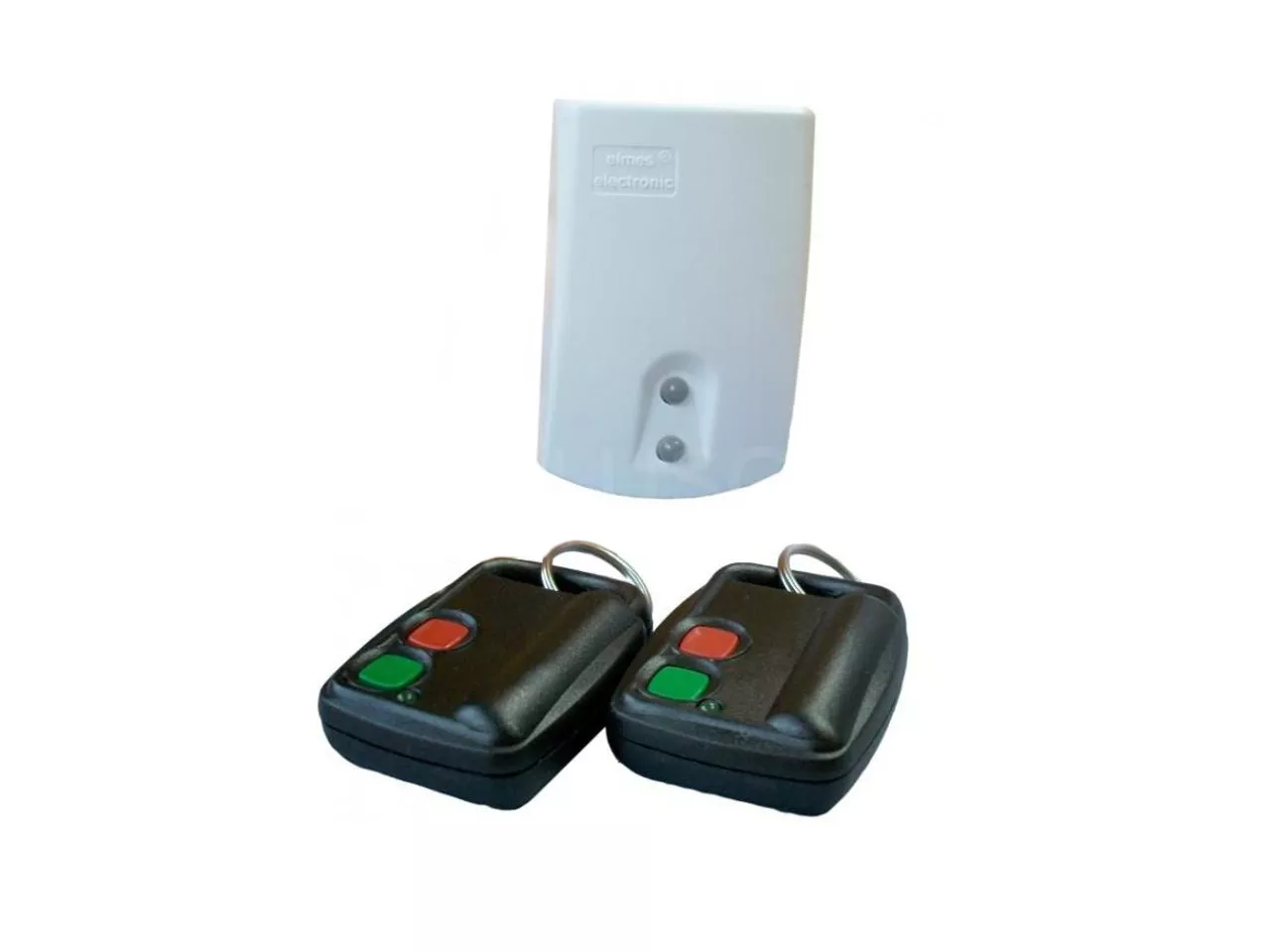

Elmes U2HS Remote control set (2-channel)

ELMES U2HS a two-channel remote control superheterodyne receiver cooperating with the pilots ELMES companies which use the KEELOQ variable coding system. The receiver can work with 104 pilots.

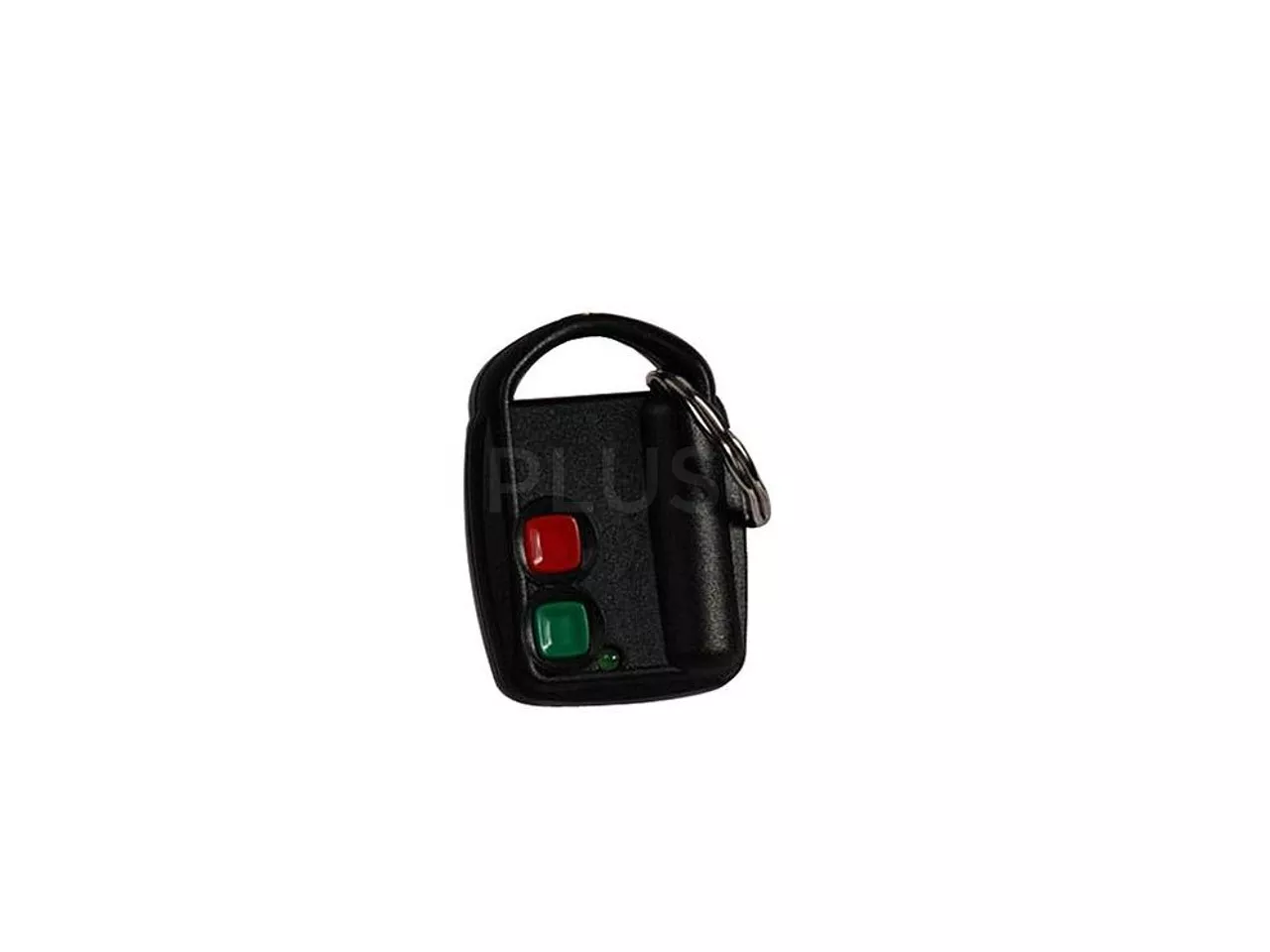

Included are two remote controls DWB100HT

PARAMETERS REMOTE CONTROL

• 433.92 MHz operating frequency
• power 3-5mW
• size: 50x37x14mm
• power supply: 12V battery GP23A


KEELOQ system guarantees high safety. In this system, each press of the remote control will generate and send new code. The receiver keeps track of these changes and reacts to you-including the new code. Codes once used are not accepted. This prevents code reuse captured.

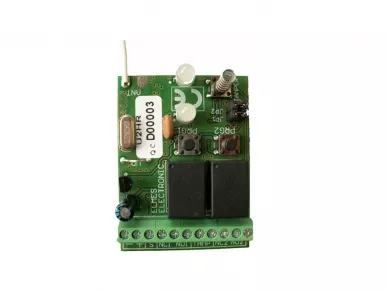

Superheterodyne receiver is characterized by high sensitivity and high resistance to radio interference. With this type of receivers it is also possible receivers work side by side without fear of mutual interference.

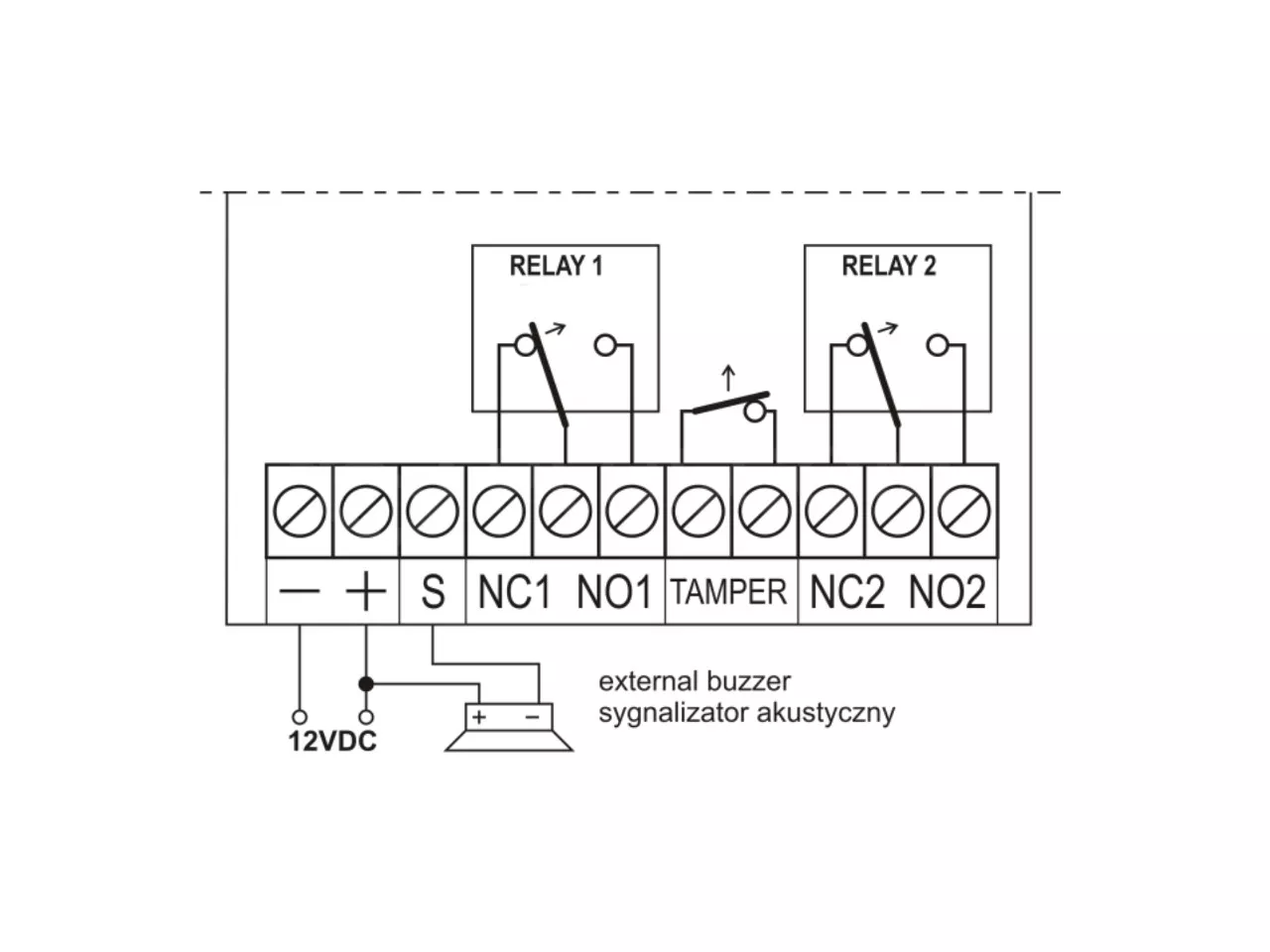

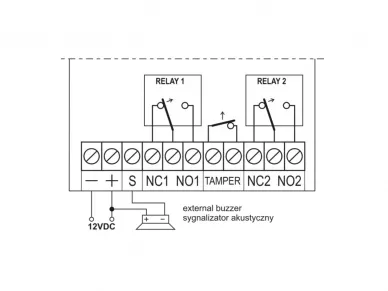

The receiver has a relay output, through which we can control other devices. To terminal block are derived after 3 contacts of two relays: normally open (NO) and normally closed (NC) and one common terminal.

In addition, we are signaling output open collector (s) to which you can connect an external optical or acoustic signal. About unable to activate the relay output also inform the bi-color LED placed on the receiver.

Radio receiver modes:

• by pressing the remote control button, the output will switch on for a certain time. Another pressing at a time when the output is switched on, only time will prolong the switch
• repeatedly pressing the remote control button alternately turn on and off the output or only one button activates output, and second only off
• the output is active as long as the button is pressed the remote control. After releasing the button, the output is still switched on for the time 8 times faster than the programmed
• repeatedly pressing the remote control button alternately turn on and off the output, but also the output switches off automatically after a preset time
• repeatedly pressing the remote control button alternately turn on and off the output.


SPECIFICATIONS:

• operating frequency: 433.92 MHz
• KEELOQ rolling code system. Microchip Corp. USA
• memory remonte controls: 104
• operating range up to 100m open space
• power supply: DC 11-17V
• operating temperature: -20°C...+55°C
• load relay output: 1A, 120VAC / 30VDC
• output operation modes:
• • monostable: ON time: from 0.25 seconds to 4 hours
  • bistable: on / off
• output S (1A / 60V) of the type "open collector"
• tamper output indicates opening the enclosure, the type of NC (compact with closed housing), used in alarm systems
• external dimensions: 24x46x73mm
