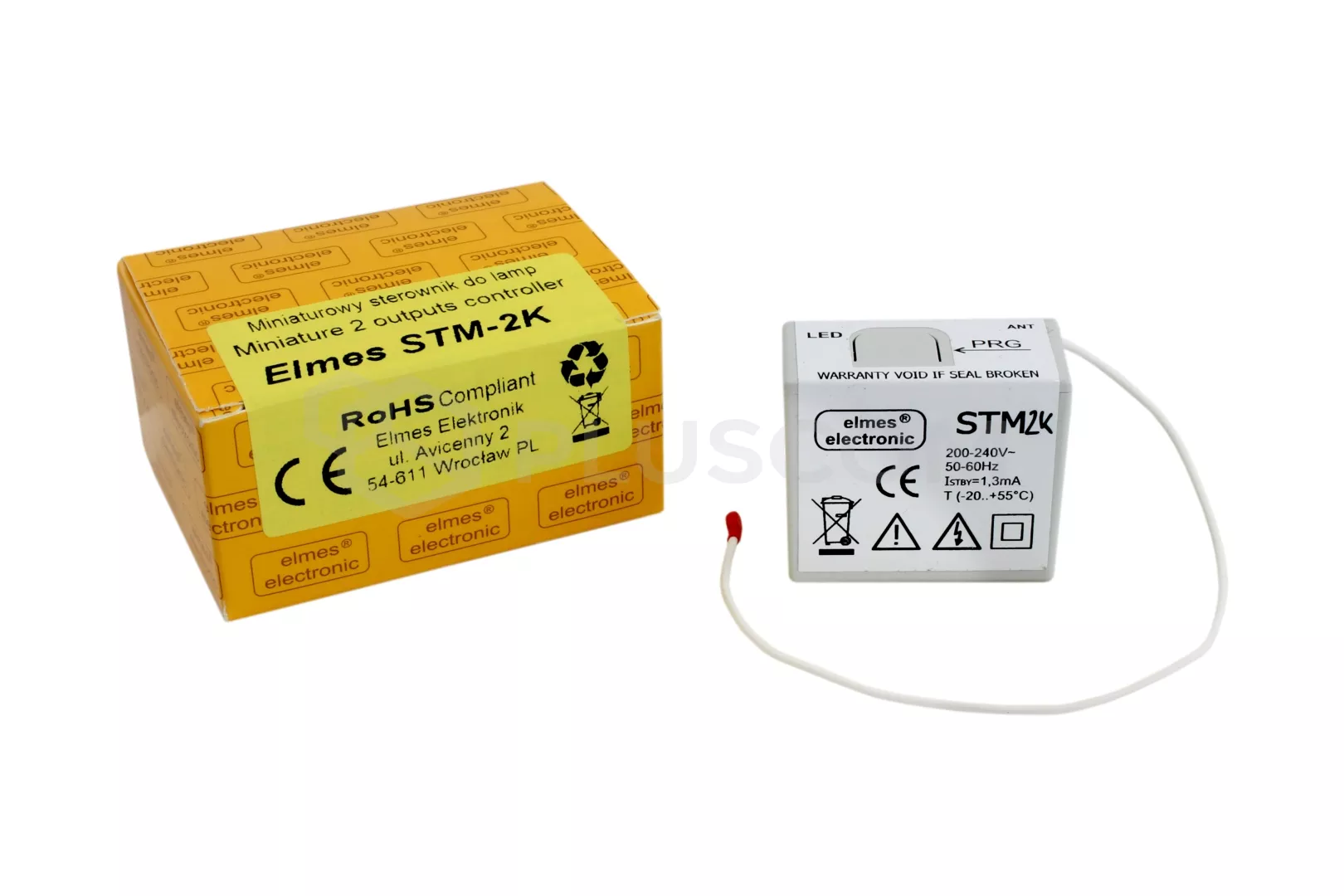

Elmes STM-2K Miniature two channel wireless control set

Elmes driver STM-2K is a small device through which we can remotely control two devices supplied with 230VAC. With the driver pocketable package can be installed in flush-mounted appliance box with a depth of 60mm directly under a single or dual monostable (BELL) wall switch.

Control the operation can be performed locally using the switch or remotely using ELMES pilots. Wireless communication is protected KEELOQ rolling code system, each transmission is coded and different than the previous one. The system ensures safety and prevents the use of the captured code.

The latest version of the driver has a memory output status. This means that if it works in bistable mode (does not turn off automatically after a time) after a power failure to restore the controller output status before a power outage.

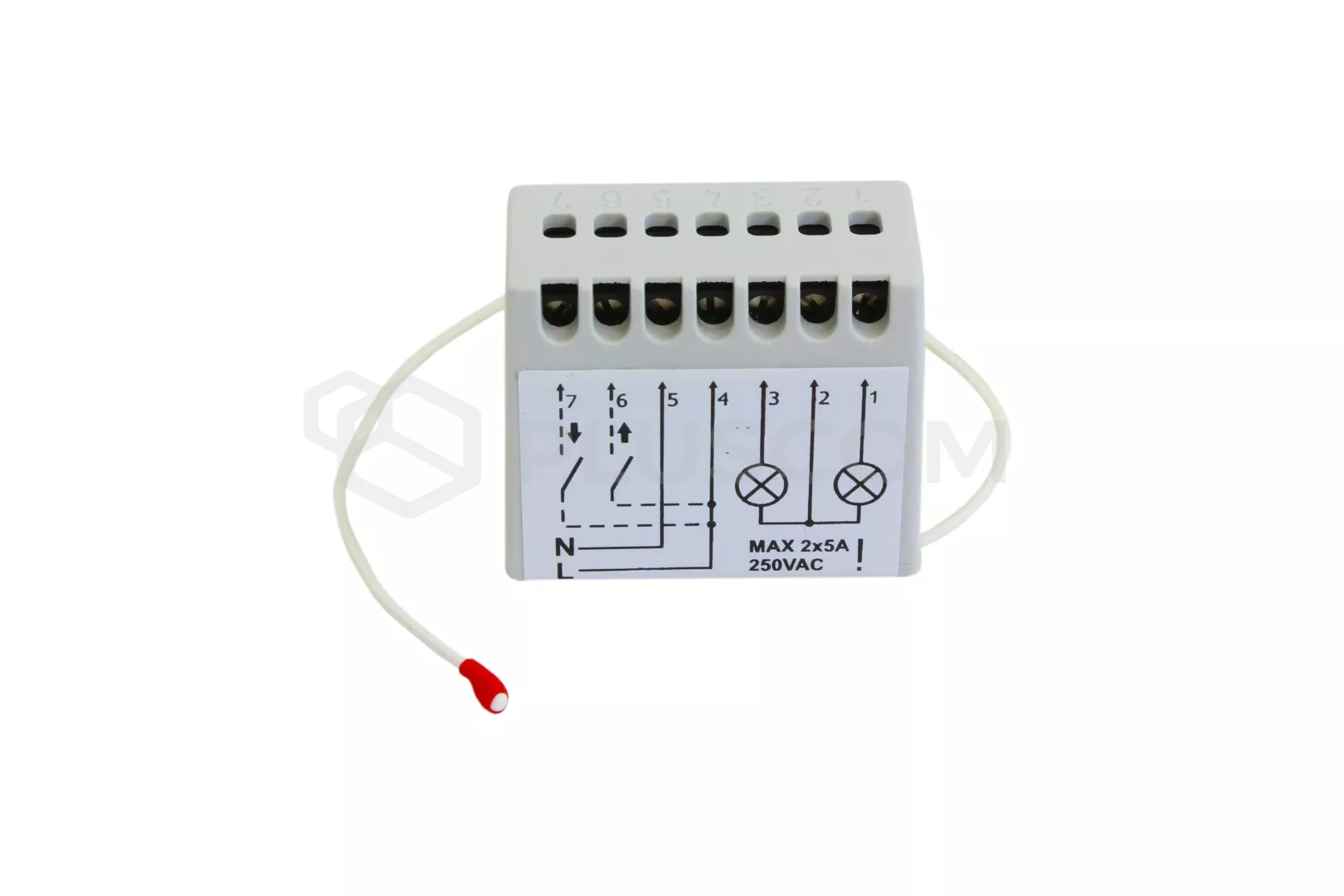

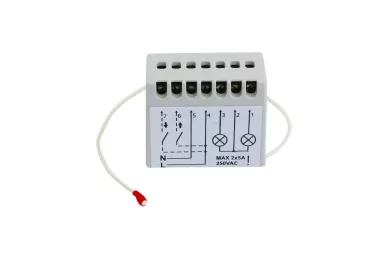

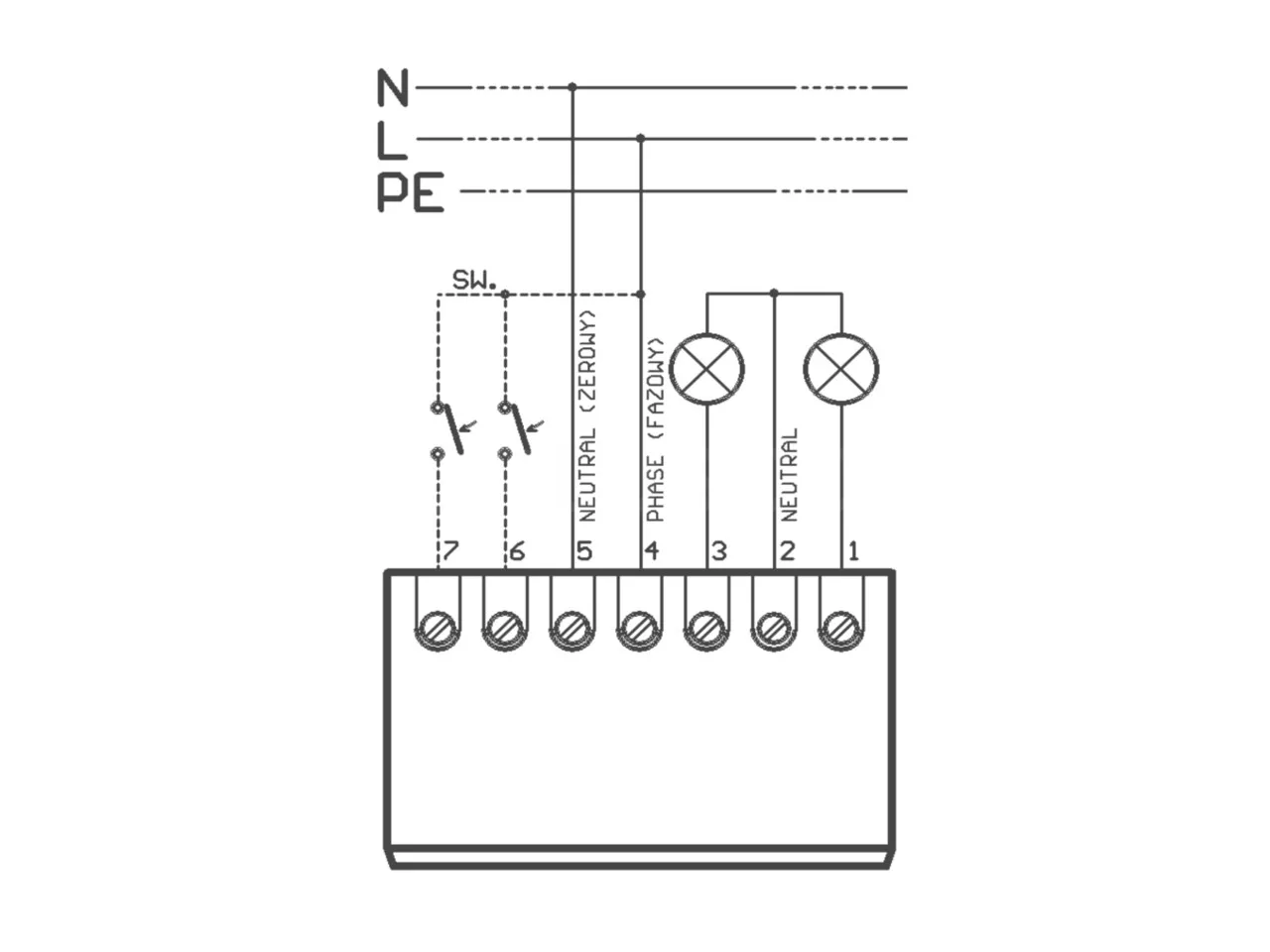

DESCRIPTION OUTPUT

1. - phase output device 1
2. - output common for devices 1 and 2 - neutral
3. - phase output unit 2
4. - phase conductor L mains 230V~
5. - neutral conductor N mains 230V~
6. - entrance wall switch control device 1
7. - entrance wall switch control unit 2


MODES OF OPERATION
Mode 1 - pressing the remote control or wall switch alternately turn on and off the output driver.
Mode 2 - additionally introduces a programmed output time after switching outputs or we can turn them off but if you leave them turned on it will switch off after a preset time, which can range from 0, 5s for 4.5 h

SPECIFICATIONS

• power supply: 230VAC (0,3VA at rest, 0.7V when switching both relays)
• output load: 5A 250V max
• superheterodyne 433.92 MHz radio receiver
• memory 112 pilots
• the voltage on the control inputs 6 and 7: 250V~ max
• mode of operation and time-lapse output set independently for each output.
• • hold time for starting running mode 2: from 0.5s to 4.5h
• operating temperature range from -20°C to + 55°C
• external dimensions: (d/s/w) 42x35x21mm
