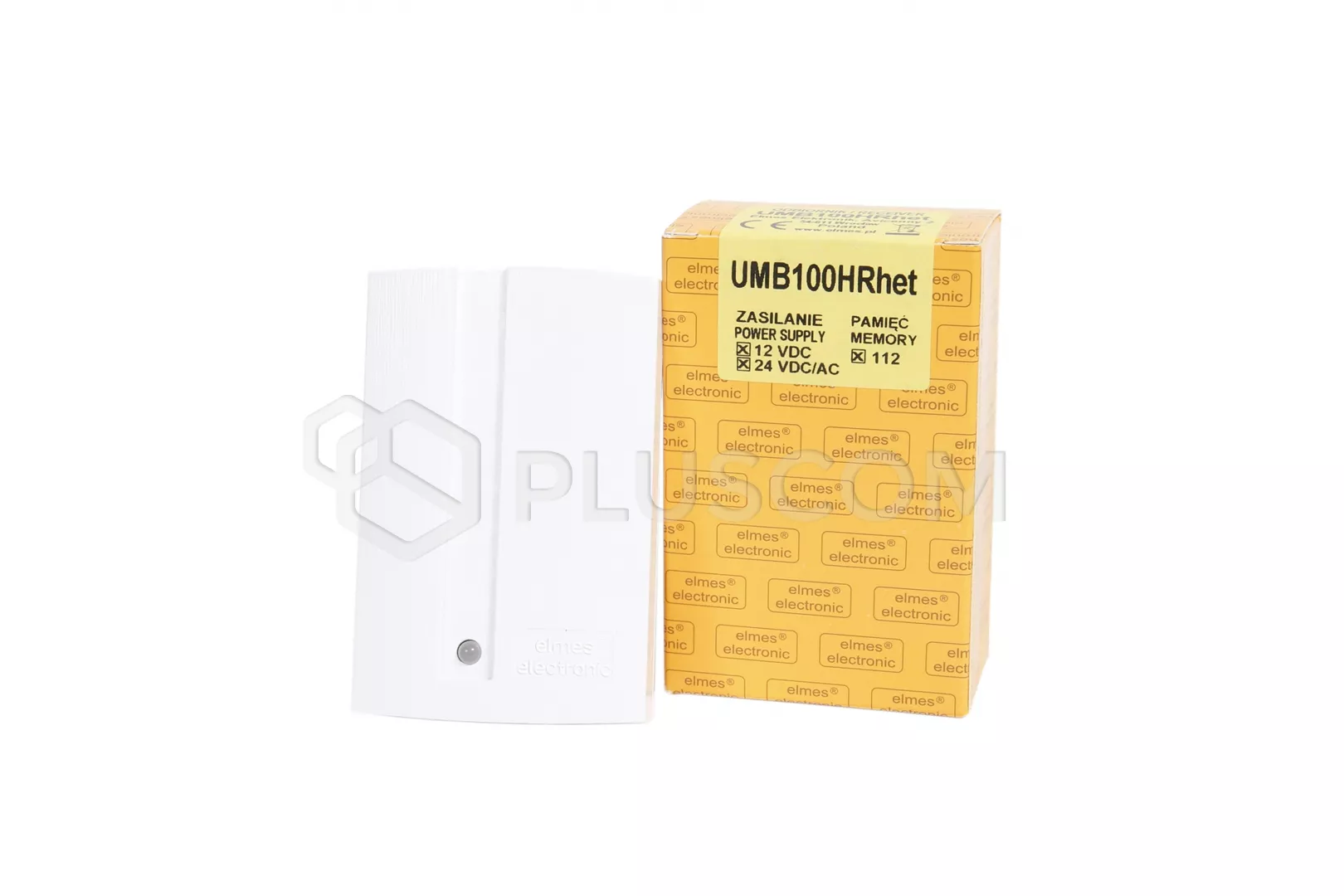

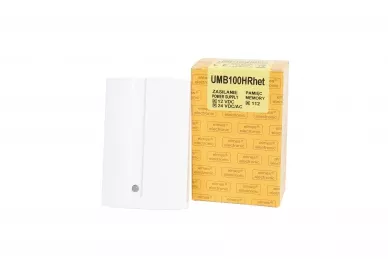

Elmes UMB100HR-het 1-channel universal receiver

21,00 EUR including 22.00% VAT
Product code: #27235
Manufacturer: Elmes
  • 1 independent channel
  • Support for up to 112 key fobs
  • Load relay: 1A
  • Additional S transistor output
  • Operating mode: monostable, bistable
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Elmes MTX2 Short/open detector

Elmes UMB100HR-het 1-channel universal receiver

ELMES UMB100HR-het is a single-channel superheterodyne receiver with relays with load capacity up to 1A.
The receiver can work with 112 remote controls. TheKEELOQ system guarantees high safetyof use. In this system, every press pressing the remote control button generates and sends a new code. Receiver tracks these changes and only responds to new code. Codes once used are not valid accepted. This prevents the re-use of captured codes.

Superheterodyne receiver is characterized by high sensitivity and high resistance to radio interference. In the case of this type of receiver it is also possible for the receivers to work next to each other without worrying about each other noise.
Relay load capacity up to 1A (120VAC/30VDC)

OPERATING MODES:
  • turning the relay on with one button on the remote control and turning it off with another
  • switching on the relay as long as we hold the button on the remote control
  • enable-disable
  • switching on for the programmed time
TECHNICAL PARAMETERS:
  • operating frequency: 433.92 MHz
  • KEELOQ variable code system
  • pilot memory: 112
  • wide power supply range: DC 10-35V AC 12-27V
  • load capacity of relay output: 1A, 120VAC/30VDC
  • operating temperature: -20°C...+ 40°C
The receiver does not include a remote control:
