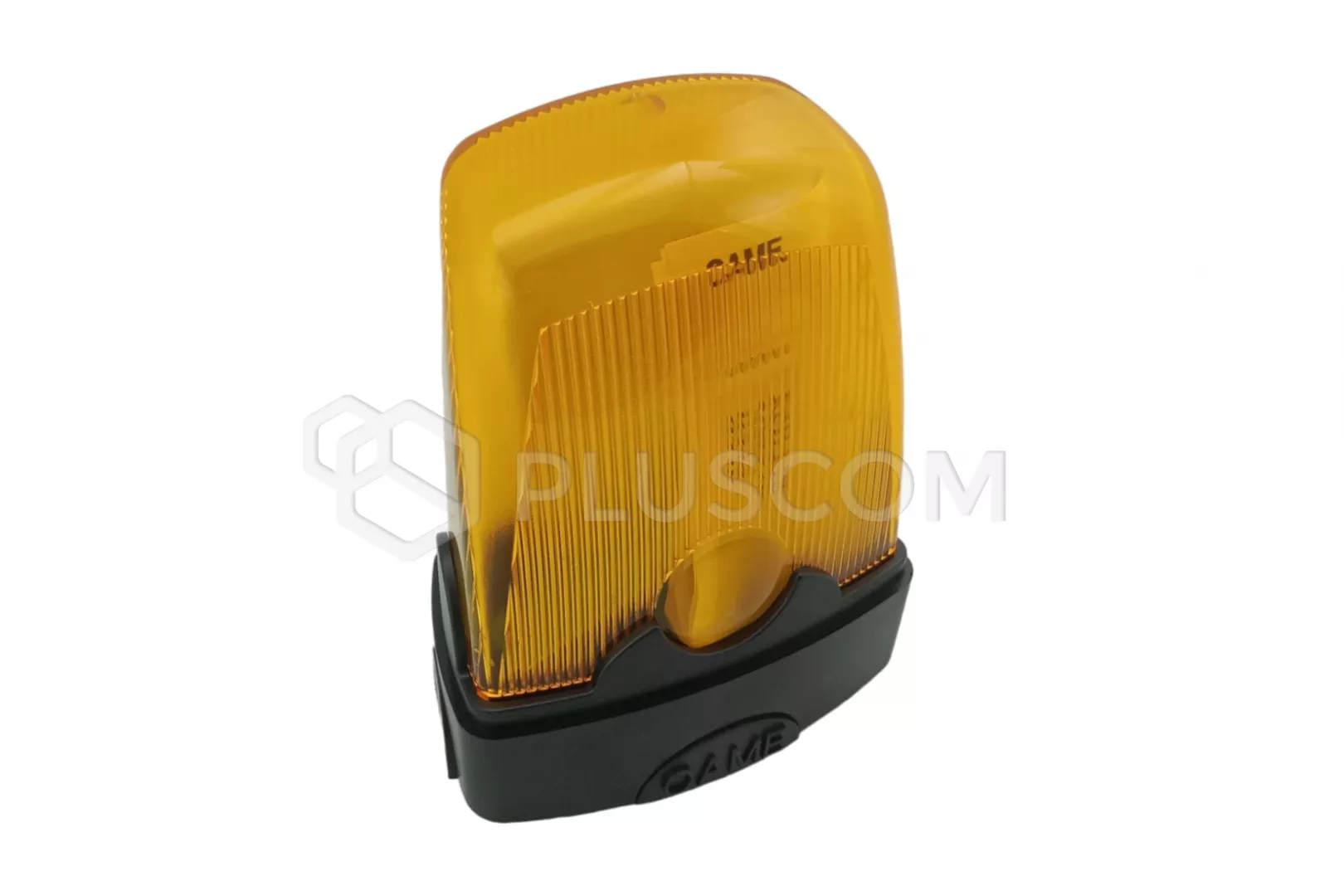

Came KLED24 LED warning light 24V

35,81 EUR including 23.00% VAT
Product code: #26401
Manufacturer: CAME
  • Supply voltage 24V DC
  • Installation on a horizontal or vertical plane
  • Light source: LED
  • Orange diffuser, polycarbonate housing

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came F4024E 24V actuator for folding gates Came FE4024 actuator without control panel Came FA7024CB 230V actuator with control panel Came FA7024 230V actuator Came FROG-A24E underground actuator 24V Came KIAROS Base for KIARO lamps Came A3024N Actuator 24V, leaf up to 3m / 400kg with limit switches Came TOP-RG58 Antenna cable Came AX3024 Actuator 24V leaf up to 3m / 500kg Came TOP-A862N Antenna

CAME KLED24 24V LED warning lamp with low energy consumption


The KLED24 signal lamp is designed for use in automation systems of gates, garage doors or barriers.
It is an element that increases the safety of using automation. Approaching the gate, thanks to the lamp, we know that the actuator has started the opening cycle.

The lamp works with control units that supply 24V voltage at the output of the warning lamp. The light source is an energy-saving LED diode giving up to 85% savings and a longer service life compared to traditional light bulbs.

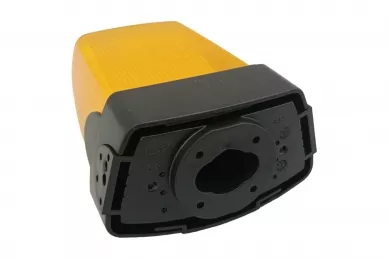

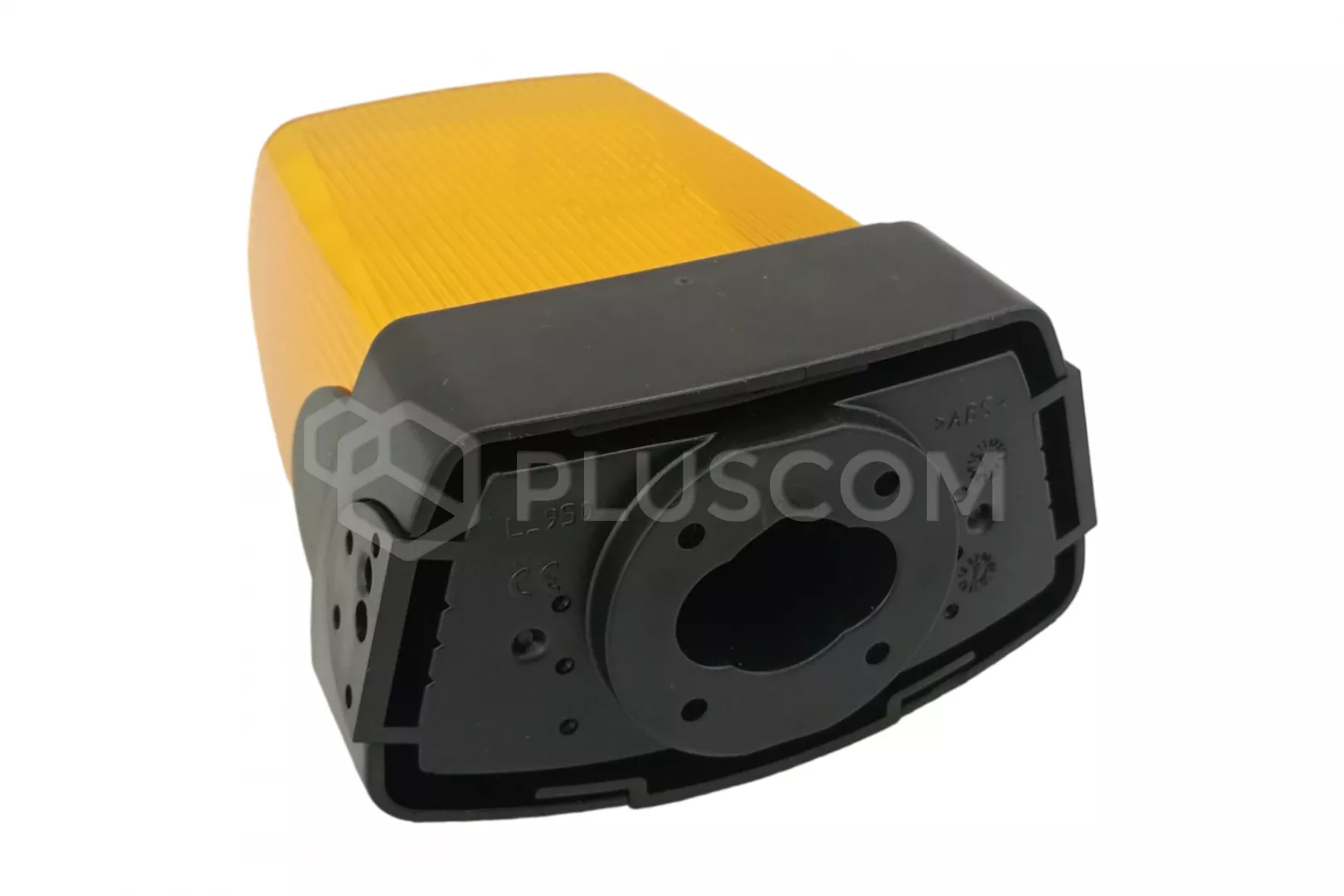

The housing is made of polycarbonate ABS material. The lamp can be installed on the wall, using a dedicated KIAROS bracket, which provides a full range of adjustment: 0°-90° - 180°-270°. The lamp has the possibility of integration with a radio antenna on both sides.

The lamp can be equipped with an external antenna tuned to the frequency of 433.92MHz or 868.35MHz, depending on your needs.

PARAMETERS:
  • power supply: 24V
  • light source: energy-saving LED diode
  • bulb power: max 2W
  • bilateral integration with 433.92MHz/868.35 MHz antenna
  • dimensions: 130×170×76mm
  • protection class: IP54
  • operating temperature: -20°C...55°C

Download
Manual 0.66 MB
