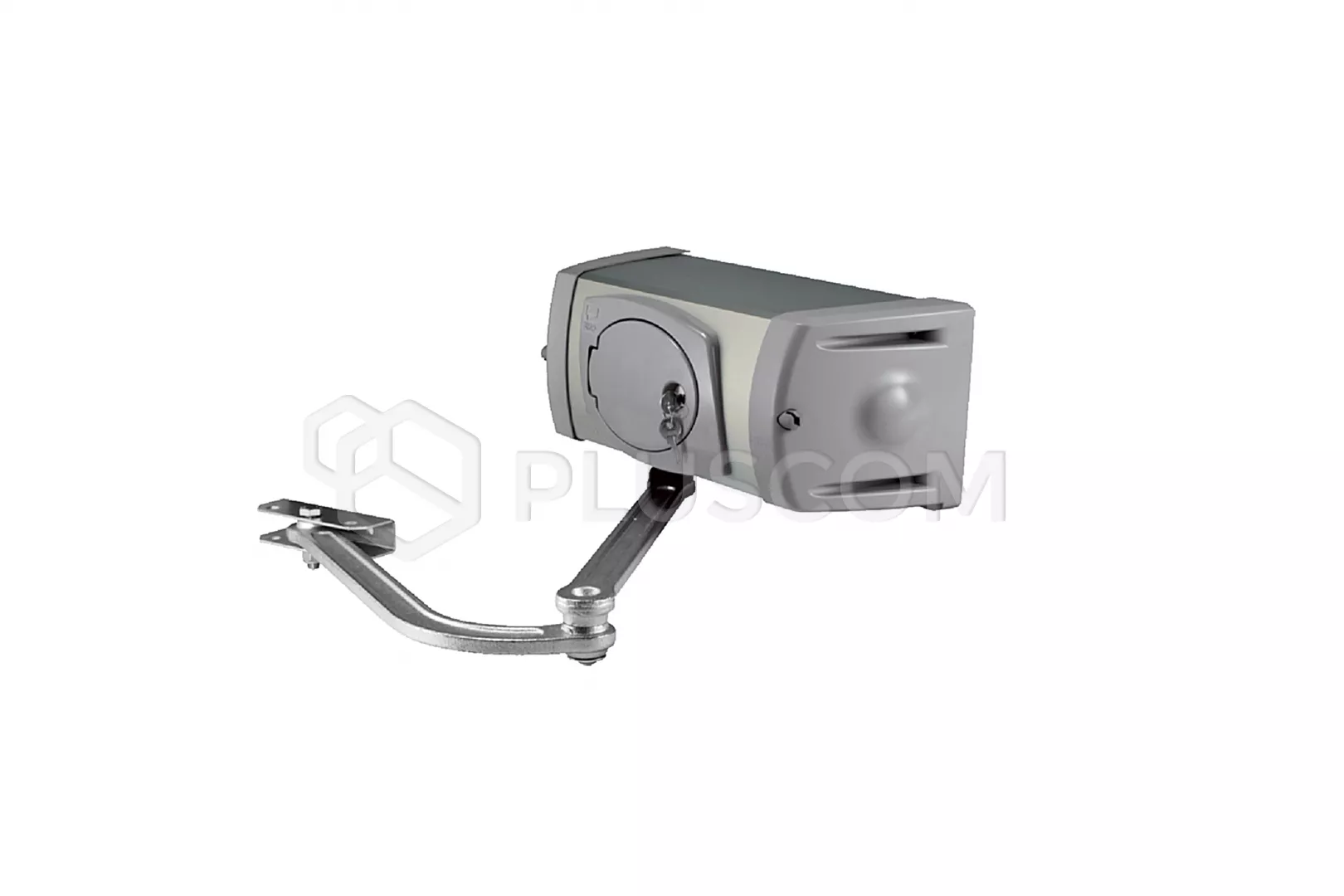

Came FE4024 actuator without control panel

772,19 EUR including 23.00% VAT
Product code: #26068
Manufacturer: CAME
  • Max length of the gate leaf: 4m
  • Max weight of the gate leaf: 800kg
  • Power supply/Motor 230V/24V
  • Adjustable opening time
  • Intensive work
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came RLB Card for supplying the system with batteries Came H3000 Release mechanism from the outside Came ZLX24SA Control panel for a 2-leaf gate Came ZLX24MA Control panel for a 2-leaf gate Came FERNI BSX Left-hand telescopic arm Came FERNI BDX Right-hand telescopic arm Came PL0033 12V 7Ah battery Came LOCK82 Two-cylinder electromagnetic lock 12V Came LOCK81 One-cylinder electromagnetic lock 12V

CAME FE4024 operator for swing gates up to 4 m wing

PURPOSE OF DRIVE
The CAME FE4024 folding arm actuator is designed for automation gates with leaf length and weight:
  • 2m/800kg
  • 2.5m/600kg
  • 3m/500kg
  • 4m/400kg
The FERNI drive is designed for installation on leaves up to 4 m long, when the gate is located between large poles and there is a gap between the front of the pole and the gate hinge is quite large and is up to 30 cm.
24V technology increases safety by enabling adjustments the speed of the opening and closing movement and thanks to the detection function obstacles.

Installation does not require any construction work or removal of wings, offering maximum adaptation to all installation needs. There is a solution supplied as standard with an articulated arm, but is also available special straight arm for installation in the presence of walls or fences in near the gate.

FEATURES:

  • Elegant and modern housing made of durable anodized aluminum
  • Increased resistance to unfavorable weather conditions
  • Declutch mechanism door
  • Safe management of leaf movement and deceleration stages thanks encoder technology that precisely detects the presence of any obstacles along the movement path
  • Limit switch system ''double face''

SIMPLIED INSTALLATION

Extreme versatility and specialness The properties of this automation system ensure simplicity, practicality and precision at every stage of installation work, mainly in the case of existing structures:
  • Only one cable with four wires for power management and slowing down
  • Memorizing remote controls with different codes (up to 250 users)
  • Control panel equipped with a display for programming functions there, where it has been provided

TECHNICAL DATA:

  • Power supply: 230V 50/60Hz
  • Motor power supply: 24V DC
  • Motor current consumption: 7A
  • Maximum engine power: 130W
  • Duty cycle: intensive work
  • Thrust force: 360Nm
  • Opening time (up to 90°): adjustable
  • Operating temperature: - 20°C ~ 55°C
  • Protection level: IP44
  • Dimensions: 160x391x185mm
  • Weight: 12.6kg
