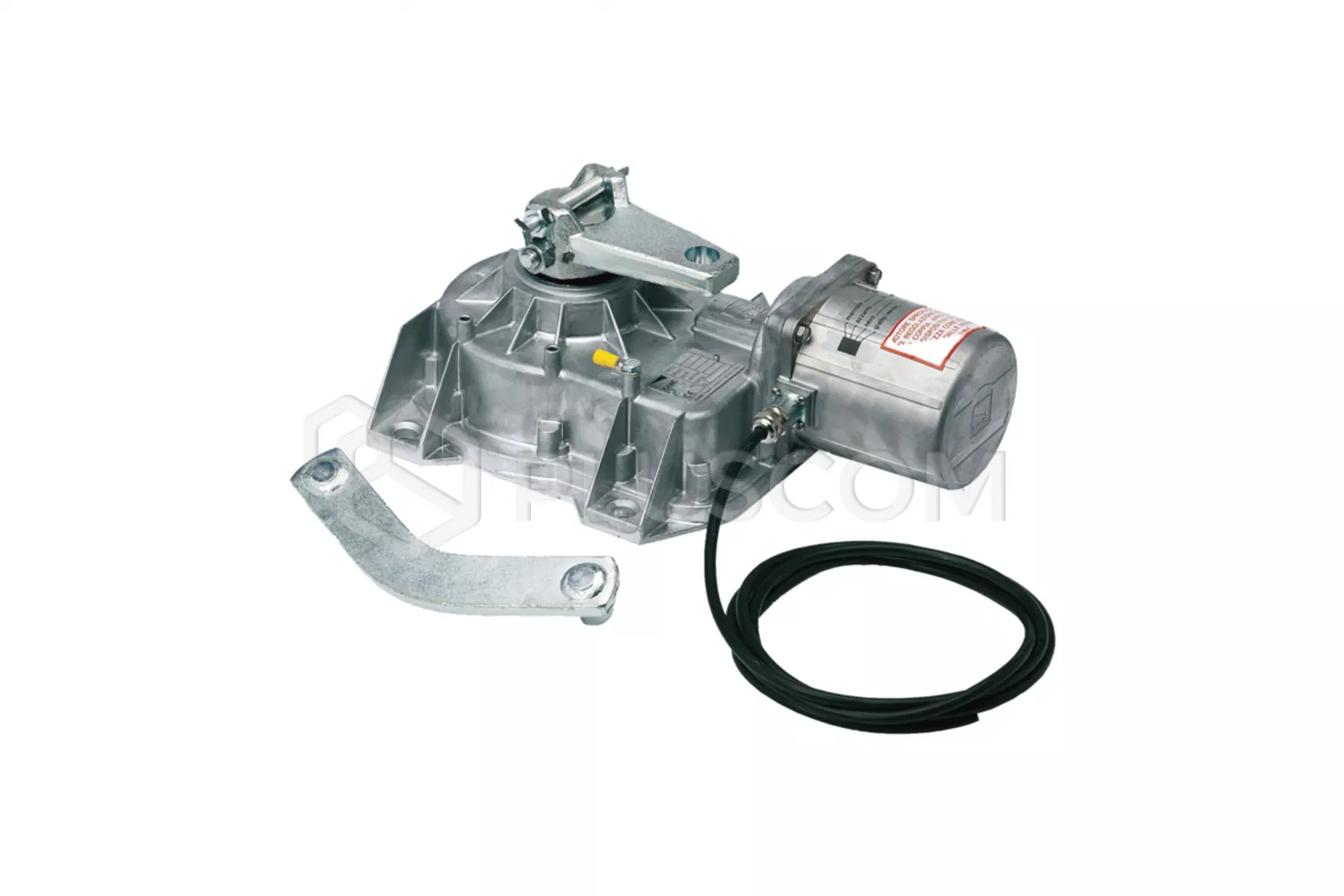

Came FROG-A24E underground actuator 24V

CAME FROG-A24E underground irreversible actuator for gates with leaves up to 3.5 m long

GATEWAY PARAMETERS

• 3.5m/400kg
• 2.5m/600kg
• 2m/800kg

FROG-A24E is a self-locking underground electromechanical actuator for gates wingers with max. leaf length up to 3.5 m. Thanks to the use of an electromechanical motor, the gate movement is smooth, precise and safe even in extreme conditions.

A simple, patented release that will enable you in the event of a power outage unlocking the actuator.
The release mechanism is available in three versions:

• basic system based on release lever
• two extended versions in which the clutch is released via the use of a special three-sided key or a personalized key cylindrical DIN

For self-locking drives with a leaf over 2.5 m installation electric lock is mandatory.

The biggest advantage of underground actuators is the aesthetics and discretion of the drive it is invisible and does not spoil the image of the gate
The second important advantage of underground drives is the possibility of installation in place where because of

• narrow entrance
• very narrow posts where dimension A is less than 100mm


There is no room for installing screw drives or drives with a folding arm

FROG-A24E complies with European standards for impact force.

TECHNICAL DATA:

• Motor power supply: 24V
• Max. power consumption: 180 W
• Current intensity: max. 15 A
• Thrust force: 320 Nm
• Opening time (up to 90°): adjustable 16-45s
• Duty cycle: intensive work
• Protection level: IP 67
• Operating temperature: -20 °C to +55 °C
• Dimensions: 405 x 220 x 330 mm (with housing)
• Weight: 11 kg
