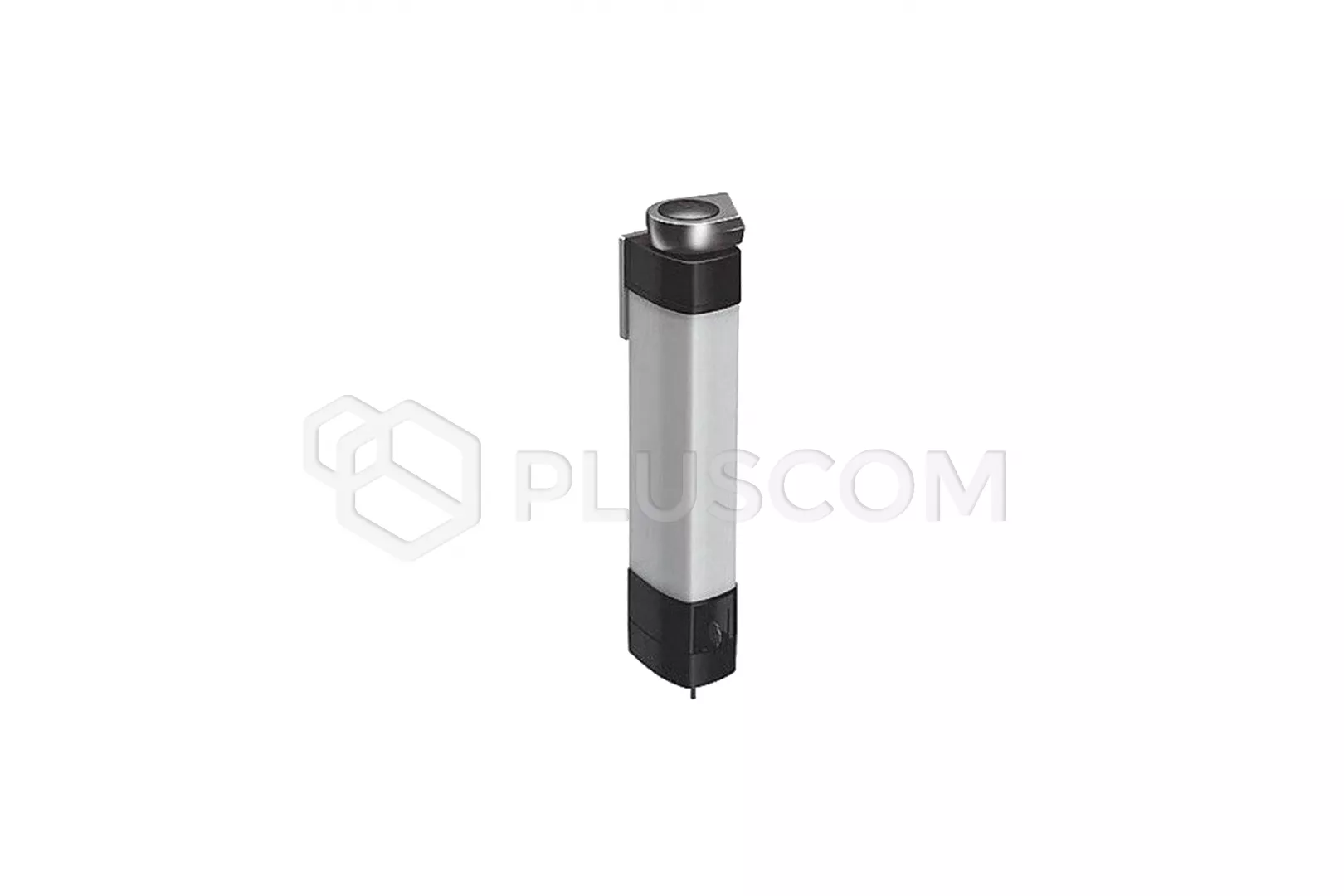

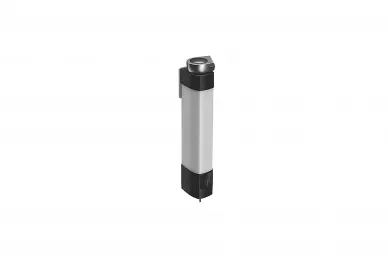

Came STYLO-ME 24V self-locking actuator with encoder

CAME STYLO-ME Self-locking 24V actuator with encoder for small and medium-sized swing gates

The STYLO actuator is designed to automate swing gates in residences or multi-apartment buildings, created for small and medium-sized gates. Easy to assemble without any prior preparation and on narrow posts.
The system is powered mains voltage, but the motor works on 24V ensuring the highest possible degree safety to the user.

STYLO-ME is a self-locking actuator with an encoder for one leaf up to 1.8 m without a transmitted arm.
The actuator is characterized by adjustable gate opening time to a full 90º. It has a built-in encoder that constantly monitors the gate movement. Control unit provides a number of functions that are very useful in everyday use. It allows you to control the operation of the gate from the remote control, allows you to connect an appropriate emergency power card with batteries or install other useful safety devices.

TECHNICAL DATA:

• Power supply: 230 V AC (50/60 Hz)
• Motor power supply: 24 V DC (50/60 Hz)
• Motor current consumption: 5 A
• Maximum motor power: 48 W
• Opening time (up to 90º): adjustable
• Efficiency: intensive use
• Maximum torque: 100 Nm
• Reduction gear ratio: 1/531
• Housing: IP54
• Operating temperature: -20°C ~ 55°C
• Weight: 6.8 kg
• Actuator dimensions: 437.5×106×80 mm
