Came FA7024 230V actuator

607,18 EUR including 23.00% VAT
Product code: #26065
Manufacturer: CAME
  • Maximum leaf width 2.3m
  • Maximum leaf weight 200kg
  • Power supply/Motor 230V/24V
  • Intensive work
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came 119RID378 Mechanical stop for FAST Came LOCK82 Two-cylinder electromagnetic lock 12V Came LOCK81 One-cylinder electromagnetic lock 12V Came RLB Card for supplying the system with batteries Came RGP1 Module limiting power consumption Came RSE RS485 communication card Came R700 Interface Came H3000 Release mechanism from the outside Came FA7024CB 230V actuator with control panel Came STYLO-BD Straight arm

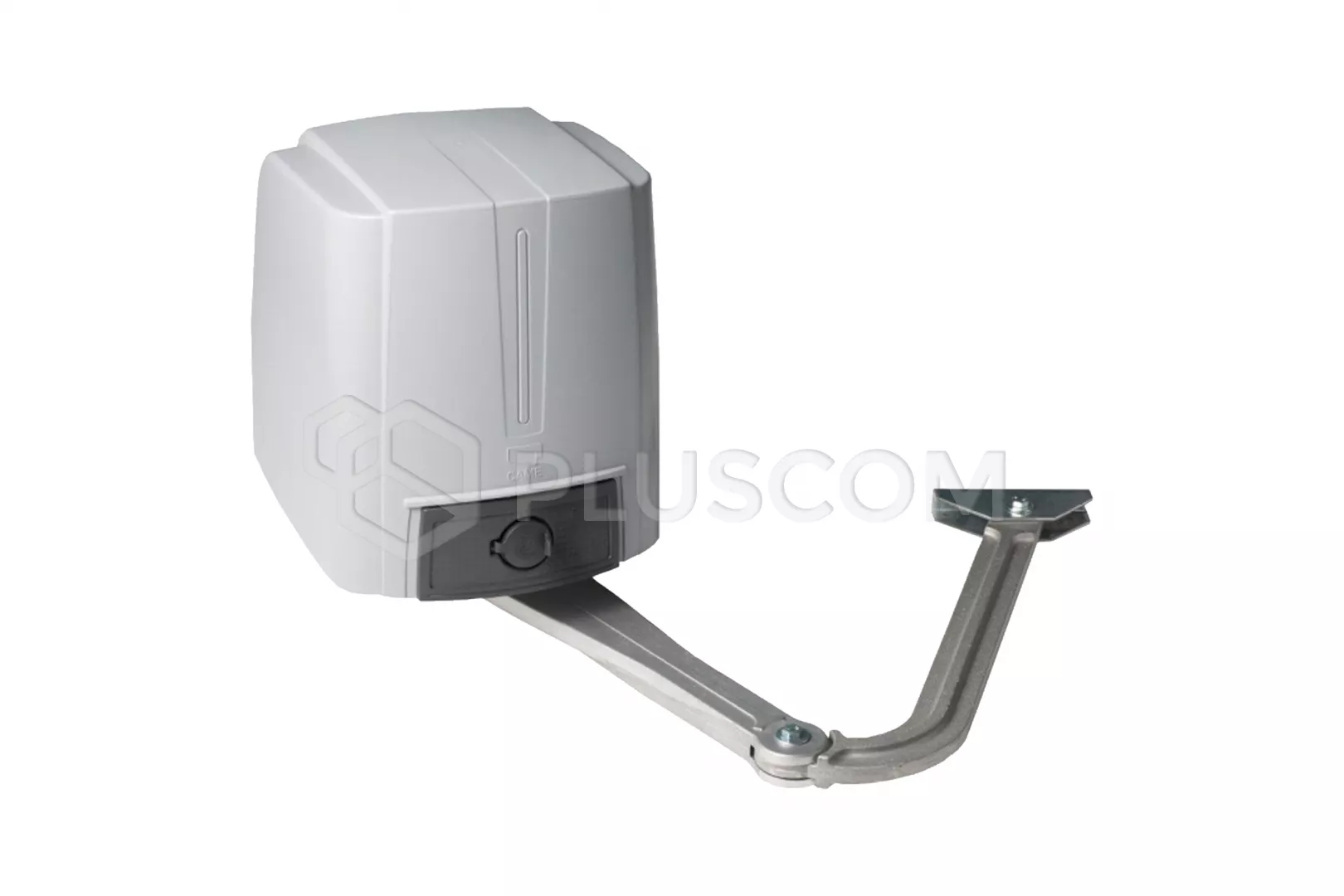

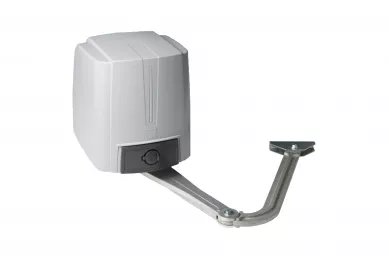

CAME FA7024 - actuator for swing gates 2.3m / 200kg

DRIVE PURPOSE

The CAME FA7024 folding arm cylinder is designed for automation gates with servants and the weight of the wing:
  • 1m / 300kg
  • 1.5m / 250kg
  • 2m / 215kg
  • 2.3m / 200kg
Suitable for mounting on posts with a width of 20 cm.
Intended for intensive work.
The construction of the actuator and the broken arm make the actuator a perfect match with architect of the gate, and above all, it does not require any modifications to the posts. Actuator has limit switches, no stops are required to be mounted in backing either on the opening or on the closure. The actuator has been designed to to be ready for operation even in critical weather conditions.

Fast requires very little space and is easy to install on the gate posts. In the event of a power failure, the actuators are equipped with a convenient mechanism disengaging.

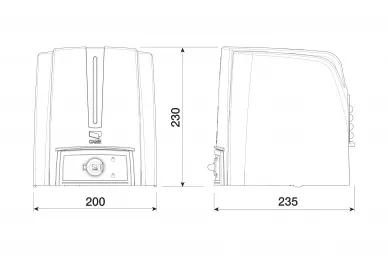

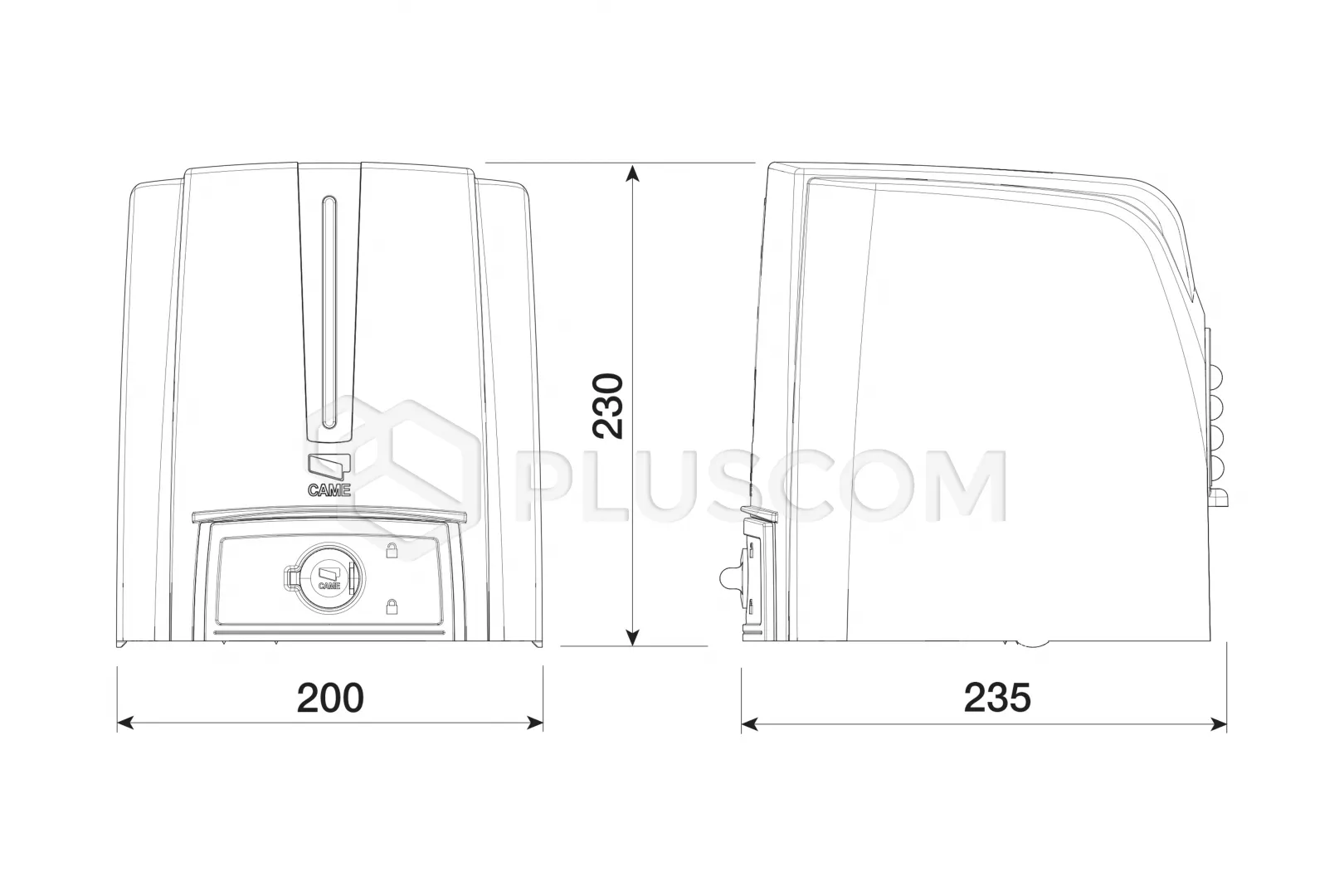

Dimensions:

Dimensions:


TECHNICAL PARAMETERS:
  • power supply: 230V 50/60 Hz
  • motor power: 24V DC
  • maximum engine power: 140W
  • opening time (up to 90 °): 13s - 30s
  • working temperature: -20 ° C ~ 55 ° C
  • degree of protection: IP54
  • dimensions: 200x230x235mm
  • weight: 12.7kg

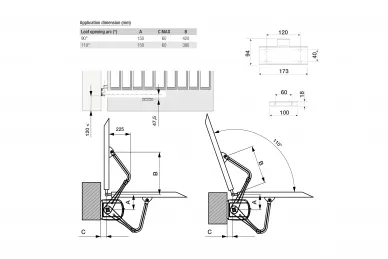

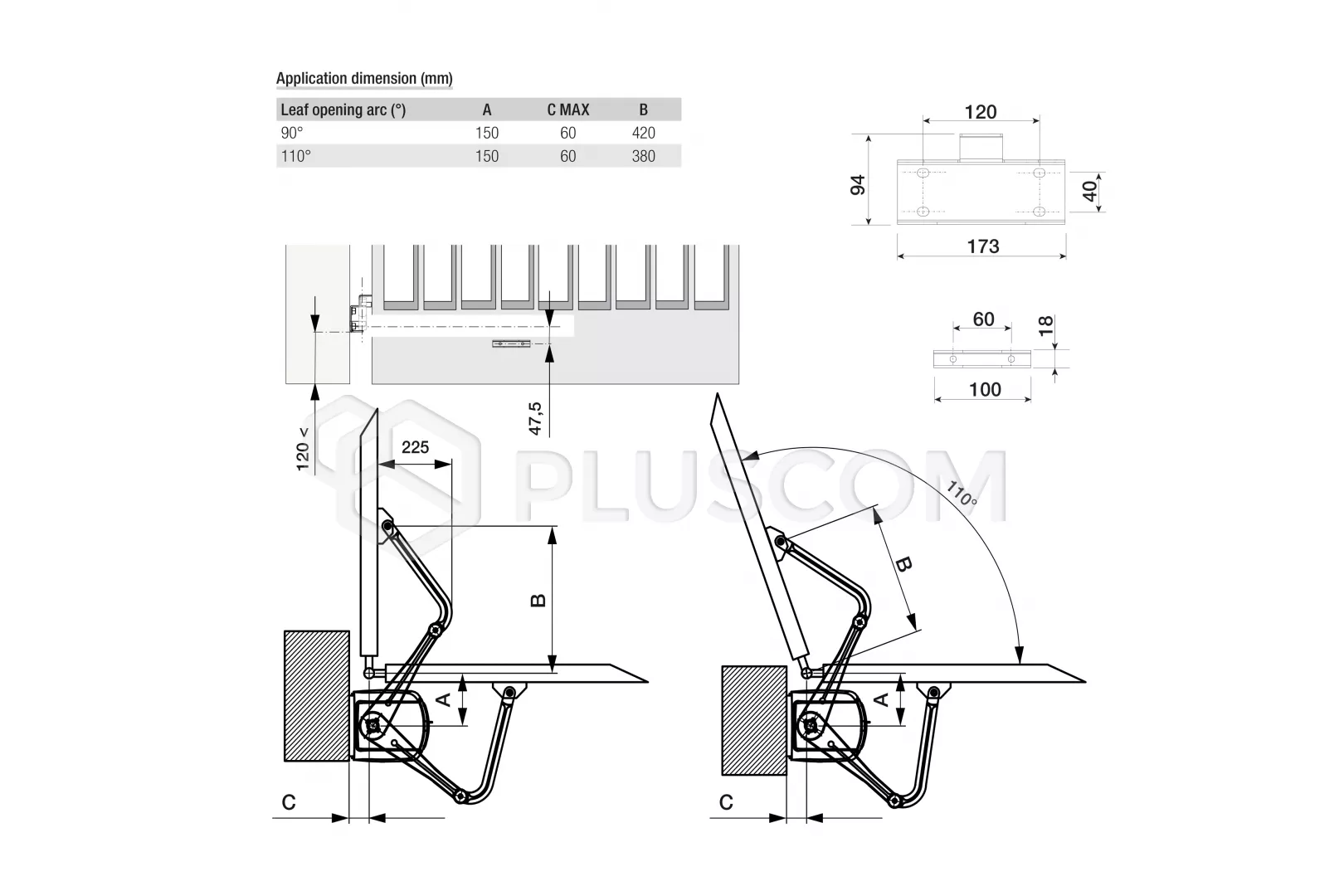

Determining the assembly dimensions:

Determining the assembly dimensions:

Download
Manual 24.81 MB
