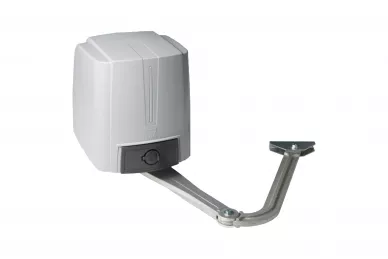

Came FA7024CB 230V actuator with control panel

CAME FA7024CB - actuator for swing gates 2.3m / 200kg

DRIVE PURPOSE

The CAME FA7024CB broken arm actuator is designed for automation gates with servants and the weight of the wing:

• 1m / 300kg
• 1.5m / 250kg
• 2m / 215kg
• 2.3m / 200kg

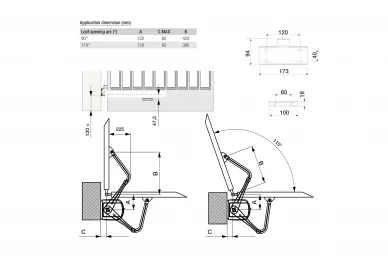

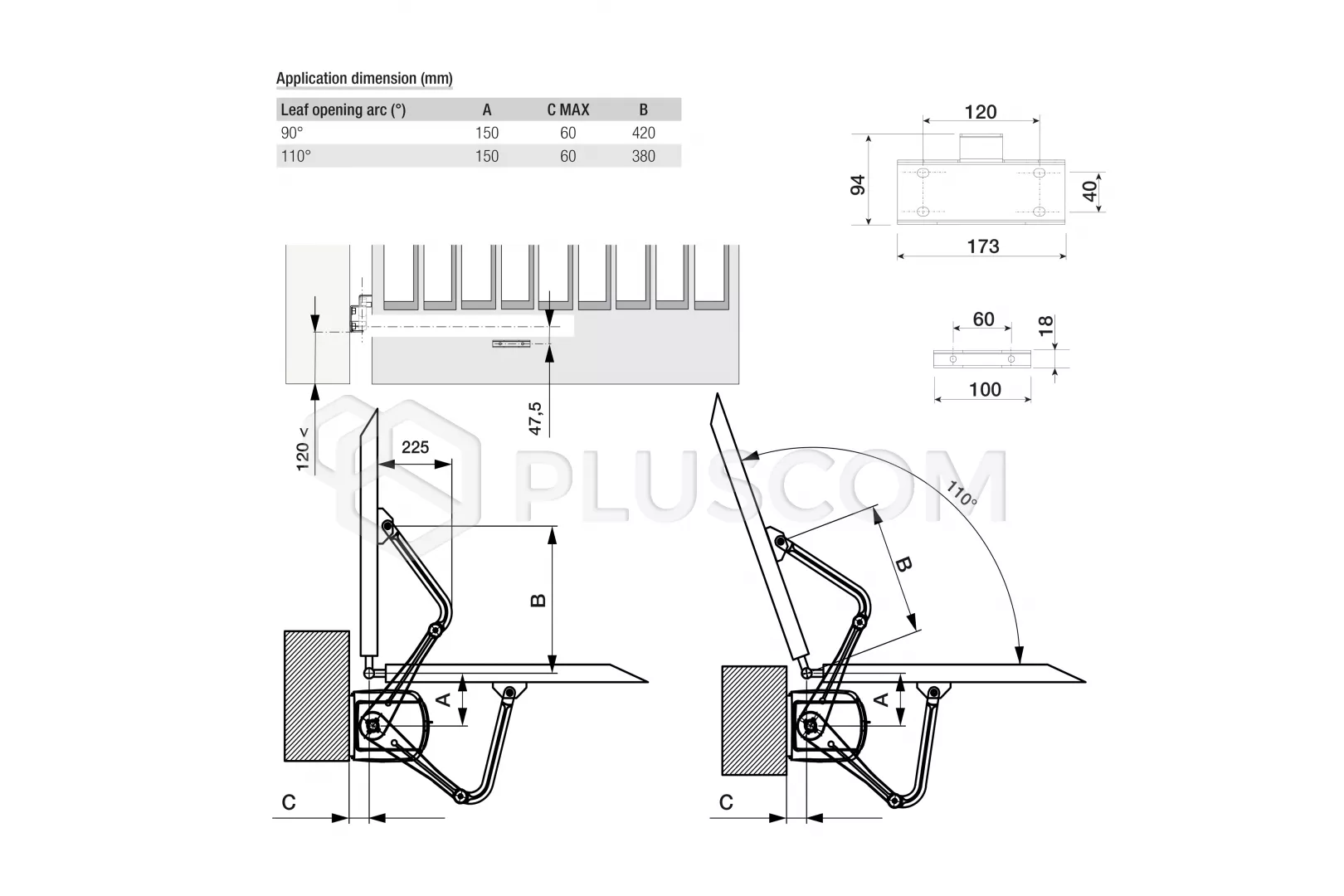

Suitable for mounting on posts with a width of 20 cm.

It is equipped with a multifunctional control unit ZL65, which allows for connection all possible safety and control devices. Intended for intensive work.
The construction of the actuator and the broken arm make the actuator a perfect match with architect of the gate, and above all, it does not require any modifications to the posts. Actuator has limit switches, no stops are required to be mounted in backing either on the opening or on the closure. The actuator has been designed to to be ready for operation even in critical weather conditions.

Actuator features:

• limit switches built into the actuators enable quick and easy precise regulation of the opening and closing points of the sash
• Adjustable opening time 13s - 30s to 90 °
• possibility of automatic gate closing
• gate stop with remote control
• fixed gate protection, open / close commands are ignored if there is an obstacle in the gate clearance

Fast requires very little space and is easy to install on the gate posts. In the event of a power failure, the actuators are equipped with a convenient mechanism disengaging.

TECHNICAL PARAMETERS:

• power supply: 230V 50/60 Hz
• motor power: 24V DC
• maximum engine power: 140W
• opening time (up to 90 °): 13s - 30s
• working temperature: -20 ° C ~ 55 ° C
• degree of protection: IP54

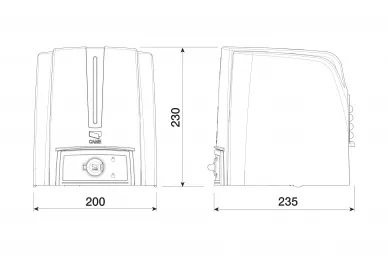

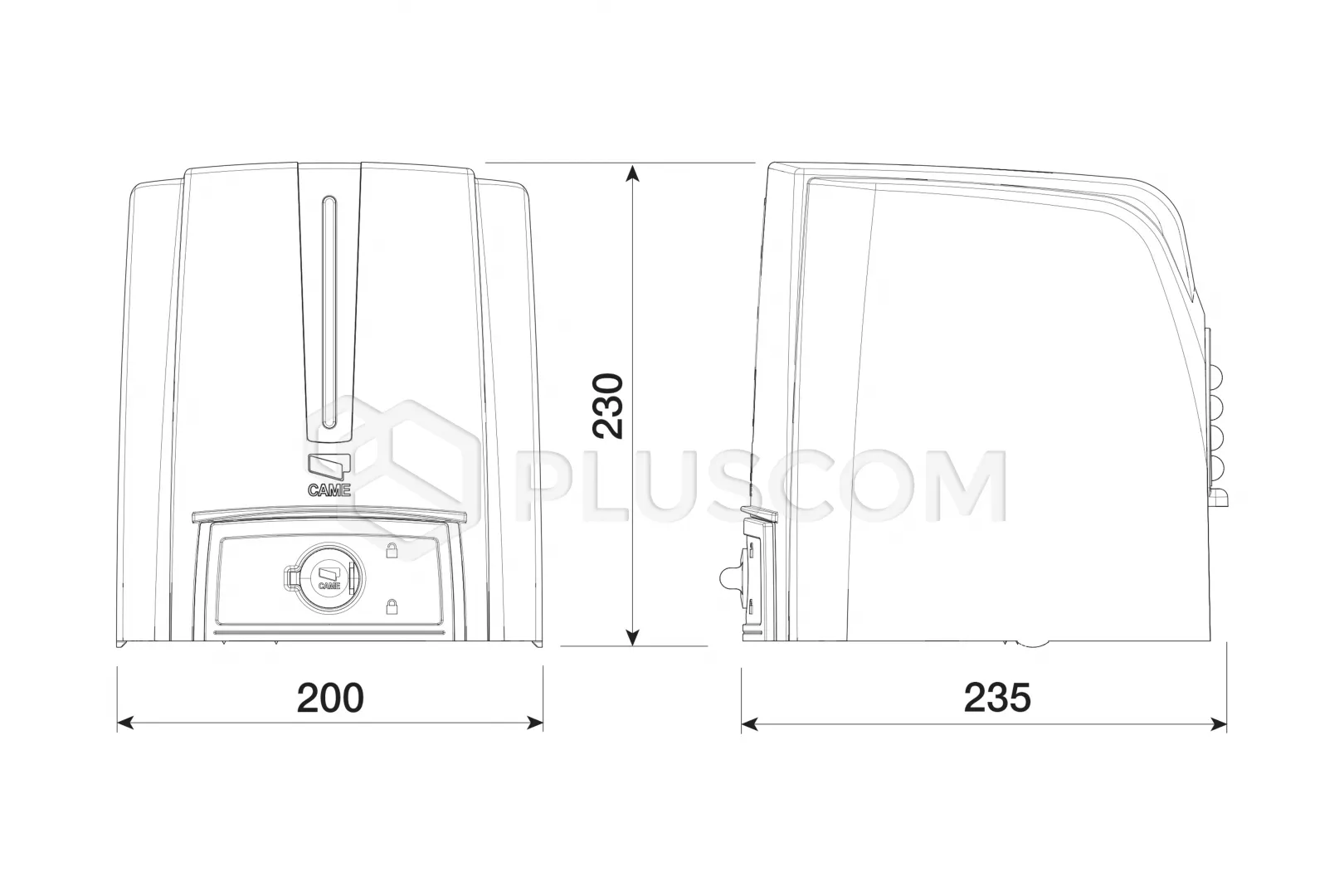

• dimensions: 200x230x235mm
• weight: 12.7kg
