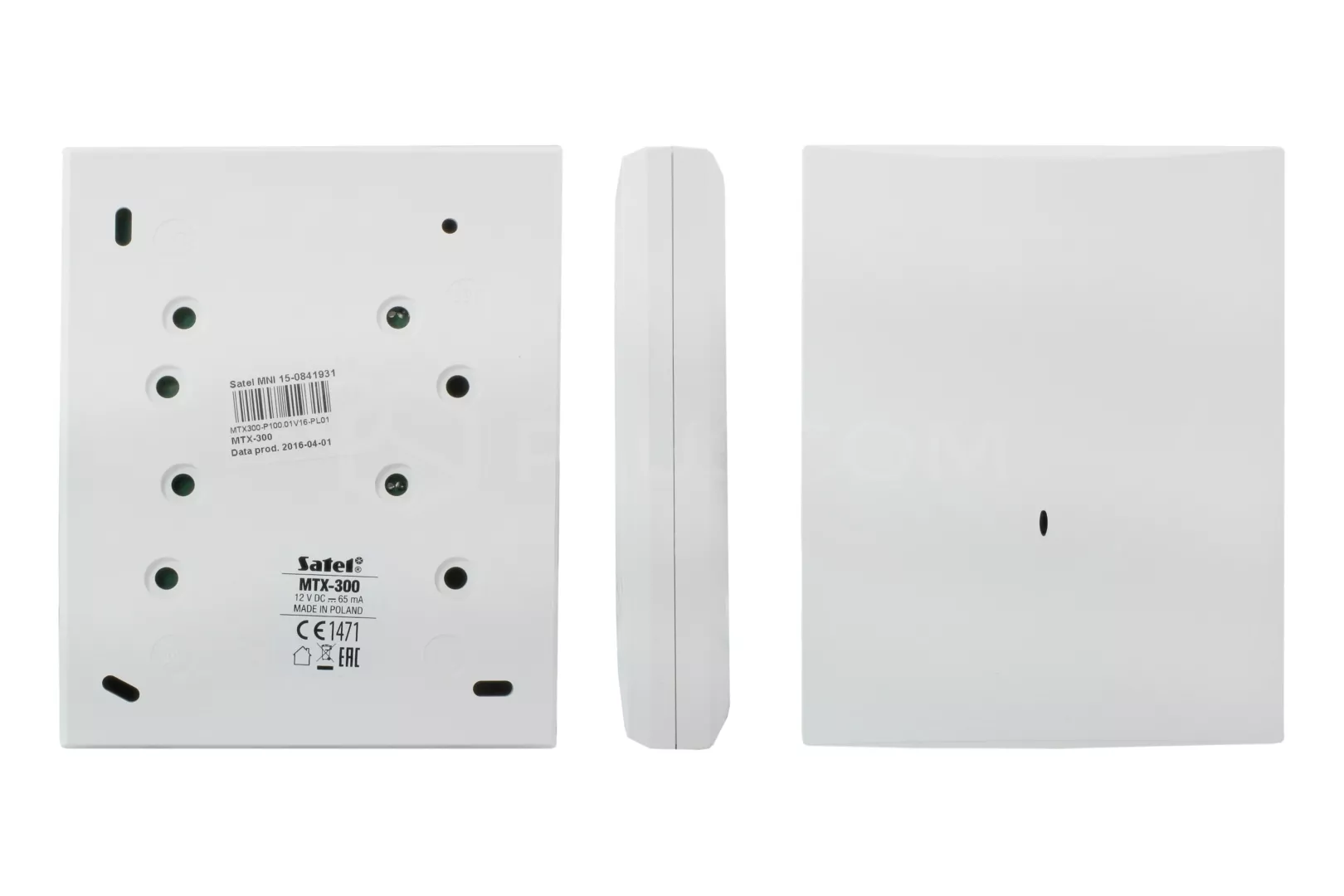

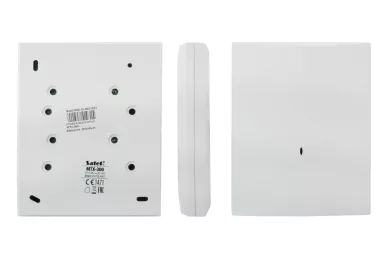

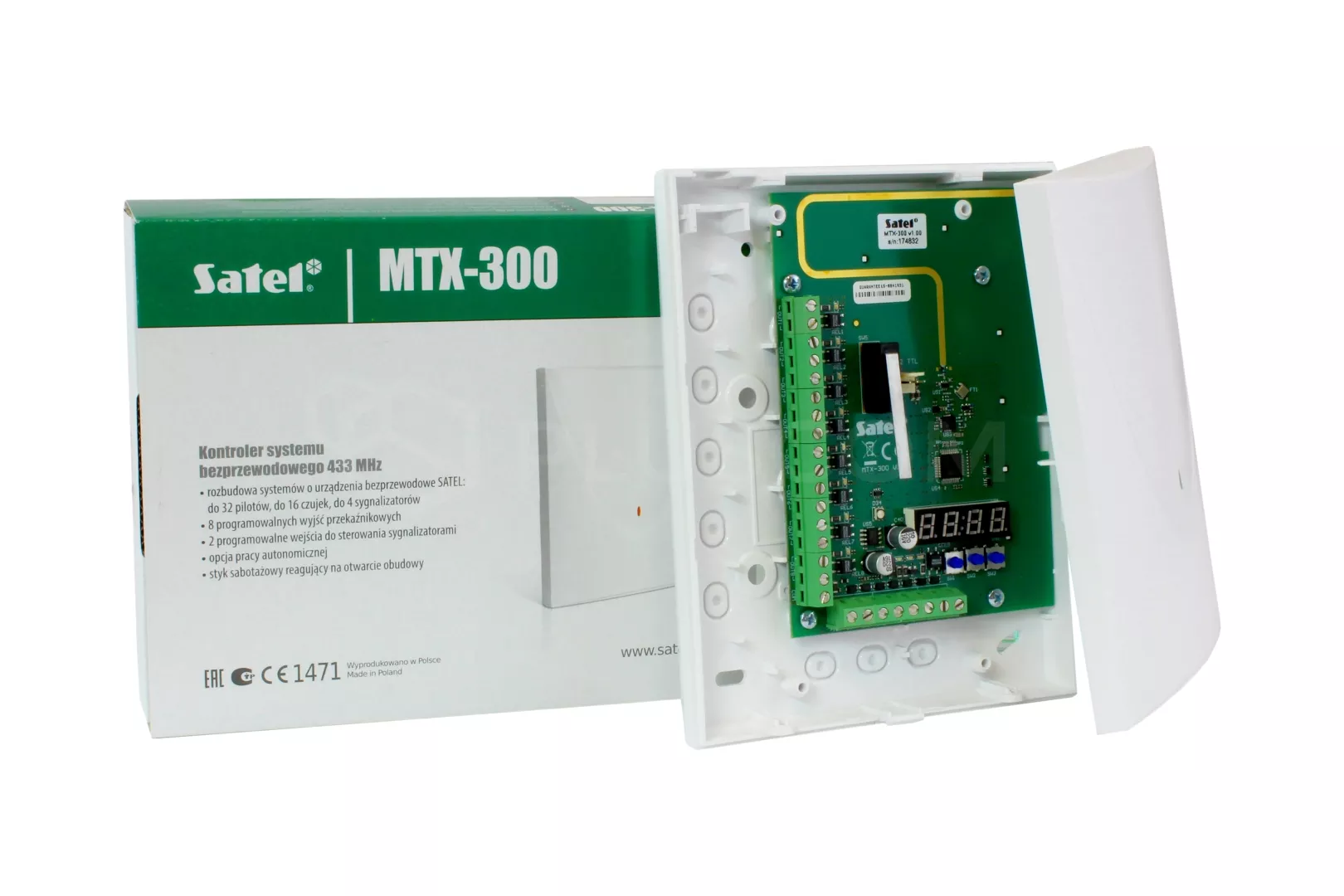

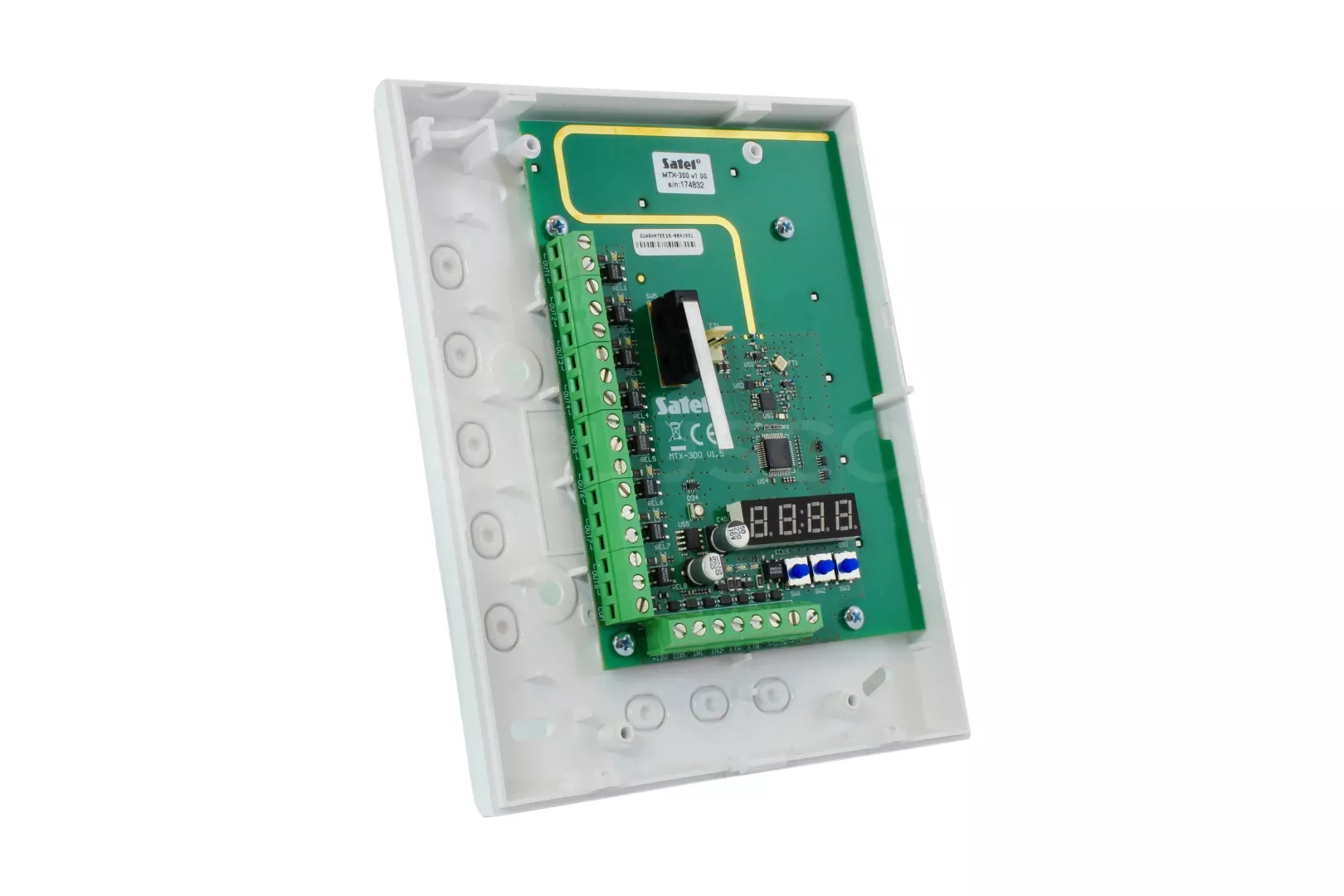

Satel MTX-300 Wireless system controller 433MHz

MTX-300 433 MHz WIRELESS SYSTEM CONTROLLER

The MTX-300 controller can be used for expansion of an alarm system or an automation system by adding wireless devices and keyfob control capability. The controller interacts with the alarm system or automation system by means of outputs and inputs/zones.
The controller supports the following devices:

• KEYFOBS (up to 32)

• • MPT-300, T-4, T-2, T-1, P-4, P-2

• DETECTORS (up to 16)

• • MFD-300 – wireless water flood detector
  • MGD-300 – wireless glass-break detector
  • MMD-300 – wireless magnetic contact
  • MMD-302 – wireless magnetic contact with input for roller shutter detector
  • MPD-300 – wireless passive infrared detector
  • MSD-300 – wireless smoke and heat detector


• SIREN (up to 4)

• • MSP-300 – wireless outdoor siren


FEATURES:

• Built-in 433 MHz radio transceiver
• Encrypted transmissions from wireless detectors.
• Two-way encrypted communication with wireless sirens.
• Transmissions from keyfobs dynamically secured with KeeLoq rolling code.
• Up to 6 control functions available from keyfob.
• 8 programmable relay outputs:
• control by means of detectors or keyfobs,
• ability to simultaneously control several outputs with a single keyfob button.
• Relay output to provide information about tamper of controller and wireless devices.
• OC type output to indicate loss of communication with wireless devices.
• OC type output to indicate low battery in keyfob, detector or siren
• 2 programmable inputs to control sirens
• 4-character LED display for easy programming and diagnostics
• Programming by means of on-board buttons or MTX SOFT program
• Tamper memory
• Opto-isolated electronic relays
• Tamper switch activated upon cover removal.
