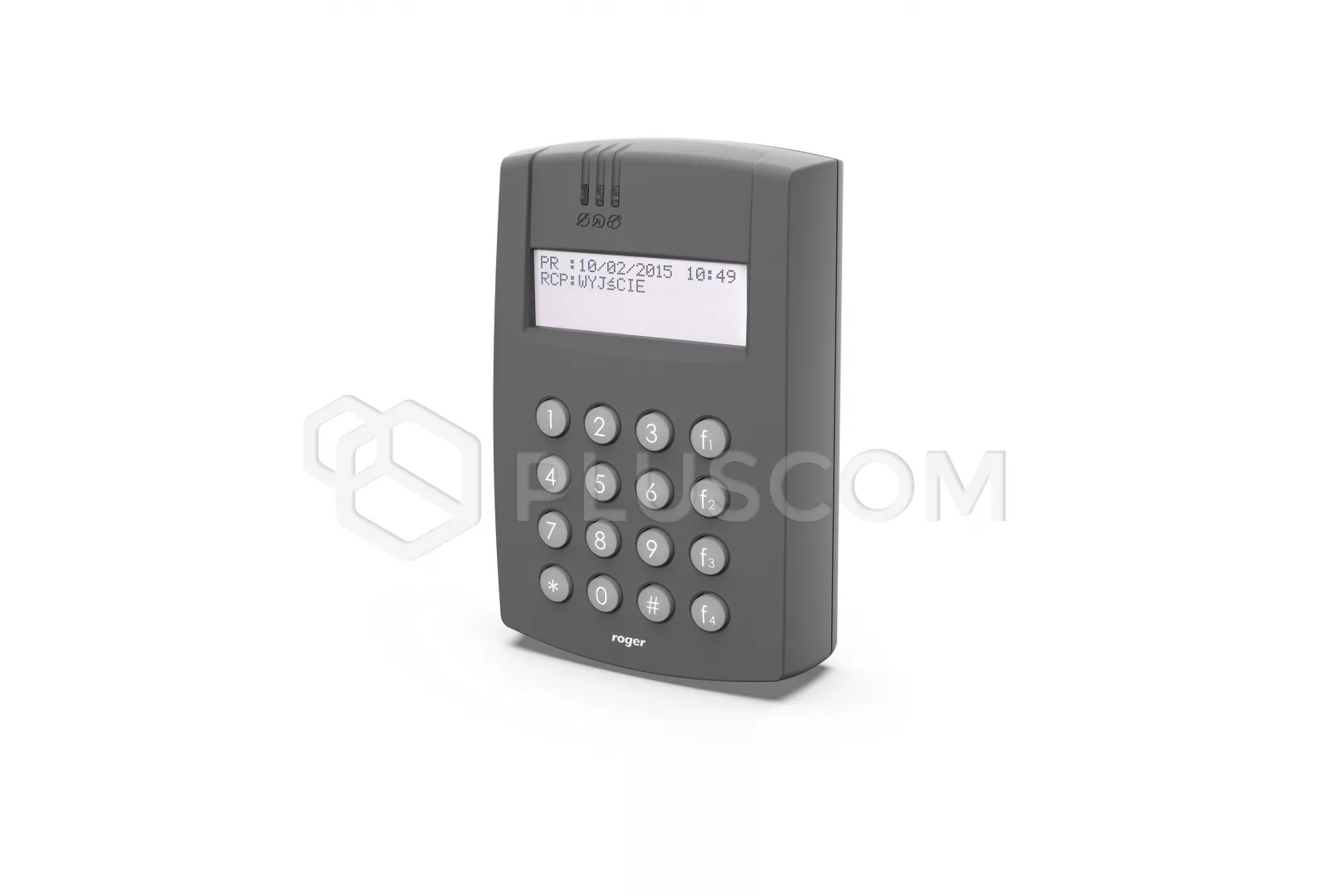

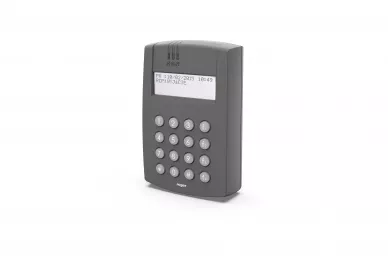

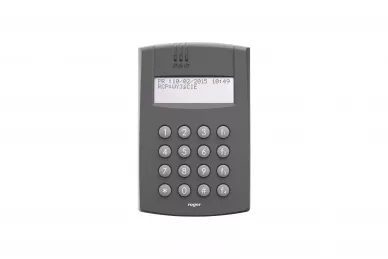

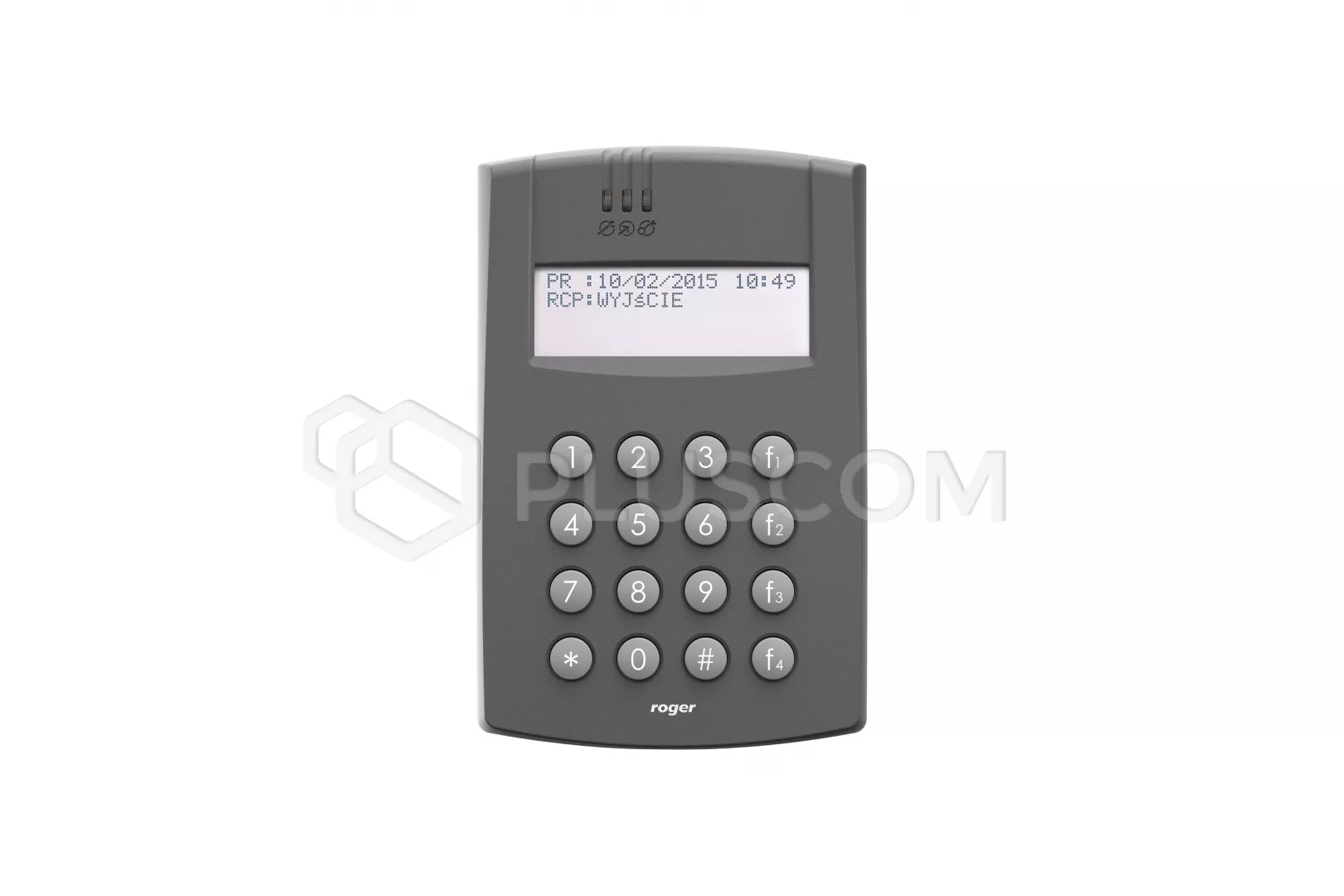

Roger PR602LCD-DT-I Indoor access controller

Roger PR602LCD-DT-I Indoor access controller with built-in EM 125 kHz and 13.56 MHz MIFARE proximity readers, keypad and LCD display

PR602LCD-DT-I access controllers may operate as standalone access control units or in integrated access control system with CPR32-SE-BRD network controller. In standalone mode PR602LCD-DT-I autonomously supervise two-way door passage and do not need to communicate with PC nor any other equipment, events are registered in their internal buffer and time related functions are managed by built-in real-time clock.

System based on PR602LCD-DT-I controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN. PR602LCD-DT-I is recommended to be use as T&A terminal for work time logging purposes. Unit is equipped with 4-line LCD display and a set of 4 programmable function keys, which can be used as register type choice buttons (entrance, exit, on-duty exit, etc.).

FEATURES:

• built-in EM 125 kHz and 13.56 MHz MIFARE readers
• connection of one external reader (two way door control)
• support for Wiegand, Magstripe, PRT (Roger) readers and others
• 3 programmable NO/NC inputs
• 2 programmable 1 A transistor outputs
• 1 programmable 1.5 A relay output
• RS485 communication bus
• free topology of communication bus (star or tree topology allowed)
• 4000 users
• 99 time schedules
• 250 user groups
• built-in 32 000 event buffer
• local APB
• global APB (requires CPR in the system)
• global Alarm Zones (requires CPR32-SE-BRD in the system)
• operation with XM-2 I/O extension module
• 32 floor lift control (requires XM-8 I/O extension module)
• integration with burglary system through I/Os
• door operating modes: Normal, Locked, Unlocked, Conditional Unlocked
• user identification: Card or PIN, Card and PIN, Card only, PIN only
• advanced access options: Two Persons, High Security and others
• quick user editing (less than 5 seconds per each controller in system)
• system can be divided into separate branches (networks, subsystems)
• multiple networks doesn’t increase system programming time
• advanced Time and Attendance functions
• LCD display and 4 programmable function keys
• indoor installations
• tamper

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• proximity cards: EM 125 kHz (UNIQUE) according to EM4100/4102 and 13.56MHz according to ISO14443A and MIFARE
• average current consumption: 100mA
• read range: up to 15cm
• environment class: I
• IP41
• working temperature: +5 ° C ~ +40 ° C
• weight: approx. 410g
• dimensions: 170x110x42mm
