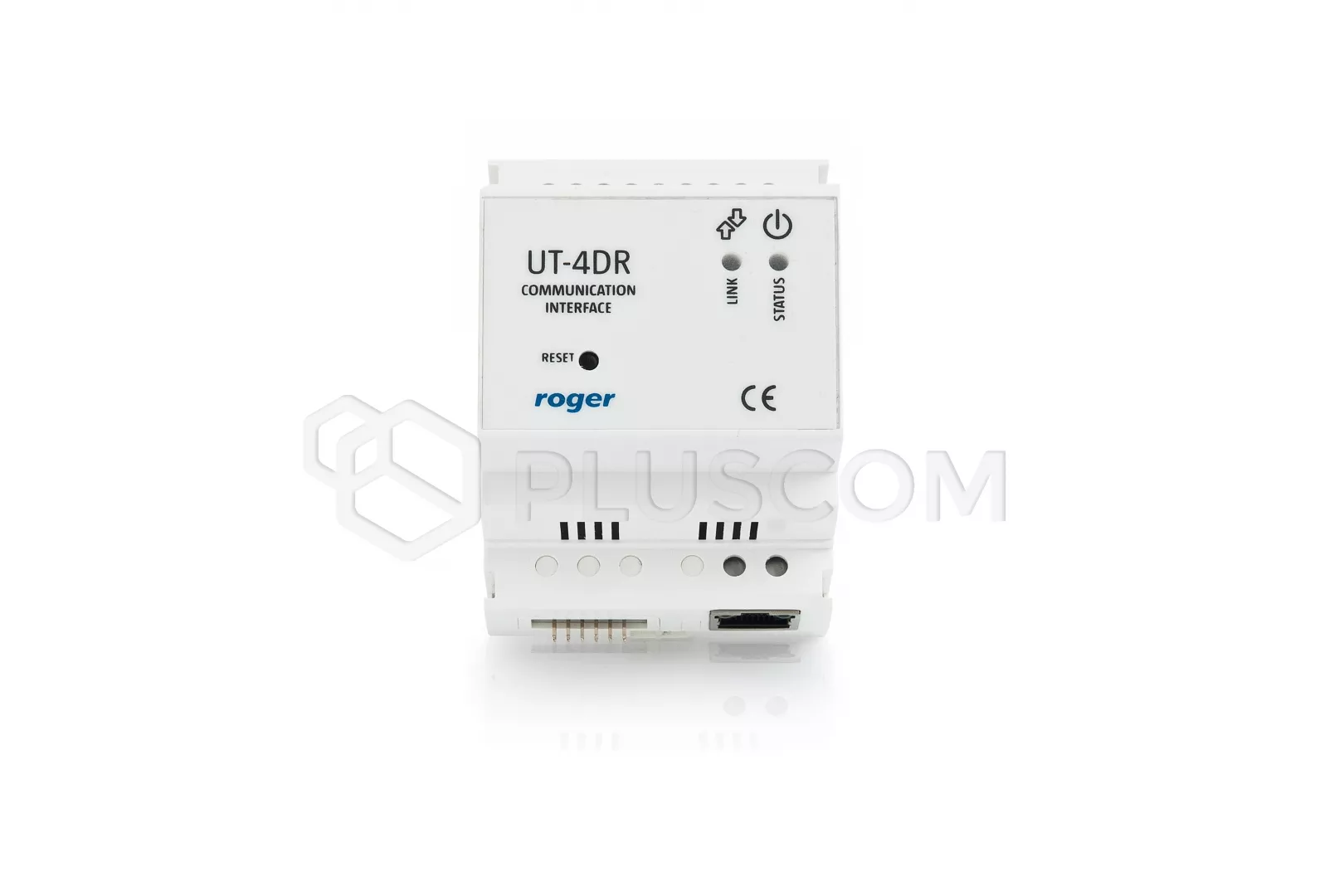

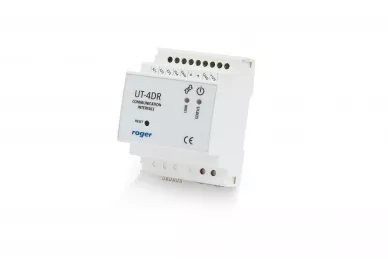

Roger UT-4DR RS485-Ethernet interface for RACS 4

Roger UT-4DR RS485-Ethernet interface for RACS 4

UT-4DR is Ethernet - RS485 interface enabling communication with PR series controllers of RACS 4 access control system through computer network. Additionally the interface is equipped with 4 universal Input/Output lines which can be managed using web browser or by means of Telnet protocol. This feature gives possibility to use the device in other applications beyond RACS 4 system as a remote I/O port managed through computer network. UT-4DR interface requires 12VDC power supply and is installed in plastic enclosure dedicated to mounting on standard DIN 35mm rail.

UT-4DR is equipped with 10BaseT Ethernet port which is used for communication with computer and other devices/systems in LAN/WAN computer network.
UT-4DR is equipped with RS485 communication port which is used for communication with PR series controllers.

Features:

• IP/Ethernet communication interface for RACS 4 system
• configuration by means of web browser
• LAN/WAN 100/10 Mb/s operation
• static or dynamic IP address
• 4 general purpose I/O lines
• 4 universal I/O lines managed by web browser or Telnet protocol
• can be used outside RACS4 system as remote I/O port
• managed by Ethernet network
• plastic enclosure for DIN rail

TECHNICAL DATA:

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• average current consumption: 55mA
• environmental class: I
• IP41
• working temperature: +5°C- +40°C
• dimensions: 62x85x73mm
• weight: 110g
