Roger PR411DR-SET Access Control Set

Roger PR411DR-SET Access Control Set

The kit includes:

• PR411DR-BRD controller
• TRP 40/16/18 mains transformer
• ME-1 metal enclosure

PR411DR-SET is a ready-made set for a single transition used in frames RACS access control system 4. Access control system can be managed locally via COM / USB serial ports or remotely over the network computer WAN / LAN.
It can be used in both autonomous and network installations, up to 1000 users

KEY FEATURES:

• connection of two PRT series readers and/or two Wiegand 26-66 bit readers
• built-in 1.5 A buffered supply module
• eight programmable NO/NC inputs
• two programmable 1 A transistor outputs
• one programmable 1.5 A/30 V relay output
• one programmable 5 A/230 VAC relay output
• RS485 communication bus
• free topology of communication bus (star or tree topology allowed)
• 1000 users
• up to 8 “guest” type users on each controller in the system
• 99 time schedules (CPR32-SE required)
• 250 user groups
• 250 000 event buffer (CPR32-SE required)
• local APB
• global APB (CPR required)
• alarm Zones (CPR required)
• operation with XM-2 I/O extension module
• integration with burglary system through I/Os
• door operating modes: Normal, Locked, Unlocked, Conditional Unlocked
• fast programming (15 seconds per each controller in system)
• quick user editing (up to 3 seconds per each controller in system)
• integration of multiple access networks in one system (up to 250)
• multiple networks doesn’t increase system programming time

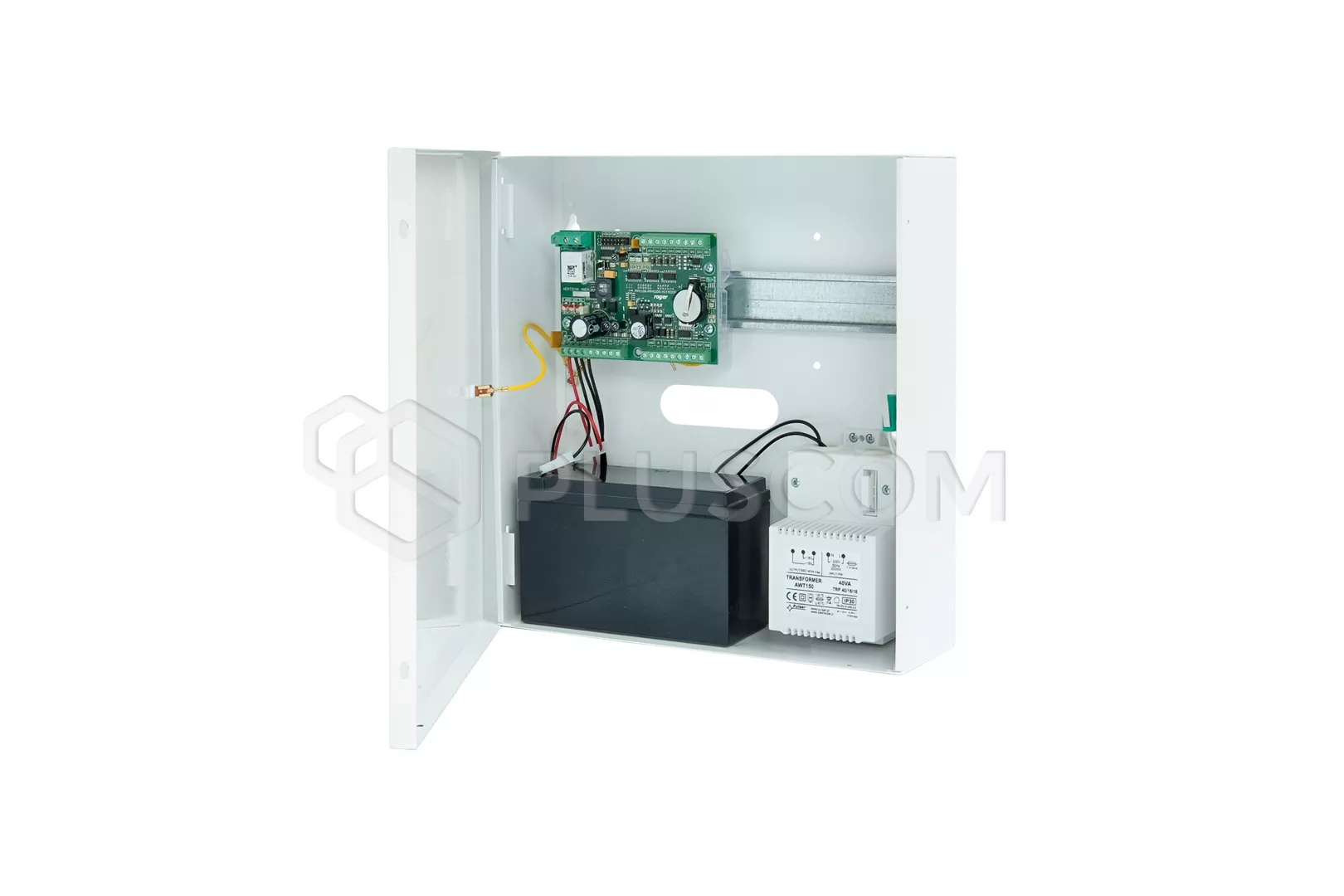

The access controller is housed in a metal housing ME-1, which has space for a 7Ah / 12V emergency battery. The metal casing is equipped with a tamper protection switch and factory-fitted TRP 40/16/18 mains transformer.

TECHNICAL DATA

• power supply: 230 VAC (+/- 15%), 50 Hz
• anti-sabotage protection (tamper)
• space for battery: 7Ah / 12V
• closing: 4 screws around the perimeter of the enclosure door
• temperature pract: + 5 ° C - + 40 ° C
• dimensions: 285.0 x 295.0 x 88.0 mm
• weight: ≈3500 g
