Roger ME-43 Metal enclosure

147,34 EUR including 20.00% VAT
Product code: #32995
Manufacturer: Roger
  • For RACS 5 modules and devices
  • Place on the battery 12V/17Ah
  • 2 x DIN rail 396 mm
  • Dimensions: 398 × 545 × 100 mm
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MC16-HRC-2 Hotel access controller module Roger MC16-LRC-32 Locker Access Controller Roger MC16-PAC-ST-1 Physical Access Controller Roger MC16-BAC-16 Building Automation Controller Roger MCX8-BRD I/O Expander Roger MC16-LRC-16 Locker Access Controller Roger MC16-PAC-EX-4 Physical Access Controller Roger ML-1 Mechanical lock Roger MCX4D Door Expander Roger MC16-HRC-4 Hotel Room Access Controller

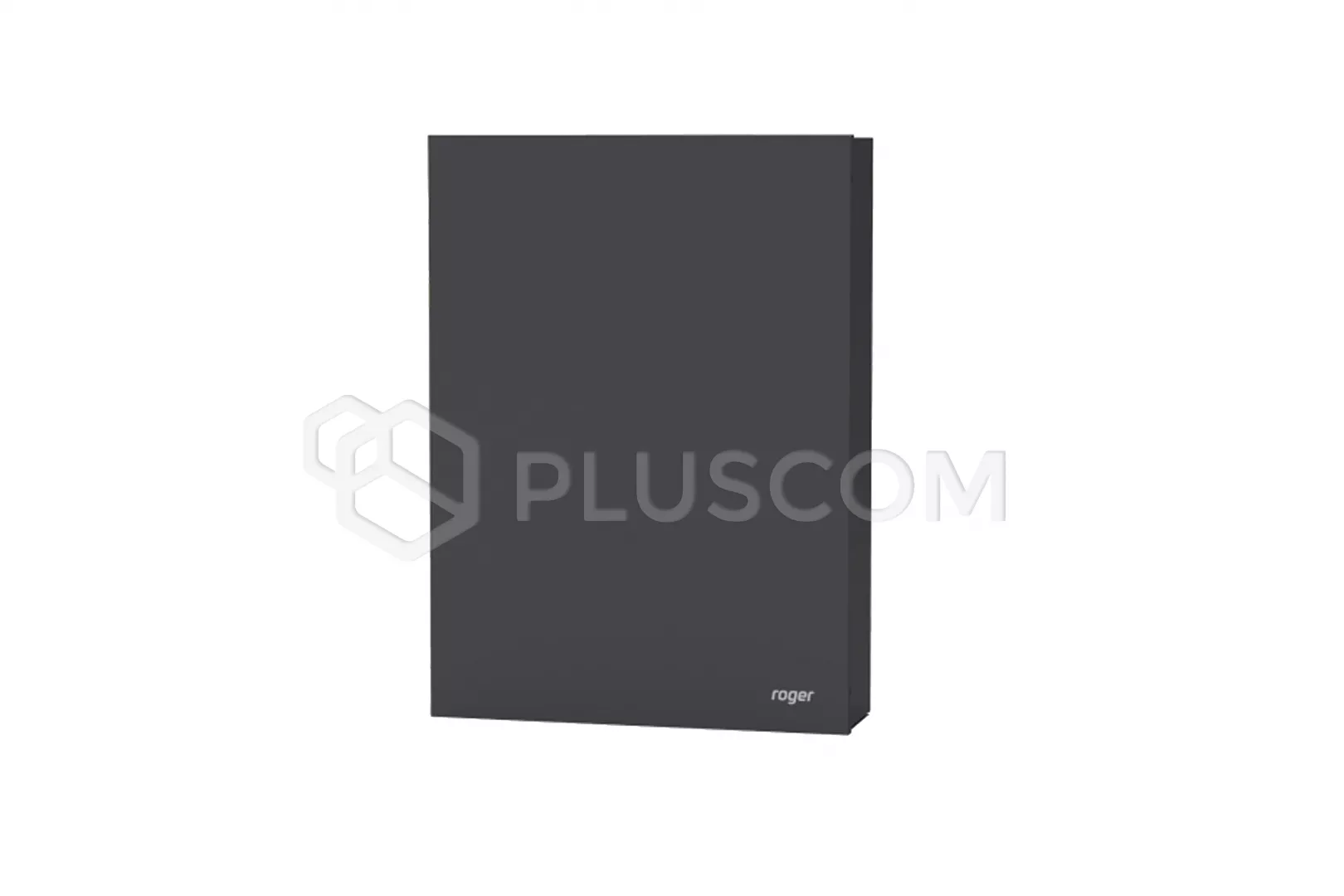

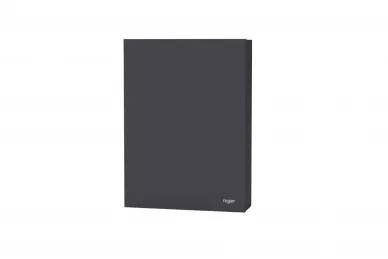

Roger ME-43 Metal housing for RACS 5 system modules and devices

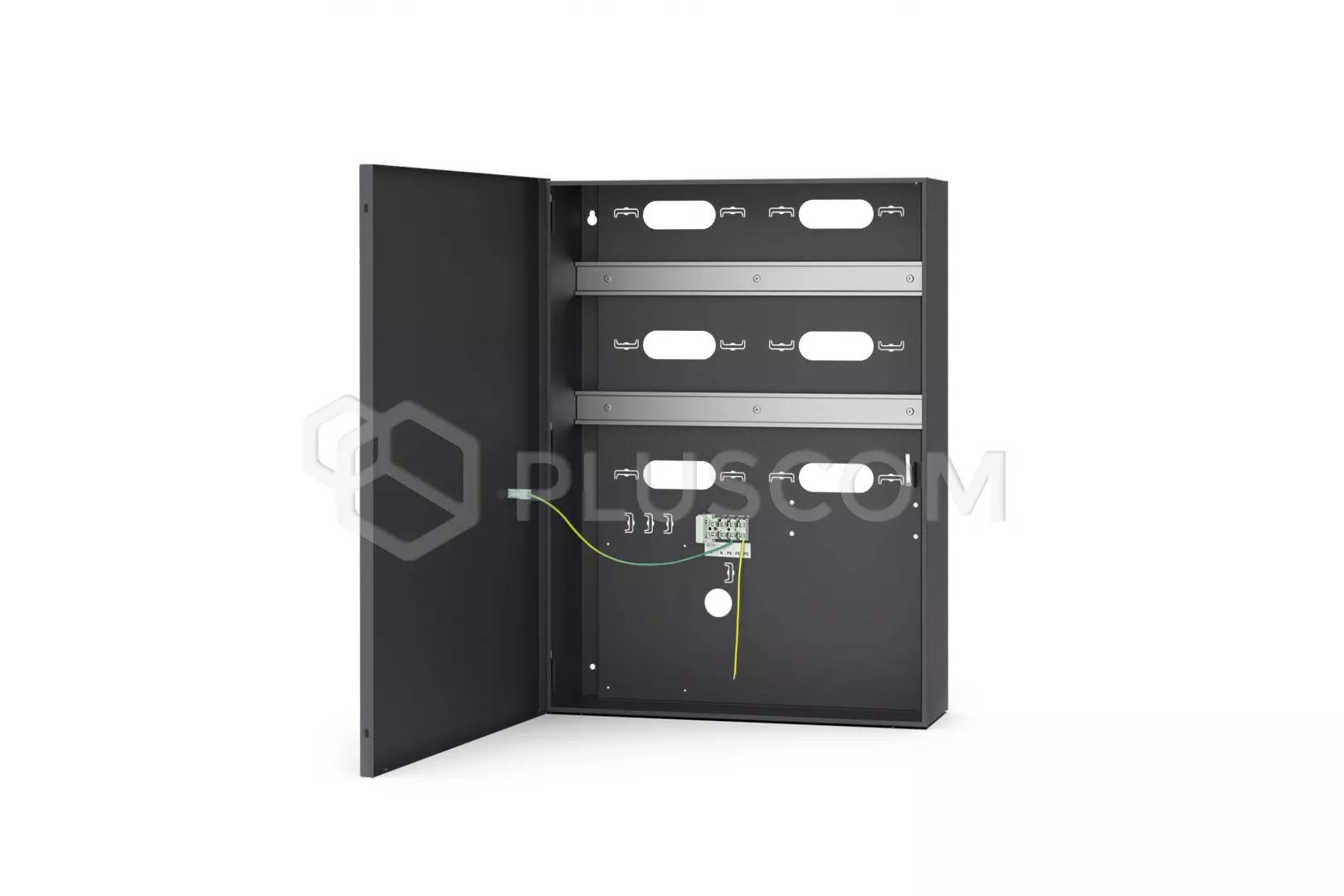

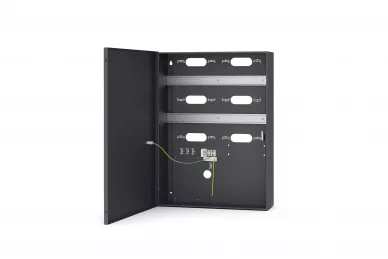

The ME-43 enclosure is dedicated to RACS 5 modules and devices which require installation on DIN rail along with a 17Ah battery. The enclosure is equipped with 2 DIN rails, tamper contact and main fuse switch. Access to the internal space of the enclosure is protected by a door fixed by screws. Optionally, the door can be equipped with a key lock. The ME-43 is made of a metal sheet painted with an anthracite grey powder coating.

TECHNICAL DATES:
  • Protection: 5A/250VAC fuse switch
  • Anti-sabotage protection (Tamper): NO/NC switch; 50mA/50VDC
  • DIN rail: 2 × 396 mm
  • Material: DC01 sheet metal; 0.8mm; corrosion protection
  • Color: anthracite gray RAL 7016 Matt
  • Battery space: 17Ah battery
  • Ingress protection rating: IP20
  • Internal dimensions: 398 × 545 × 100 mm
  • External dimensions: 405 x 552 x 121 mm
  • Weight: 4,9 kg
Download
Datasheet 0.19 MB
CE Declaration 0.1 MB
User manual 1.75 MB
