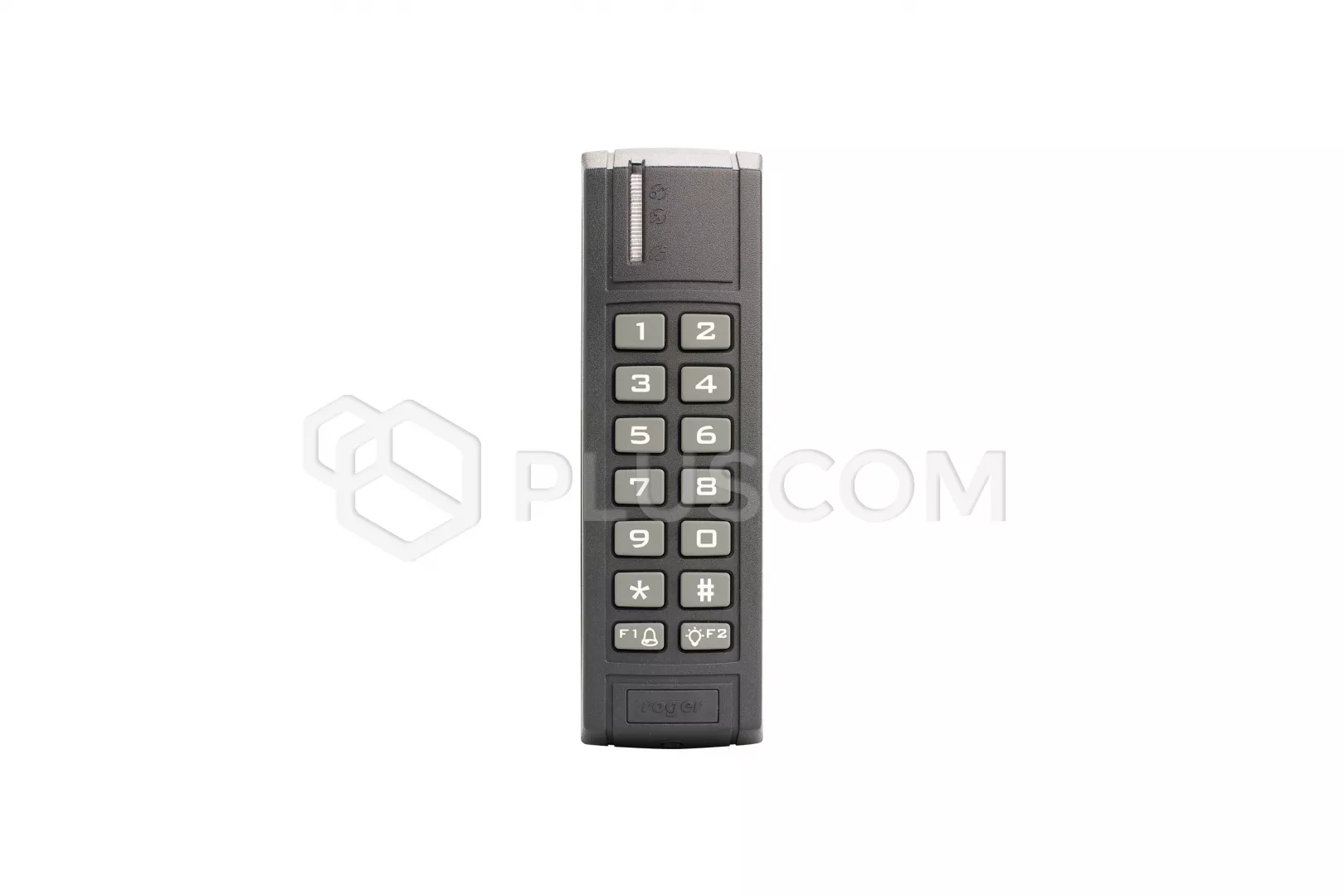

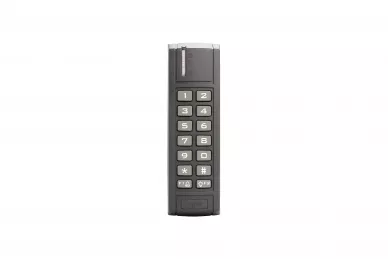

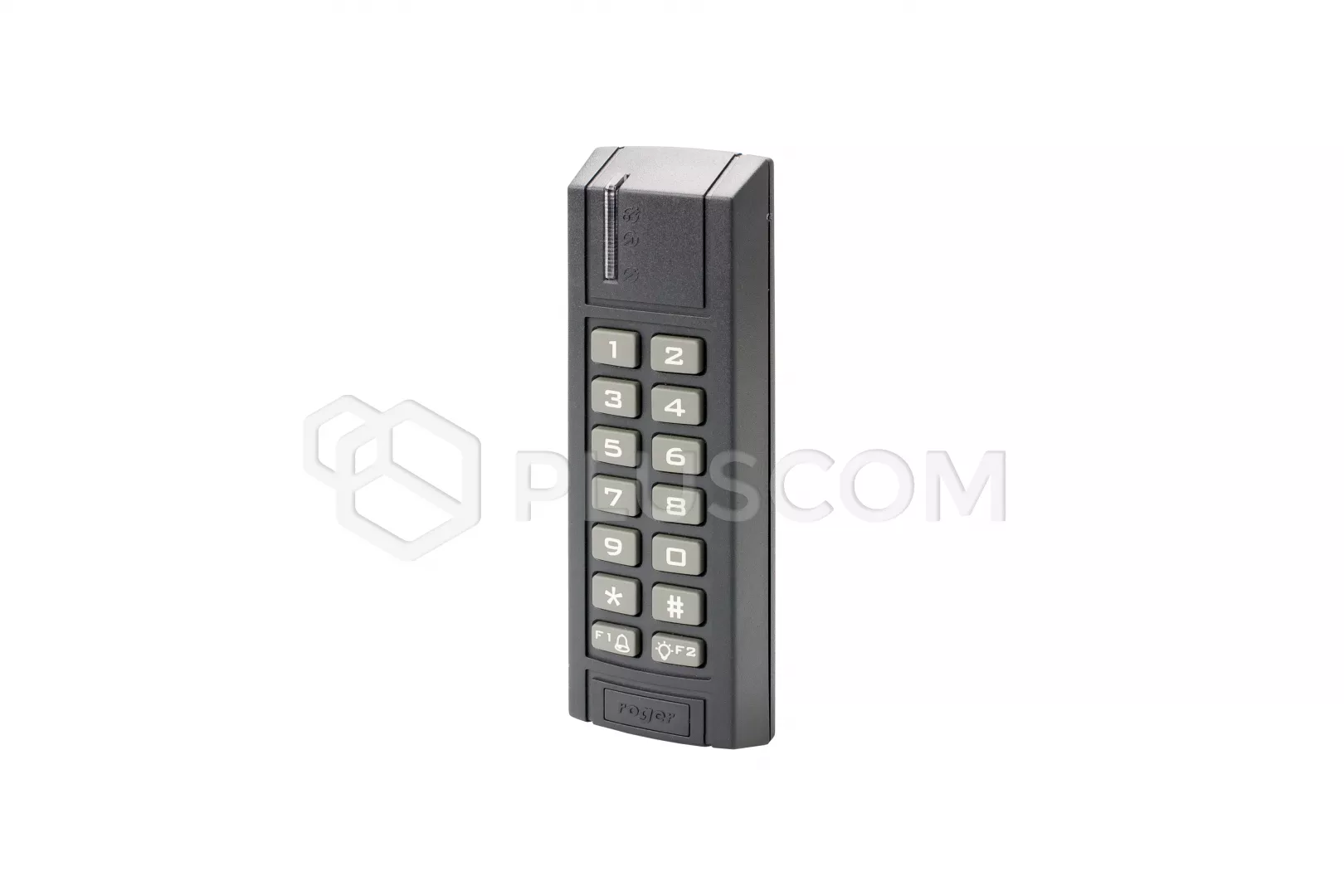

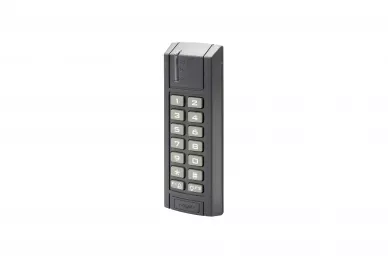

Roger MCT12M Proximity Reader with keypad

Roger MCT12M Proximity Reader with silicone keypad with backlight

The MCT12M is a series of access terminals dedicated to RACS 5 system. Depending on their versions, devices enable identification of users by PINs and/or 13,56 MHz MIFARE Ultralight/Classic proximity cards. MCT12 is connected to access controller through RS485 interface. Terminal can be installed in outdoor locations without any additional protection measures.

The terminal requires power supply voltage in range of 11-15VDC. It can be supplied from MCX2D/MCX4D expander of MC16-PAC-KIT, from MC16 access controller (e.g. TML output) or from dedicated power supply unit.

The communication method with MC16 access controller is provided with RS485 bus which can encompass up to 16 devices of RACS 5 system, each with unique address in range of 100-115.

FEATURES

• RACS 5 system access terminal
• Silicone keypad with backlight
• 2 function keys
• 13,56 MHz MIFARE Ultralight/Classic proximity cards
• 3 LEDs indicators
• Buzzer
• RS485 interface
• Tamper protection
• Outdoor environment
• Connection cable

Terminal is equipped with three LED indicators which are used to signal integral functions and they can be additionally programmed with other available functions within high level configuration (VISO).

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• average current consumption: 85mA
• proximity cards: 13,56 MHz MIFARE Ultralight/Classic
• read range: up to 7cm
• Distance: 1200m maximal cable length for RS485 bus between controller and reader
• environment class: IV
• IP65
• working temperature: -25 ° C ~ +60 ° C
• dimensions: 152.5x46x23mm
• weight: approx. 150g
