Roger MCI-5 Communication Interface

65,76 EUR including 23.00% VAT
Product code: #25893
Manufacturer: Roger
  • Communication with RACS access control system
  • Converter between the RS485 protocol and the Wiegand protocol
  • 3 signaling LEDs
  • 3 NO/NC input lines
  • IP20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MCT82M-IO-HR Hotel Room Entry Terminal Roger MCT82M-IO-CH Access terminal with card holder Roger MCT82M-IO Access terminal with keypad and on-board I/Os Roger MCT82M-BK Proximity Reader MIFARE Roger MCT82M Access terminal with keypad Roger OSR80M-BLE Proximity Reader Roge MCT80M-BLE Bluetooth Access Terminal Roger MCT84M-BK-QB QR Reader Roger RUD-1 Portable USB-RS485 communication interface Roger MCT86M-IO-CH-HR Proximity Reader MIFARE

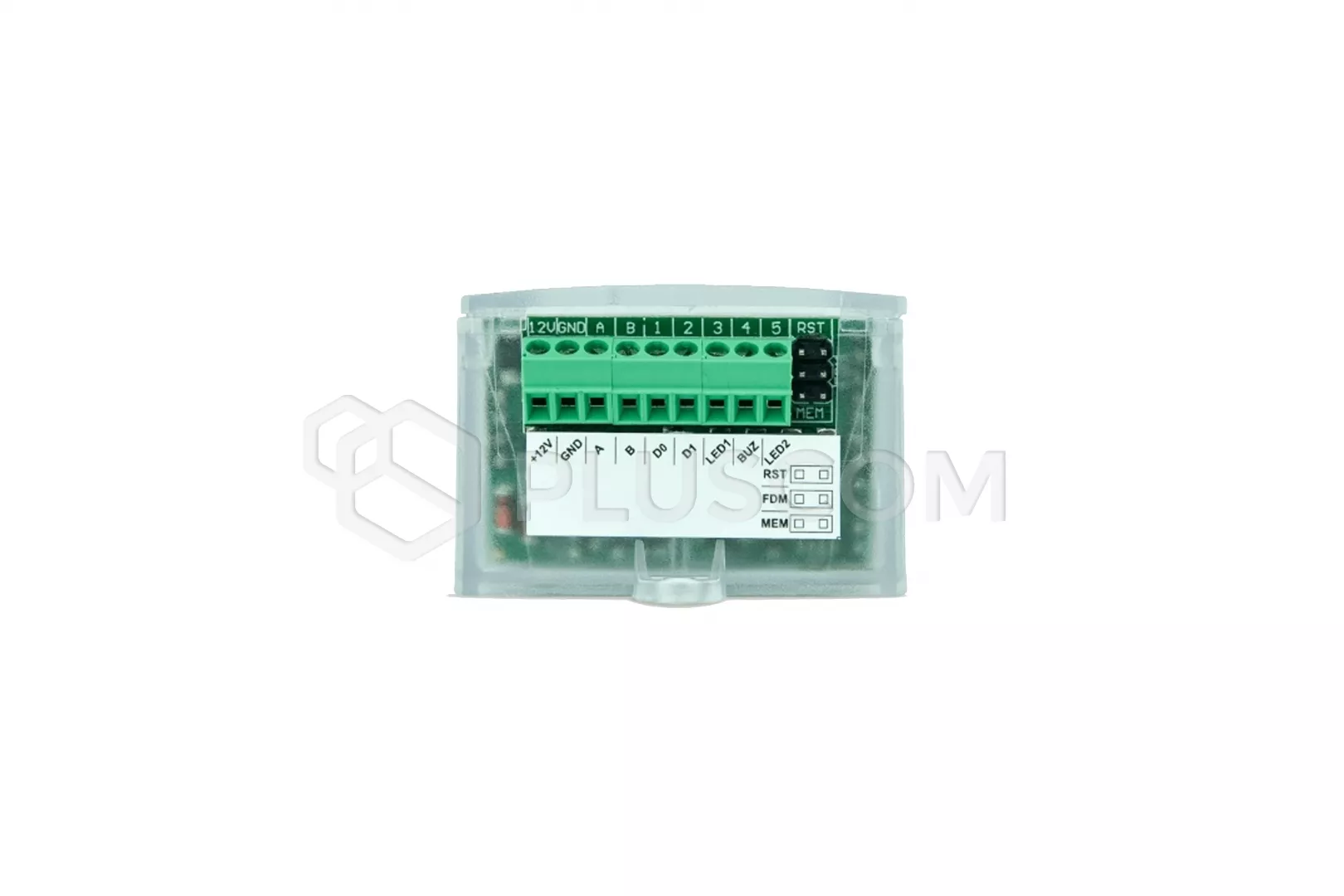

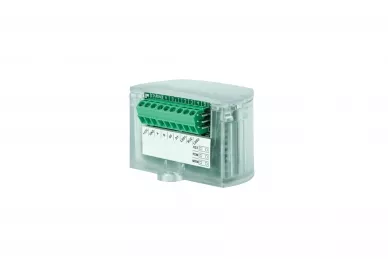

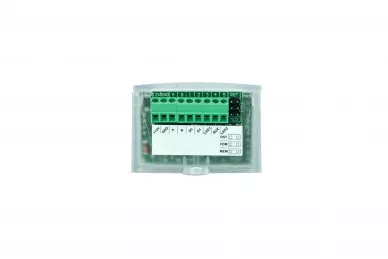

Roger MCI-5 Communication Interface

The MCI-5 interface acts as a converter between the RS485 (EPSO3) protocol and Wiegand protocol. Thanks to the interface, connection is possible MCT series reader of the RACS 5 system to a controller in another system, if any supports Wiegand standard.
Brand new interface in most cases it does not require low-level configuration and can function based on default settings (Wiegand 26 bit mode). Configuring settings low-level data from the RogerVDM program requires the use of an interface RUD-1.

SPECIFICATIONS:
  • 12 VDC power supply
  • Wiegand interface (26, 34, 42, 66 bit) to the controller
  • RS485 interface to reader
  • 3 signaling LEDs
  • plastic housing

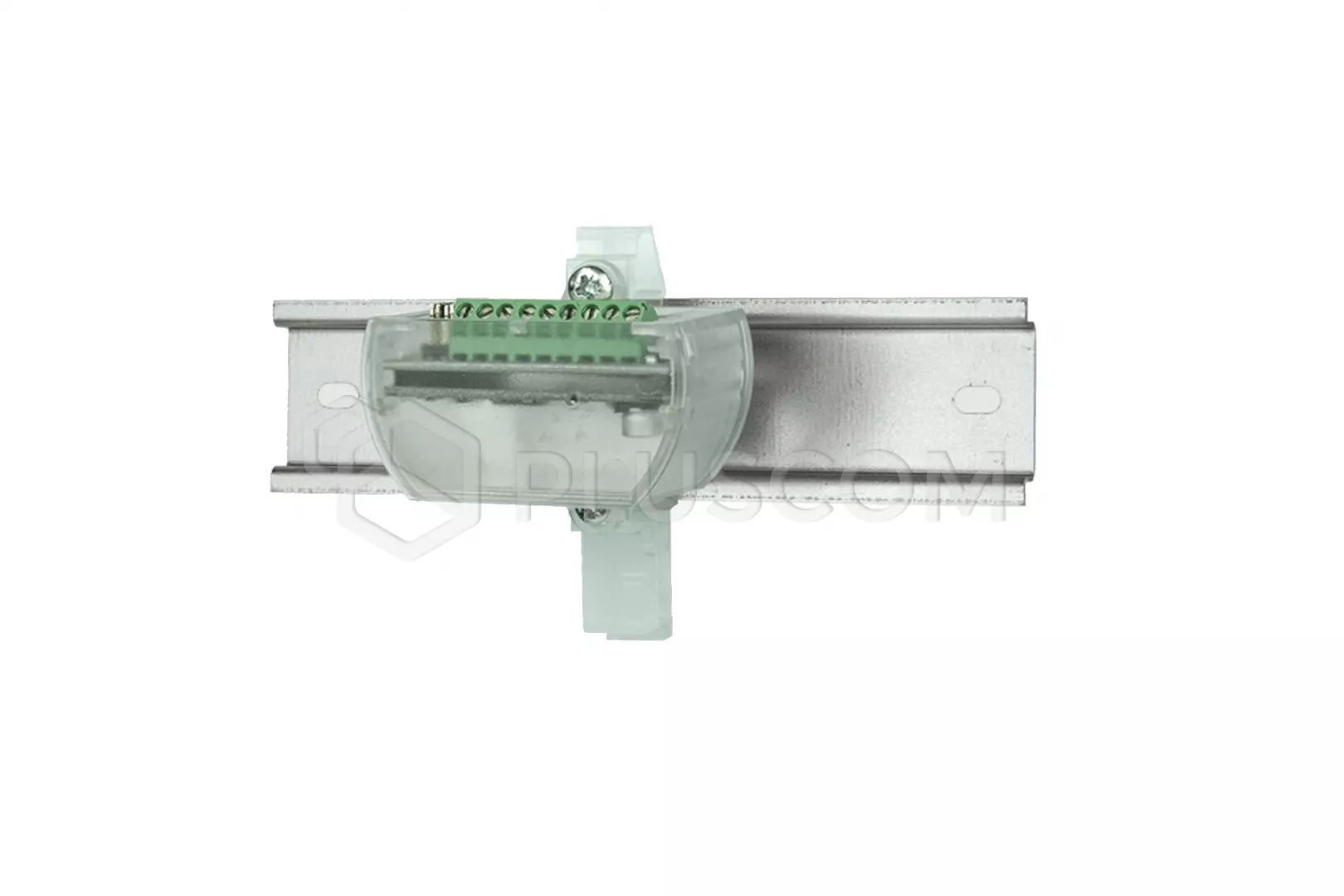

  • possible mounting on a DIN rail
  • dimensions: 37.0 x 55.0 x 47.0 mm
Download
Data sheet 0.2 MB
Manual 0.36 MB
