Nice Robus 250HS R10 Gear motor with built-in control unit HI-SPEED

Nice Robus 250HS R10 gear motor with built-in control unit

DRIVE PURPOSE: ROBUS 250HSR10 The electromechanical actuator enables the automation of sliding gates with: up to 250kg max length 8m maximum number of cycles per hour: 20

Nice Robus 250HS HI-SPEED

ROBUS 250HS - HI-SPEED is a version of the drive where the travel speed is higher by 40-60% from the standard product. Maximum linear speed 0.4m / s causes the gate with a width of 4 m to be opened in about 10 seconds.

The most important advantages of the drive and the set include:

User-friendly: the Nice BlueBUS technology, enables to power and control a maximum of seven couples of photocells from the MoonBus series using two wires only.

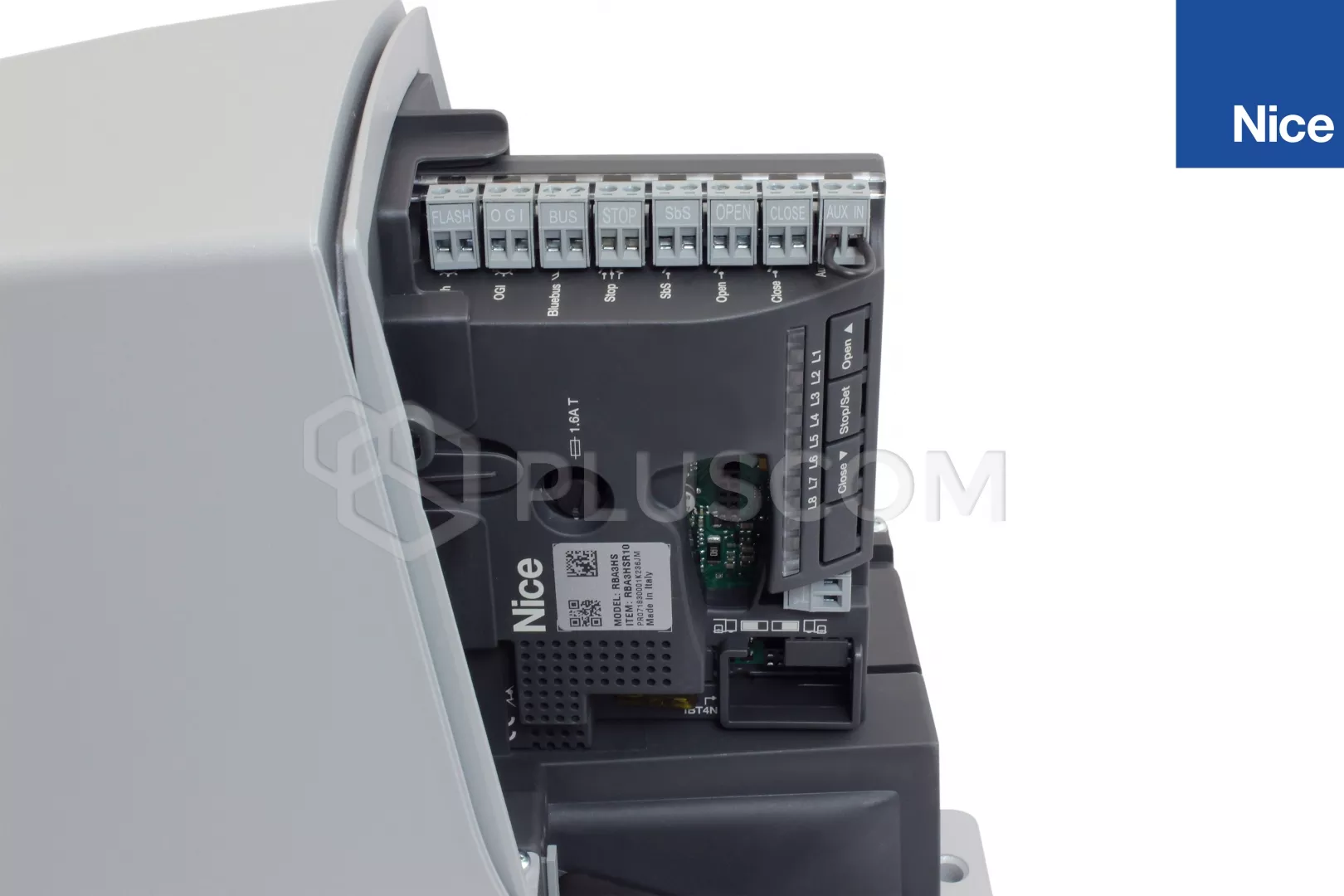

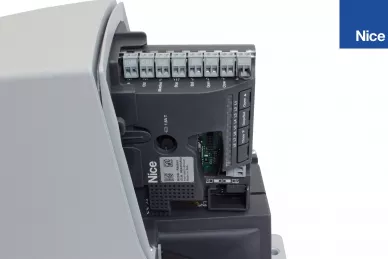

Practical:  the control unit and PS124 buffer battery (optional) can be connected by means of a simple connector and can be housed directly inside the motor.
Advanced: RB250HS is equipped with a temperature sensor: adapt the motor power to the climatic conditions and at the same time thermal cut-out. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.
Intelligent: thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a  flashing light.8 programming levels.
Safe: acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.
Sturdy: base and release in pressure die cast with easy to open handle.
Very quiet: gear motor on bearings.

TECHNICAL PARAMETERS:

• power supply: 230V AC
• absorption: 2,1A
• power: 430W
• motor supply: 24V DC


• maximum torque: 9Nm
• force: 310N
• speed: 0.4m / s


• protection level: IP44
• working temperature: -20 ° C ... 50 ° C
• dimensions: 330x195x277mm
• weight: 8kg
