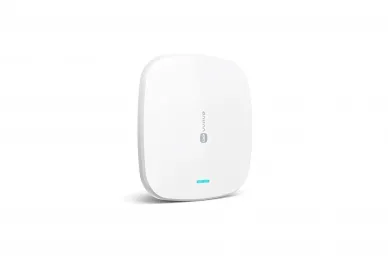

Satel Smart HUB BE WAVE system controller

389,21 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #37298
Manufacturer: Satel
  • Without GSM module
  • Support for up to 128 BE WAVE wireless devices
  • Up to 50 users
  • Memory of 8000 events
  • Built-in Wi-Fi and Ethernet (LAN) port
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Satel Smart HUB BE WAVE system controller

The BE WAVE system combines automation functions home and protection functions against burglary, fire or other accidental events.

Smart HUB is a device that is the central point of the BE WAVE system. It is powered by 230V AC, which allows a quick connection to any socket in the building. In the event of a main power failure, the device will draw power from the built-in 18650 3.6V battery.

The controller has a number of functions that increase the level of security and comfort of managing the alarm system. The ABAX 2 technology it uses ensures security, reliable communication, long range and advanced energy management mechanisms.

Smart HUB properties

  • Support up to 128 BE WAVE wireless devices:
    • operation in the 868 MHz frequency band
    • AES encrypted two-way radio communication
    • diversification of transmission channels - 4 channels enabling automatic selection of the one that will allow transmission without interference with other signals
    • additional transmission channel for receiving photos from the Motion Detector Cam
  • Possibility to assign devices to 50 rooms
  • Up to 50 users
  • Be Wave mobile application for system management:
    • connect via a local network or connect via the Internet using
    • SATEL server
    • system programming
    • system control
    • system diagnostics
    • can be installed on 5 different user's mobile devices
  • Possibility to enable full or partial protection
  • Up to 50 scenes and routines:
    • simplification of controls thanks to scenes
    • automation of system operation thanks to routines
  • Memory of 8000 events
  • Event notifications using push
  • Monitoring:
    • event monitoring to two monitoring stations
    • support for Contact ID and SIA communication formats
  • Possibility to update the software of the controller and devices in the system
  • Built-in Ethernet (LAN) port
  • Built-in Wi-Fi:
    • operation in the 2.4 and 5 GHz bands
    • IEEE 80.11 b/g/n (2.4 GHz) / IEEE 802.11 a/n (5 GHz) standards
  • LED indicator
  • 230 V AC power supply
  • Battery as emergency power supply
  • Battery charging system
  • Checking the battery condition and disconnecting a discharged battery
  • Tamper protection against opening the housing and against removing it from the base
Download
User manual 2.14 MB
