Satel AUT-200 Wireless Universal Transmitter

45,97 EUR including 23.00% VAT
Product code: #44008
Manufacturer: Satel
  • Allows the use of wired detectors in a wireless system
  • 2 NC inputs for connecting a sensor
  • 3V DC power output
  • Built-in temperature sensor
  • LED indicator
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACU-220 ABAX 2 Wireless system controller Satel ACU-280 ABAX 2 Wireless system controller ARU-200 radio signal retransmitter Satel Smart HUB Plus LV BE WAVE System Controller Satel Smart HUB PLUS BE WAVE system controller Satel Smart HUB BE WAVE system controller

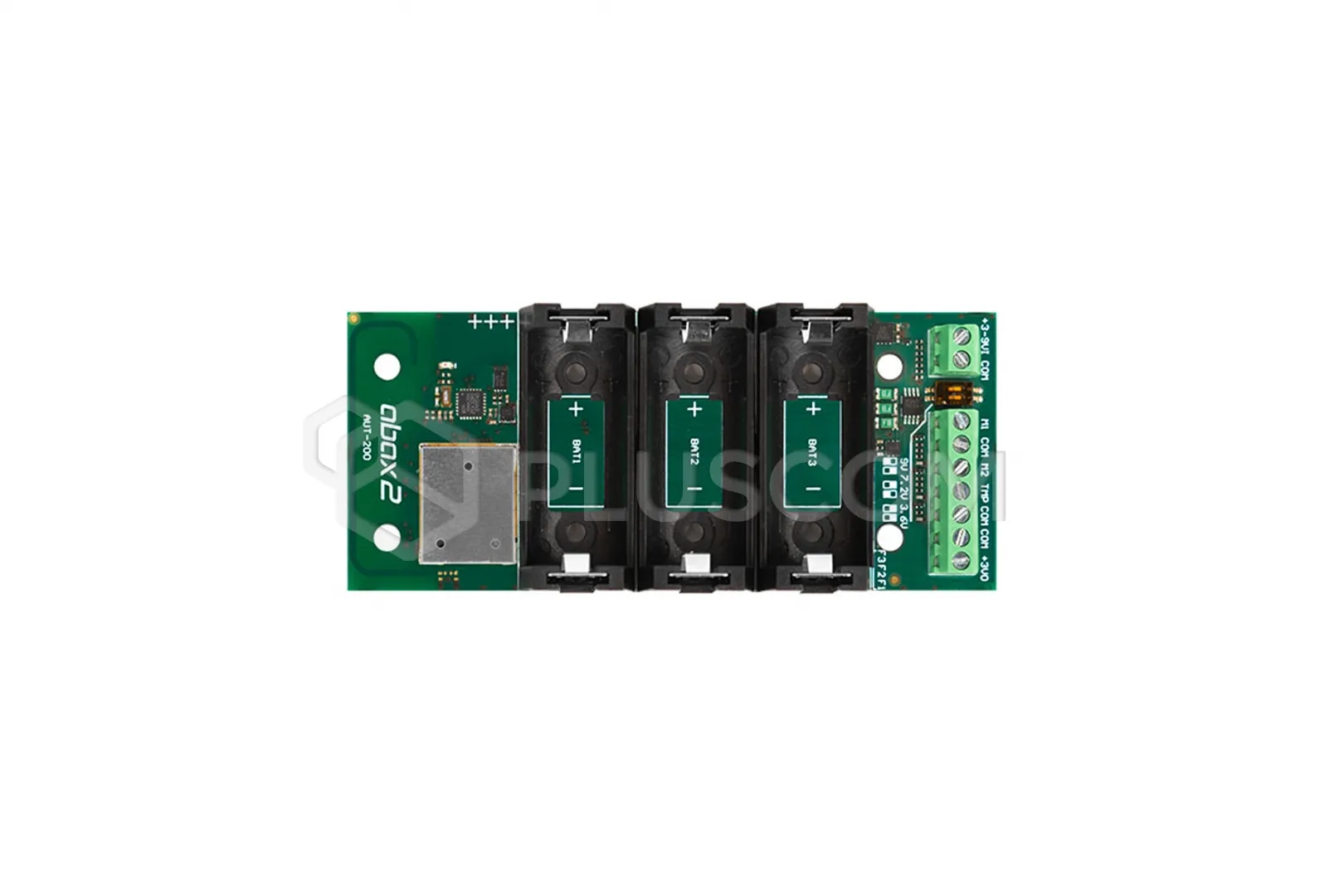

Satel AUT-200 Wireless Universal Transmitter


The AUT-200 transmitter enables the use of wired detectors in a wireless system. It is designed to operate as part of the two-way ABAX 2 wireless system.
Supported by:
  • ACU-220 / ACU-280 controller (firmware version 6.09 or newer)
  • ARU-200 repeater
The transmitter connects to the controller at regular intervals to inform it of its status (periodic communication). Additional communication may result from an alarm.

OPERATING MODES:
Active – information about each alarm is sent immediately.
Passive – only information about a tamper alarm is sent immediately. This mode extends battery life. The operating mode is activated remotely. If the device is part of a SATEL alarm system (e.g., INTEGRA, VERSA, PERFECTA 64 M, etc.), the operating mode may depend on the partition status (partition disarmed – passive mode; partition armed – active mode) – for more information, refer to the ABAX 2 controller manual.
Energy saving mode (ECO) – if you want to extend the battery life, you can enable the ECO option in the device. When the ECO option is enabled, periodic communication occurs every 3 minutes. This can extend battery life by up to four times.
Test Mode - facilitates device testing by enabling the LED indicator. The procedure for activating and terminating test mode is described in the ABAX 2 controller manual.

FEATURES:
  • 2 NC inputs for connecting a detector
  • NC input for connecting a detector's tamper protection
  • 3 V DC power output
  • Compatibility with:
    • ACU-220 and ACU-280 controllers
    • BE WAVE Hybrid control panels
    • BE WAVE Smart HUB controllers
    • ARU-200 repeater
  • Encrypted two-way radio communication in the 868 MHz frequency band (AES standard)
  • Transmission channel diversity – 4 channels enable automatic selection of the one that allows for transmission without interference with other signals in the 868 MHz frequency band
  • Remote update Transmitter software
  • Remote configuration
  • Built-in temperature sensor (measuring range: -10°C...+55°C)
  • LED indicator
  • Power supply
    • Up to 3 CR123A 3V batteries
    • External power supply 3...9 V DC
  • Battery status/external power supply control
  • ECO option for extended battery life
  • Displacement sensor (sabotage protection)
