Satel APC-200 S Wireless Ceiling PIR Motion Detector (Surface Mounted)

82,85 EUR including 23.00% VAT
Product code: #44004
Manufacturer: Satel
  • Installation height: 2.4 - 3.5 m
  • Maximum detection area: ø 10 m [79 m2]
  • Detectable movement speed: 0.3 - 3 m/s
  • Radio communication range in open space: up to 1800 m
  • GRADE 2
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACU-220 ABAX 2 Wireless system controller Satel ACU-280 ABAX 2 Wireless system controller ARU-200 radio signal retransmitter Satel APC-200 R Wireless Ceiling PIR Motion Detector (Recessed) Satel Smart HUB Plus LV BE WAVE System Controller Satel Smart HUB PLUS BE WAVE system controller Satel Smart HUB BE WAVE system controller

Satel APC-200 S Wireless Ceiling-Mounted PIR Motion Detector for Surface Mounting

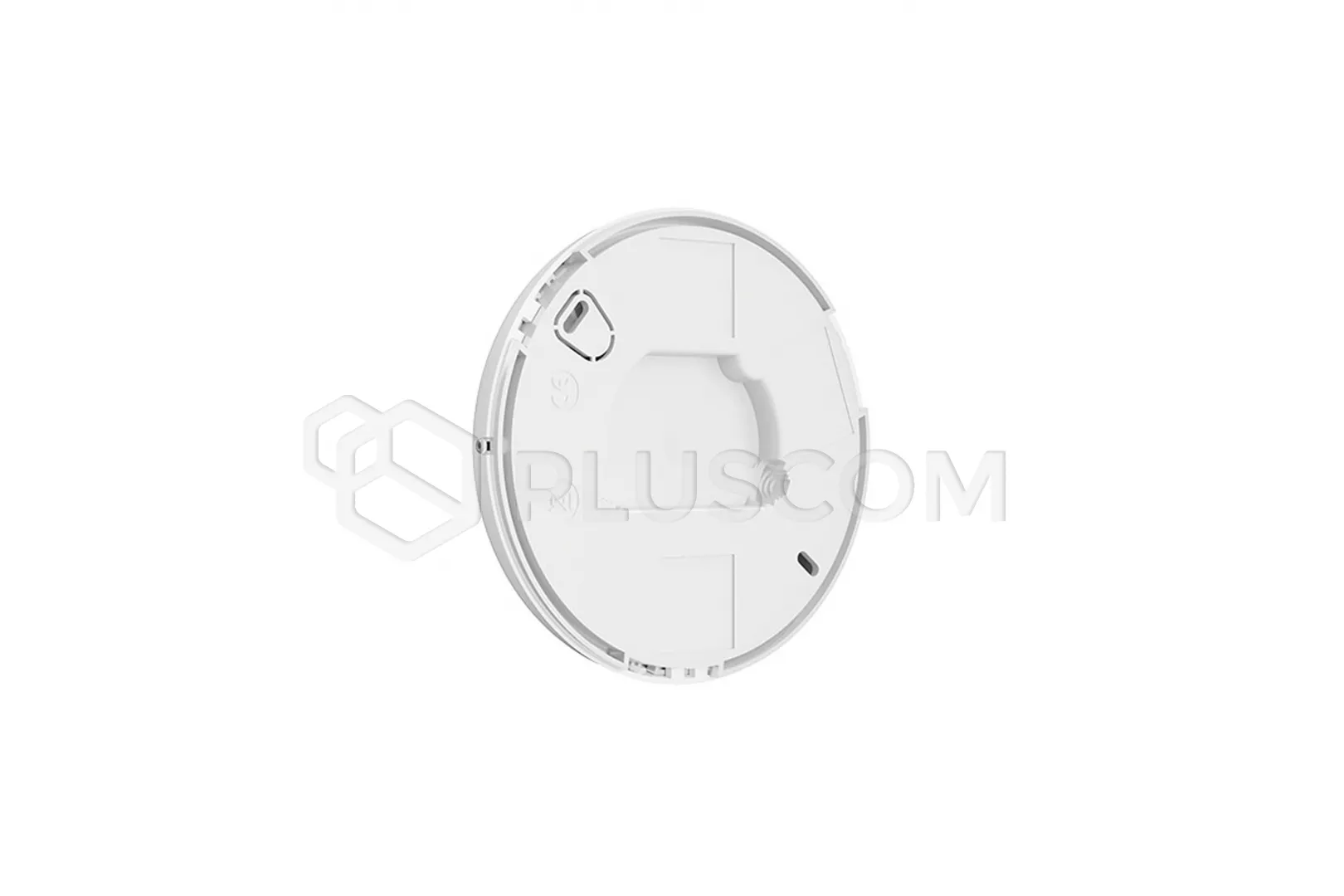

The APC-200 S is a wireless indoor motion detector designed for surface-mounted ceilings. It operates as part of the two-way ABAX 2 wireless system.

FEATURES:
  • Ceiling surface mounting
  • Detector supported by:
    • ACU-220/ACU-280 controllers
    • ARU-200 repeater
    • BE WAVE Hybrid alarm control panels
    • BE WAVE Smart HUB controllers
  • Radio communication range in open space: up to 1800 m
  • Motion detection using a passive infrared sensor (PIR)
  • Maximum detection area:
    • ø 6 m / 28 m2 – mounting height 2.4 m
    • ø 10 m / 79 m2 – mounting height 3.5 m
  • Digital algorithm Motion detection
  • Digital temperature compensation
  • Operates in the 868 MHz frequency band
  • AES-encrypted two-way radio communication
  • Transmission channel diversity – 4 channels enabling automatic selection of the one that allows for transmission without interference with other signals
  • Remote programming of settings
  • Remote software updates
  • Built-in temperature sensor (measuring range: -10°C...+55°C)
  • LED indicator
  • Motion detection system supervision
  • CR123A 3V battery powered
  • Battery status monitoring
  • ECO option for extended battery life
  • Sabotage protection against opening the housing, against tearing off the substrates
  • meets the requirements for EN 50131 Grade 2 protection.

TECHNICAL DATA:

  • Recommended mounting height: 2.4...3.5 m
  • Maximum detection area (mounted at a height of 3.5 m): ø 10 m [79 m²]
  • Maximum detection area (mounted at a height of 2.4 m): ø 6 m [28 m²]
  • Operating frequency band: 868.0 ÷ 868.6 MHz
  • Detectable movement speed: 0.3...3 m/s
  • Warm-up time: 35 s
  • Temperature measurement accuracy: ±1°C
  • Radio communication range (in open space): up to 1800 m
  • Standby current consumption: 82 µA
  • Battery: CR123A 3 V
  • Low battery voltage: 2.75 V
  • Expected battery life (in years): up to 2
  • Temperature measurement range -10°C...+55°C
  • Protection level according to EN50131-2-2: Grade 2
  • Standards complied with: EN50131-1, EN50130-4, EN50130-5
  • Environmental class according to EN50130-5: II
  • Operating temperature range: -10°C...+55°C
  • Maximum humidity: 93±3%
  • Weight: 123 g
