Satel ASW-220 Two-Channel 230 V AC Controller with Power Measurement

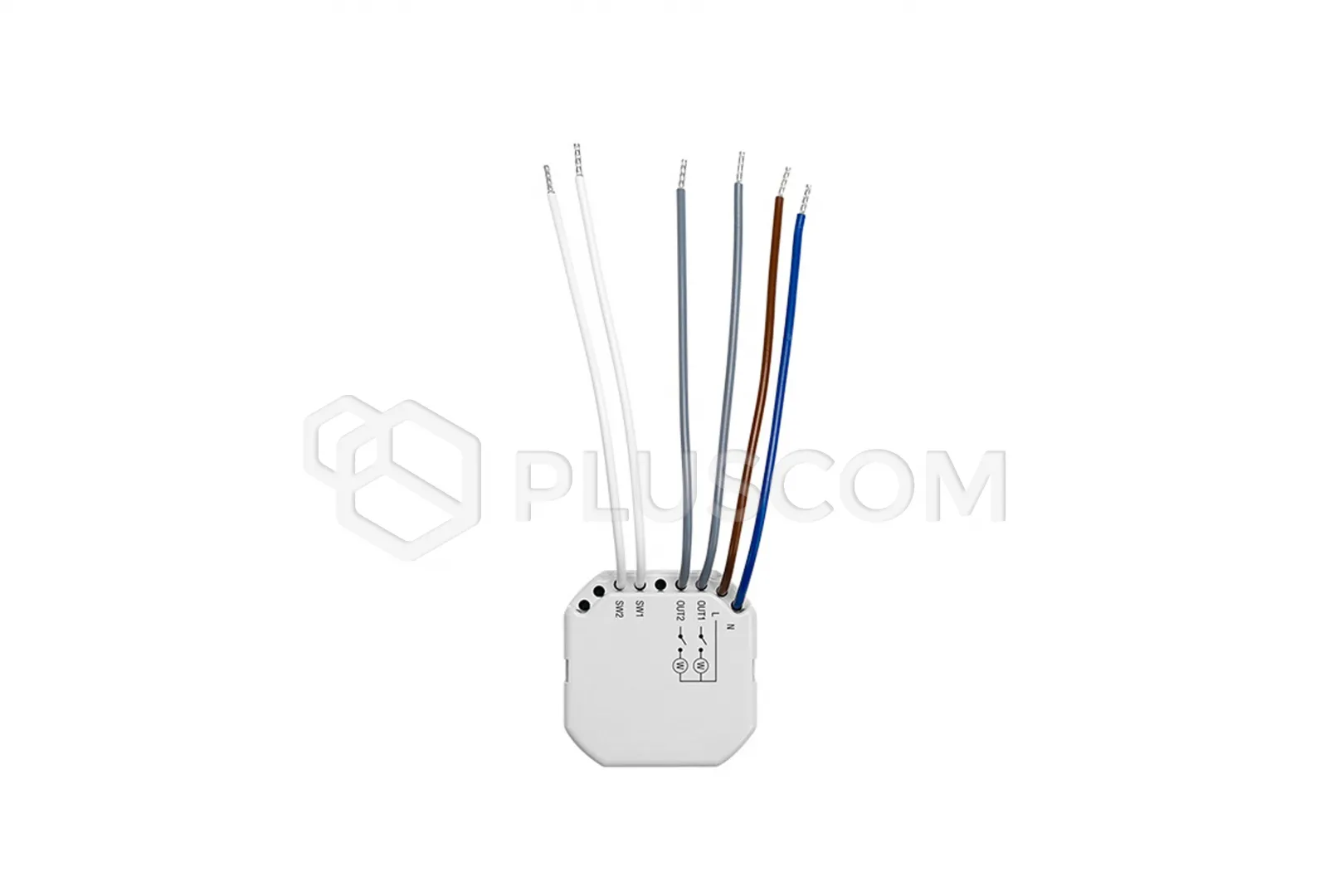

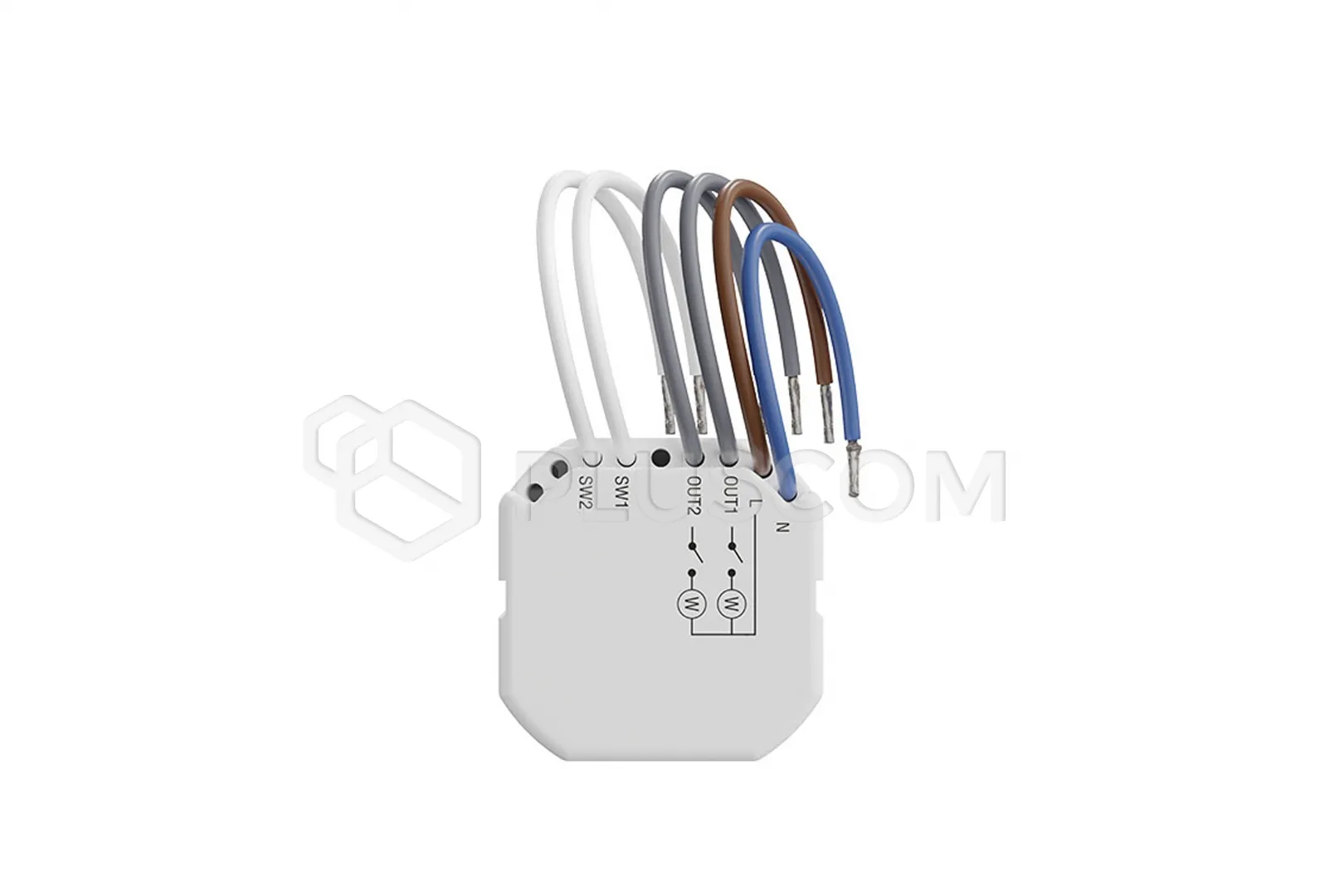

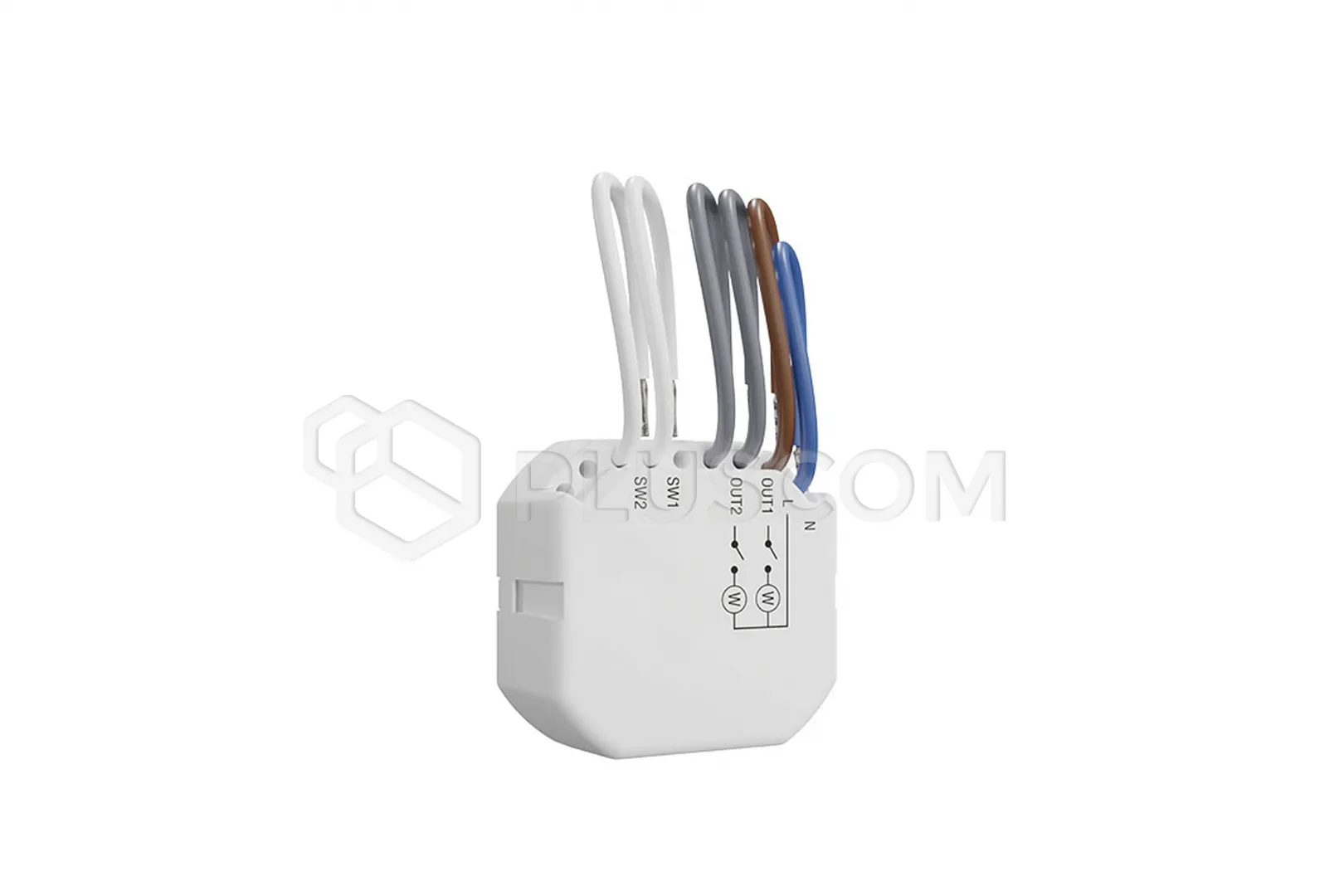

The ASW-220 controller is used to turn on and off up to two 230 V AC electrical devices. It features the function of measuring the power consumed independently by devices connected to both outputs. Operates as part of the two-way ABAX 2 wireless system.

FEATURES:

• Control of 230 V AC electrical devices
• 2 programmable relay outputs
• • Remote control
  • Local control using control inputs
  • Galvanic isolation of outputs
  • Maximum load 2 x 1250 VA
  • Current load 2 x 5 A
• 2 programmable wired inputs
• • Local control via relay output
  • Ability to connect a doorbell button or switch
  • Ability to control any device in the system
• Power consumption measurement function for devices connected to the controller outputs
• Compatibility with
• • ACU-220 and ACU-280 controllers
  • BE WAVE Hybrid control panels
  • BE WAVE Smart HUB controllers
  • ARU-200 repeater
• Operates in the 868 MHz frequency band
• AES-encrypted two-way radio communication
• Transmission channel diversity – 4 channels enable automatic selection of the one that allows for transmission without interference with other signals
• Remote controller software update
• Remote configuration
• 230 V AC power supply
• Installation in flush-mounted and surface-mounted junction boxes with a minimum diameter of 60 mm
