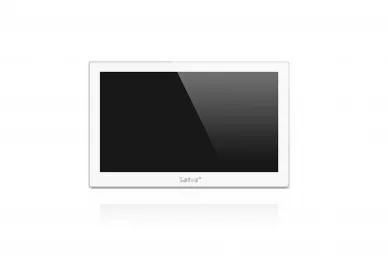

Satel INT-TSH210-W 10" touchscreen keypad

432,80 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #41003
Manufacturer: Satel
  • 10" touch screen
  • More than 20 ready-made graphic themes or your own composition
  • KNX system support
  • MAKRO features to facilitate home automation control
  • Built-in speaker
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel VERSA Plus LTE alarm control panel from 4 up to 30 zones

Satel INT-TSH210-W 10" Touchscreen Keypad, White


INT-TSH210-W is an advanced alarm system keypad equipped with a 10-inch high-resolution touchscreen. The INT-TSH210 display is made using TFT technology, which ensures high image quality, vivid colors and fast response time to touch.

INT-TSH210-W provides intuitive operation of systems based on control panels from the INTEGRA, INTEGRA Plus, VERSA series and the PERFECTA 64M control panel. INT-TSH210 enables users quick access to control security functions or building automation, including devices operating in the KNX standard (applies only to INTEGRA and INTEGRA Plus).

Thanks to the modern graphical interface, personalized screens and the ability to build your own menu, INT-TSH210 ensures ease of use and offers a wide range of device configuration options according to the needs of each system.

FEATURES:

:
  • supported by alarm control panels:
    • From the INTEGRA and INTEGERA Plus series (in software version 1.21 or newer)
    • From the VERSA series (in software version 1.06 or newer)
    • PERFECTA 64 M
  • touch screen:
    • diagonal: 10”
    • TFT display
    • resolution: 1024 x 600
    • color depth: 16.7 million
    • gesture support
  • slim housing with a depth of 18 mm
  • configurable user screens (max. 24 screens)
  • over 20 ready-made graphic themes with the possibility of creating your own composition
  • alarm system and automation support using widgets
  • system control using macro commands that simplify the activation of alarm functions and building automation
  • possibility of quick activation of PANIC, FIRE, HELP alarms
  • current system status indicators placed on the status bar
  • possibility of displaying visualization of the protected object
  • intuitive user menu with icons
  • configurable screen saver
  • possibility of displaying a slide show (photo frame function)
  • possibility of adjusting the screen backlight divided into day and night modes
  • built-in microSD memory card reader (storing photos for photo frame, background additional screens)
  • built-in loudspeaker for sound signaling with volume control
  • can be mounted to the wall using a bracket (included) or to an electrical installation box
  • 2 programmable wired inputs (supported only by INTEGRA series control panels):
    • support for NO and NC type detectors and roller shutter and shock detectors
    • support for EOL, 2EOL and 3EOL configurations (3EOL only by INTEGRA Plus series control panels)
    • programmable value of parametric resistors
  • sabotage protection against removal from the bracket and tearing off from the surface

TECHNICAL DATA:

  • Power supply voltage: 12 V DC
  • Standby current consumption: 300 mA
  • Minimum current consumption: 415 mA
  • Supported memory cards: microSD, micro SDHC
  • Environmental class according to EN50130-5: II
  • Maximum humidity: 93±3%
  • Operating temperature range: -10°C…+55°C
  • Dimensions: 251 x 157 x 18 mm
  • Weight: 604 g
