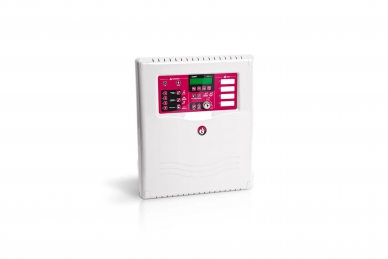

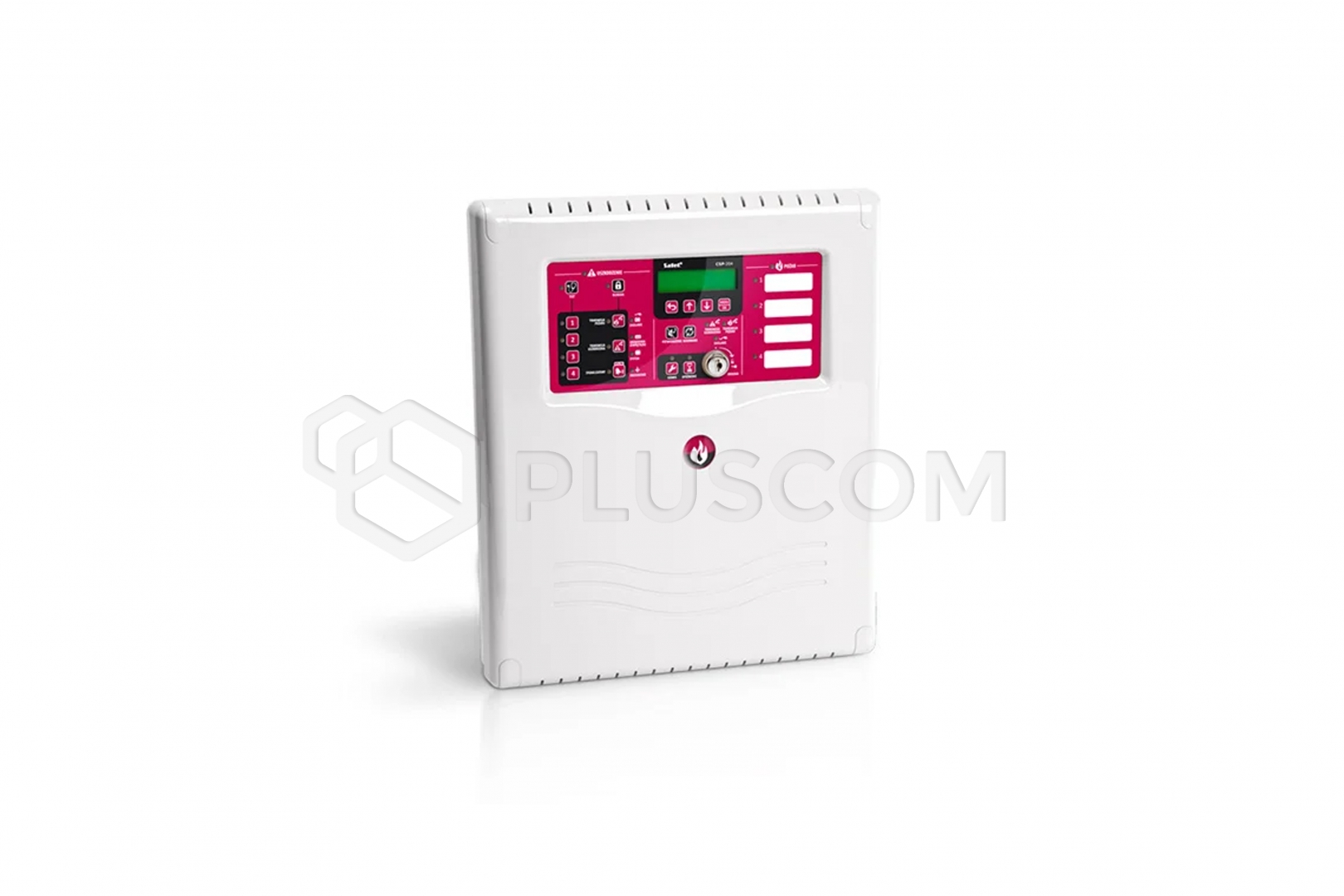

Satel CSP-204 Conventional Fire Alarm Control Panel

Satel CSP-204 Conventional Fire Alarm Control Panel

The CSP-204 are advanced, conventional fire alarm control panels fully compliant with EN54 requirements. They are designed for implementing simple systems in small and medium-sized facilities. The built-in LCD display facilitates daily system operation, installation, and periodic maintenance. A major advantage of SATEL's control panels is their simple installation, aesthetic appearance, and the use of a single, standard 12 V battery as an auxiliary power source.

FEATURES:

• 4 detection zones
• Built-in LCD display for easy system operation and programming
• Remote panel and virtual panel support (via the CSP-ETH interface)
• 4 control inputs with installer-programmable functionality
• 4 installer-programmable outputs enabling interaction with other systems
• Fire and fault transmission devices support
• Built-in buffer power supply compatible with a single 12 V battery and 24 V and 18 V AUX power outputs

TECHNICAL DATA:

• End-of-line resistor in the alarm line: 10 kΩ +/- 5%
• Number of detection lines: 4
• Max. detection line resistance: 100 Ω (2 x 50 Ω)
• Max. number of detectors in the detection line: 32
• Max. number of manual call points (MCPs) in the line: 10
• End-of-line resistor in the detection line: 5.6 kΩ +/- 5%
• Permissible detection current in the detection line: 10 mA
• Maximum line current during an alarm: 40 mA
• Detector line current limit: 54 mA
• Maximum permissible resistance of the signaling, alarm, and fault lines: 75 Ω (2 x 37.5 Ω)
• Number of external signaling lines: 2
• Operating voltage of the signaling lines: 24 V DC +/- 15%
• Permissible current of the signaling lines: 180 mA
• Electrical parameters of the relay outputs: 1A / 30 V DC (NO or NC)
• Number of alarm transmission lines: 1
• Operating voltage of the alarm transmission line: 24 V DC +/- 15%
• Permissible current of the alarm transmission line: 180 mA
• Terminal resistor in the alarm transmission line: 10 kΩ +/-5%
• Number of fault transmission lines: 1
• Operating voltage of the fault transmission line: 24 V DC +/-15%
• Permissible current of the fault transmission line: 180 mA
• Terminal resistor in the fault transmission line: 10 kΩ +/-5%
• Number of programmable relay outputs: 4
• Backup power supply: internal lead-acid battery: 12 V / 17 Ah
• Backup power supply: external lead-acid battery: 12 V / ≤24 Ah
• AUX power output (only for connecting the CSP-ETH module): in the event of an AC power failure, 12 V DC +15%, -20%
• Housing tightness: IP30
• Maximum humidity: 93±3%
• Dimensions: 324 x 382 x 108 mm
• Transport temperature range: -25….+55 °C
• Primary power supply from mains voltage: 230 V AC +10%, -15% 50 Hz
• Maximum current consumption from mains: 500 mA
• Backup power supply operating time: 72 h
• Maximum battery charging current: 1.4 A
• Maximum Battery internal resistance (with wires and terminals in the circuit): 1 Ω
• Battery current consumption in quiescent mode: 100 mA
• Battery current consumption in alarm mode: 170 mA
• Integrated AC power supply current consumption in quiescent mode: 80 mA
• Integrated AC power supply current consumption in alarm mode: 140 mA
• Operating temperature range: -5…+40 °C
• Weight without battery: < 3 kg
• Event memory capacity: 8999
• Alarm counter capacity: 9999
• Clock battery: 3 V (CR2032)
• PC communication output (service)
• Termination resistor on the communication terminals with the remote panel: 100 Ω
• Communication output with the remote panel and CSP-ETH module
• +24V power output: 24 V DC +/-15% / 200 mA max.
• AUX power output (only for connecting the CSP-ETH module) in normal state: 18 V DC +5%, -15%
• Alarm resistor in the control input line: 1 kΩ +/- 5%
• Termination resistor in the control input line: 10 kΩ +/- 5%
• Number of programmable control inputs: 4
