ARU-200 radio signal retransmitter

152,57 EUR including 23.00% VAT
Product code: #25360
Manufacturer: Satel
  • Signal retransmission of 46 wireless devices
  • Frequencies: 868 MHz
  • Power supply with 230 V AC
  • Built-in switching power supply
  • Remote software upgrade
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACU-220 ABAX 2 Wireless system controller Satel ACU-280 ABAX 2 Wireless system controller Satel ARF-200 Radio signal strength tester

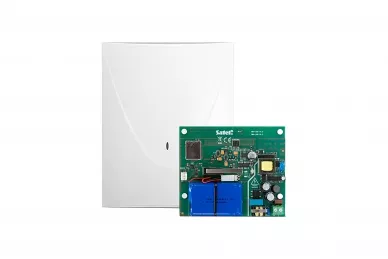

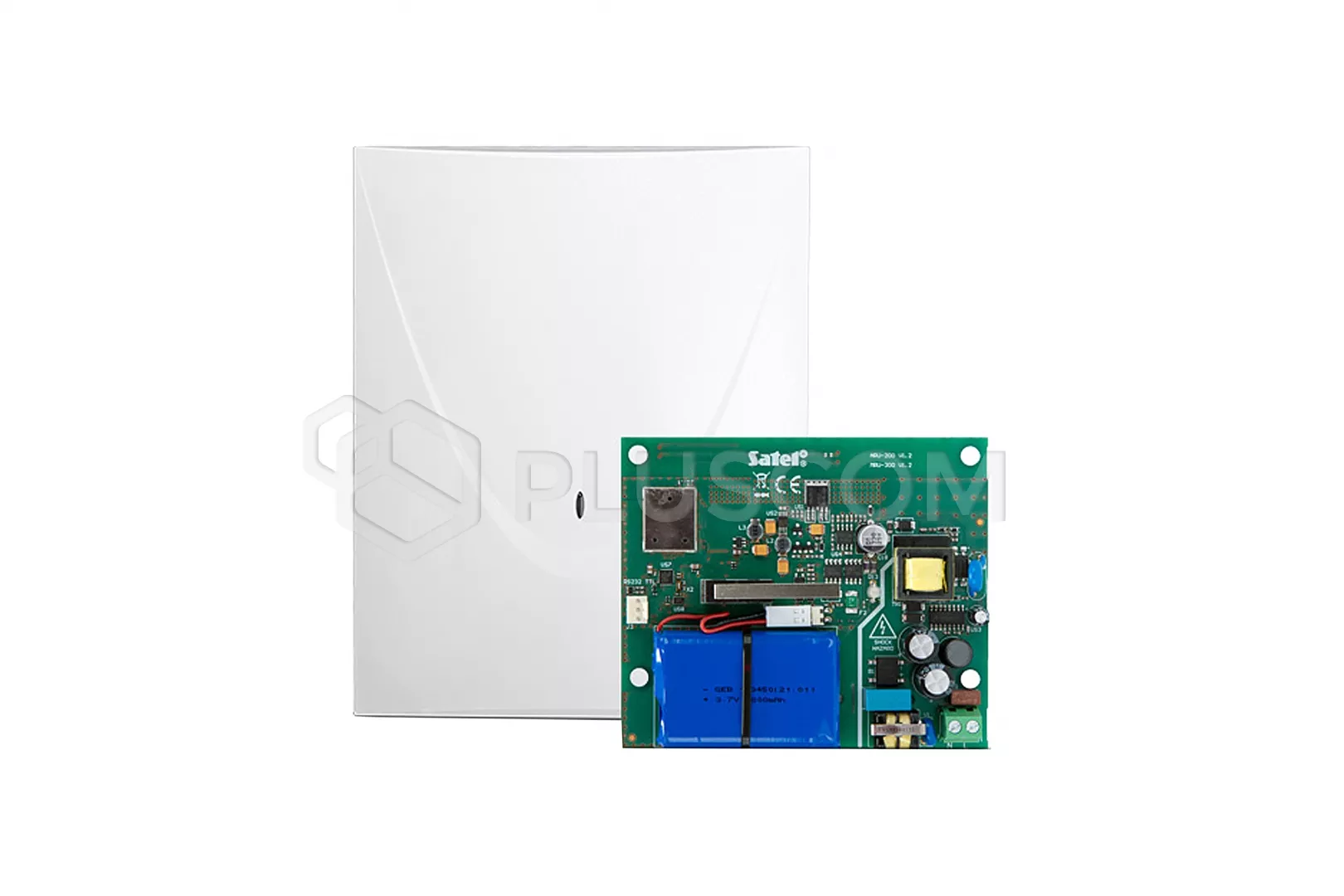

Satel ARU-200 radio signal retransmitter


ARU-200 radio signal retransmitter receives transmissions from ABAX 2 wireless devices and retransmits them. ARU-200 can extend the range of the ABAX 2 system wireless communication.

Features:
  • Retransmission of signals from 46 wireless devices
  • Encrypted two-way radio communication in the 868 MHz / 915 MHz frequency band (AES standard)
  • Transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals in the 868 MHz / 915 MHz frequency band
  • Remote update of repeater firmware
  • LED indicator of the repeater status
    • normal operation – ON in green
    • communication with the controller – flash in red
    • 230 VAC power trouble – flashing in green
  • Tamper protection against cover remova
  • Powered with 230 VAC
  • Built-in switching power supply
  • Short-circuit protection of the power input
  • Backup battery
  • Battery charging circuit
  • Battery status supervision and low battery disconnect system
In the INTEGRA / VERSA alarm system, the repeater is identified as ARU-100.

Specifications:
  • Operating frequency band: 868,0 MHz ÷ 868,6 MHz
  • Radio communication range (in open area):
    • ACU-220: up to 2000m
    • ACU-280: dup to 1600m
  • Supply voltage : 230 V AC, 50-60 Hz
  • Standby current consumption: 8 mA
  • Maximum current consumption: 15 mA
  • Battery (lithium-ion).: 3.7 V / 1800 mAh
  • Environmental class according to EN 50130-5: II
  • Operating temperature range: -10°C...+55°C
  • Electronics board dimensions: 87 x 104mm
  • Enclosure dimensions: 126 x 158 x 32mm
  • weight: 265 g
Download
Datasheet 0.11 MB
Manual 0.47 MB
