Roger Technology SET BR21/362/L Set

3316,09 EUR including 23.00% VAT
Product code: #33366
Manufacturer: Roger Technology
  • Leaf length: max 5m
  • Leaf weight: max 1000kg
  • Engine power supply 36V
  • For intensive work
  • 2 x SYNUS/2 remote control, R90/F4ES photocells, EDGE1/BOX control panel
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology LT300 Gate opening lever kit Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology RL651 Key Unlock Roger Technology LT301 Chain Gear Kit

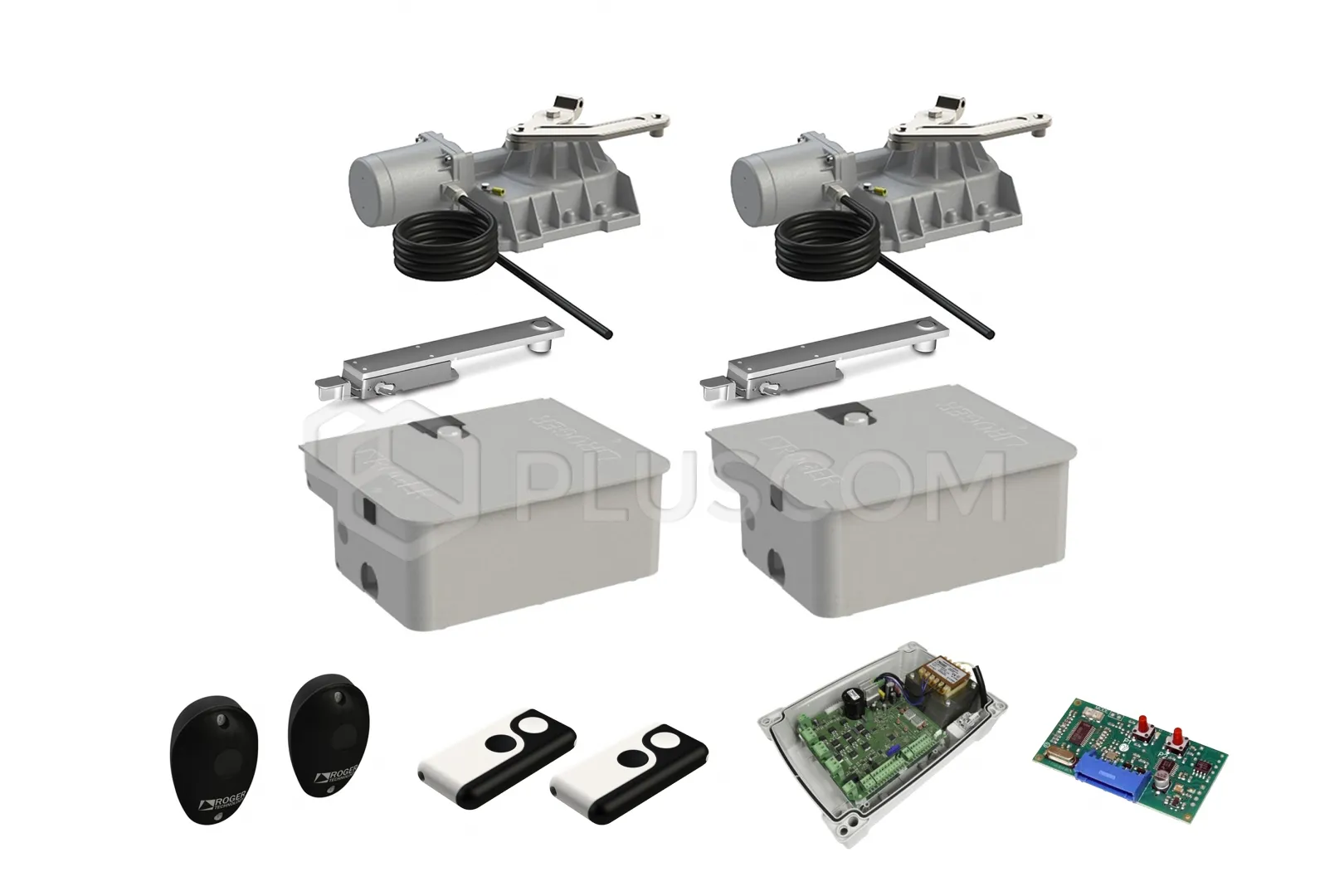

Roger Technology SET BR21/362/L for double-leaf gates up to 5m long and weighing up to 1000kg


The set consists of:
Roger Technology SET BR21/362/L Set

Roger Technology SET BR21/362/L Set
The biggest advantage of underground actuators is the aesthetics and discretion of the drive which is invisible and does not spoil the image of the gate.
The second significant strength of underground drives is the possibility of installation in a place where due to:
  • narrow entrance
  • very narrow posts where dimension A is less than 100mm
  • there is no space for installing screw drives or with a folding arm
BR21/362 is an underground actuator that allows for the implementation of a stylish and discreet automation installation for gates with a leaf length of up to 5m and a weight of 1000kg.
>The drive is with a 36 V brushless motor, for very intensive work - 1300 cycles per day.
It has a built-in digital encoder and mechanical limiters for opening and closing. Gears made of metal alloys, without plastic, without Teflon, without nylon. The advanced technology used allows full control over the operation of the device and the movement of the gate wings.
The actuator is characterized by quiet operation, low energy consumption and a solution that does not interfere with the appearance of the gate.

FEATURES:

  • Electronic force regulation
  • Adjustable opening/closing speed
  • Soft start and slowdown
  • Obstacle detection function
  • Double bearing of the output shaft
  • Intensive use - 1300 cycles
  • Digital encoder management
  • Mechanical limit switch on opening and closing
  • Metal alloy gear
  • For gates with wide posts
  • Full control of the leaf movement
  • To be completed with housing and release with lever or key

TECHNICAL DATA:

  • Mains power supply: 230V AC - 50Hz
  • Motor power supply: 36V
  • Rated power: 200W
  • Use frequency: Intensively used
  • Motor torque: 50 - 300 N m
  • Operating temperature: -20+55°C
  • Protection class: IP67
  • Gear motor typology: irreversible
  • Speed: 1.2 Rpm
  • Opening time: 19-29 s
  • Switches: Mechanical limiters
  • Recommended digital controllers: 230V: EDGE1/BOX - 115V: EDGE1/BOX/115
  • Encoder: Built-in digital SENSORLESS, 48 pulses per revolution
  • Maximum aperture: 105° (optional 125° - 360°)
  • Number of cycles per day (opening/closing - 24h non-stop): 1300
  • Dimensions: 345 x 224 x 144mm
  • Weight: 14.9kg
