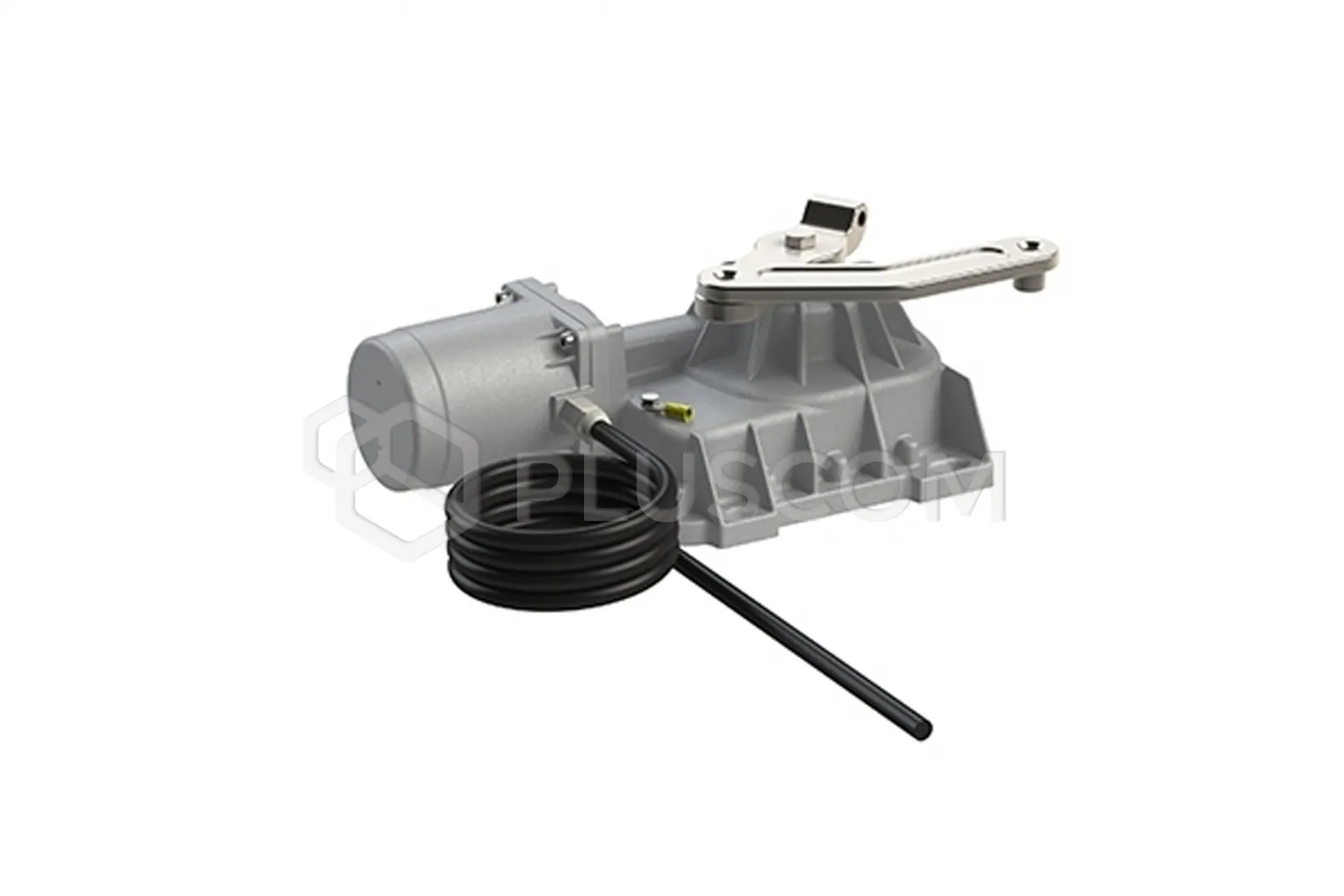

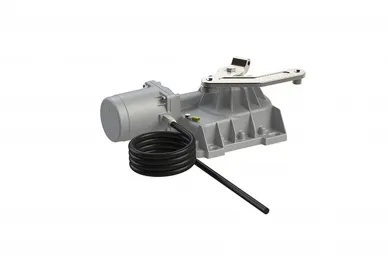

Roger Technology BR21/362 36V Brushless Motor Drive

963,98 EUR including 19.00% VAT
Product code: #40588
Manufacturer: Roger Technology
  • up to 5m wing length
  • up to 1000kg wing weight
  • 36V engine power supply
  • with digital encoder and mechanical limiters
  • for intensive work
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology RL650 Lever release Roger Technology LT301 Chain Gear Kit Roger Technology LT300 Gate opening lever kit Roger Technology FU103 Housing and cover made of stainless steel INOX 304 Roger Technology FU102 Galvanized housing and stainless steel cover INOX 304 Roger Technology FU101 Galvanized steel housing and cover Roger Technology FU100 Galvanized steel housing and cover Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology RL651 Key Unlock

Roger Technology BR21/362 Brushless 36 V Motor Drive for Gates with a Wing Length of 5m


GATE PARAMETERS:
  • Gate weight up to 1000kg
  • Wing length: up to 5m
BR21/362 is an underground actuator that allows for a stylish and discreet automation installation for gates with a wing length of up to 5m and a weight of 1000kg.

The greatest advantage of underground actuators is the aesthetics and discretion of the drive, which is invisible and does not spoil the image of the gate.
The second significant advantage of underground drives is the possibility of installation in a place where, due to:
  • narrow entrance
  • very narrow posts where dimension A is less than 100mm
  • there is no space for the installation of screw drives or drives with a folding arm
The drive is with a 36 V brushless motor, for very intensive work - 1300 cycles per day.
It has a built-in digital encoder and mechanical limiters for opening and closing. Gears made of metal alloys, without plastic, without Teflon, without nylon. The advanced technology used allows full control over the operation of the device and the movement of the gate wings.
The actuator is characterized by quiet operation, low energy consumption and a solution that does not interfere with the appearance of the gate.

FEATURES:

  • Electronic force regulation
  • Adjustable opening/closing speed
  • Soft start and slowdown
  • Obstacle detection function
  • Double bearing of the output shaft
  • Intensive use - 1300 cycles
  • Digital encoder management
  • Mechanical limit switch on opening and closing
  • Metal alloy gear
  • For gates with wide posts
  • Full control of the leaf movement
  • To be completed with housing and release with lever or key

TECHNICAL DATA:

  • Mains power supply: 230V AC - 50Hz
  • Motor power supply: 36V
  • Rated power: 200W
  • Use frequency: Intensively used
  • Motor torque: 50 - 300 N m
  • Operating temperature: -20+55°C
  • Protection class: IP67
  • Gear motor typology: irreversible
  • Speed: 1.2 Rpm
  • Opening time: 19-29 s
  • Switches: Mechanical limiters
  • Recommended digital controllers: 230V: EDGE1/BOX - 115V: EDGE1/BOX/115
  • Encoder: Built-in digital SENSORLESS, 48 pulses per revolution
  • Maximum aperture: 105° (optional 125° - 360°)
  • Number of cycles per day (opening/closing - 24h non-stop): 1300
  • Dimensions: 345 x 224 x 144mm
  • Weight: 14.9kg
