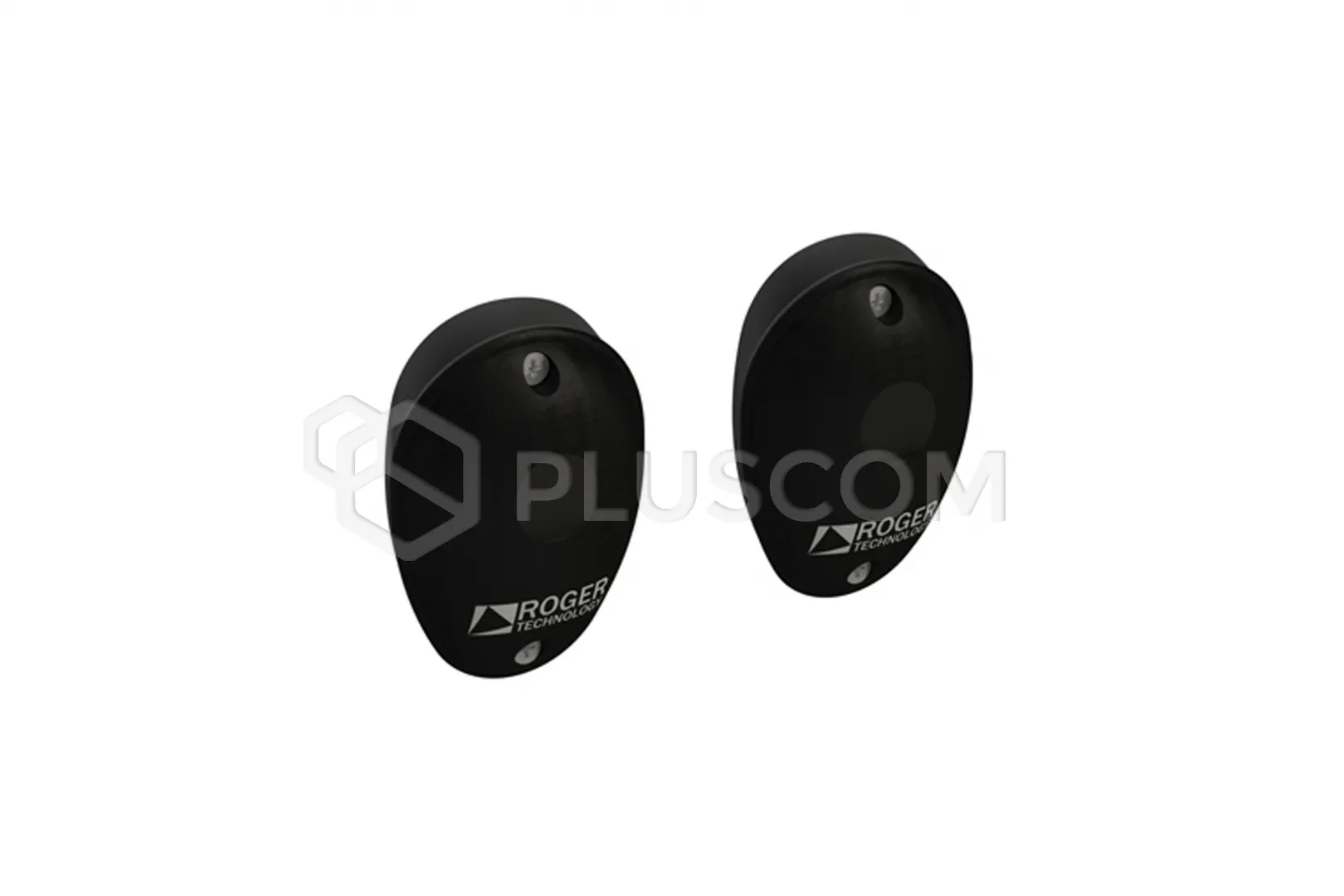

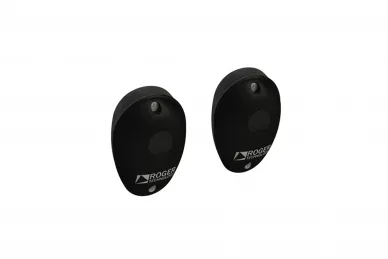

Roger Technology R90/F4ES Complete set of photocells with synchronization

77,85 EUR including 23.00% VAT
Product code: #33307
Manufacturer: Roger Technology
  • Power: 24V AC 50Hz - 24V DC
  • Range: max. 15m
  • Relay version
  • For devices with classic PHOTO/STOP input
  • Max. 4 pairs of photocells in one system
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology R90 HOLDER R90 photocell holder Roger Technology CFT501 Set of columns for R90 photocells Roger Technology CFT500 Set of columns for R90 photocells

Roger Technology R90/F4ES Complete set of photocells with synchronization


Synchronized photocells for swing gates controlled by 2 BRUSHLESS motors, based on infrared technology, which enable the detection of obstacles on the optical axis between the photocells of the transmitter and receiver.
Classic relay version used for devices with a classic input PHOTO/STOP.
Possibility to install up to 2 pairs of photocells in one system.

They are designed for mounting on flat and parallel mounting surfaces, which allows for proper centring between the TX and RX photocells.
Aluminum columns with a height of 50 or 100 cm can be used for mounting.

TECHNICAL DATA:

  • Power supply: 12/24V AC/DC 50 Hz
  • Range: 10-15 m
  • Max. relay contact voltage: 30V
  • Protection class: IP 55
  • Operating temperature: -20°C to +55°C
  • Dimensions: 88 x 62 x 27 mm
  • Weight: 0.1 kg
Download
User manual 2.1 MB
