Roger Technology SET BH23/282/F SET FULL

1606,68 EUR including 23.00% VAT
Product code: #40571
Manufacturer: Roger Technology
  • Leaf length up to 2.8m
  • Leaf weight up to 300kg
  • Engine power supply 24V
  • Optical encoder
  • 2 x 2-channel SYNUS/2 remote controls, R90/F4ES photocells, FIFTHY/24 lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology LT302 Short arm, articulated Roger Technology LT338 Sliding Arm

Roger Technology SET BH23/282/F SET FULL with 24V brushless motor drive for swing gates up to 2.8m

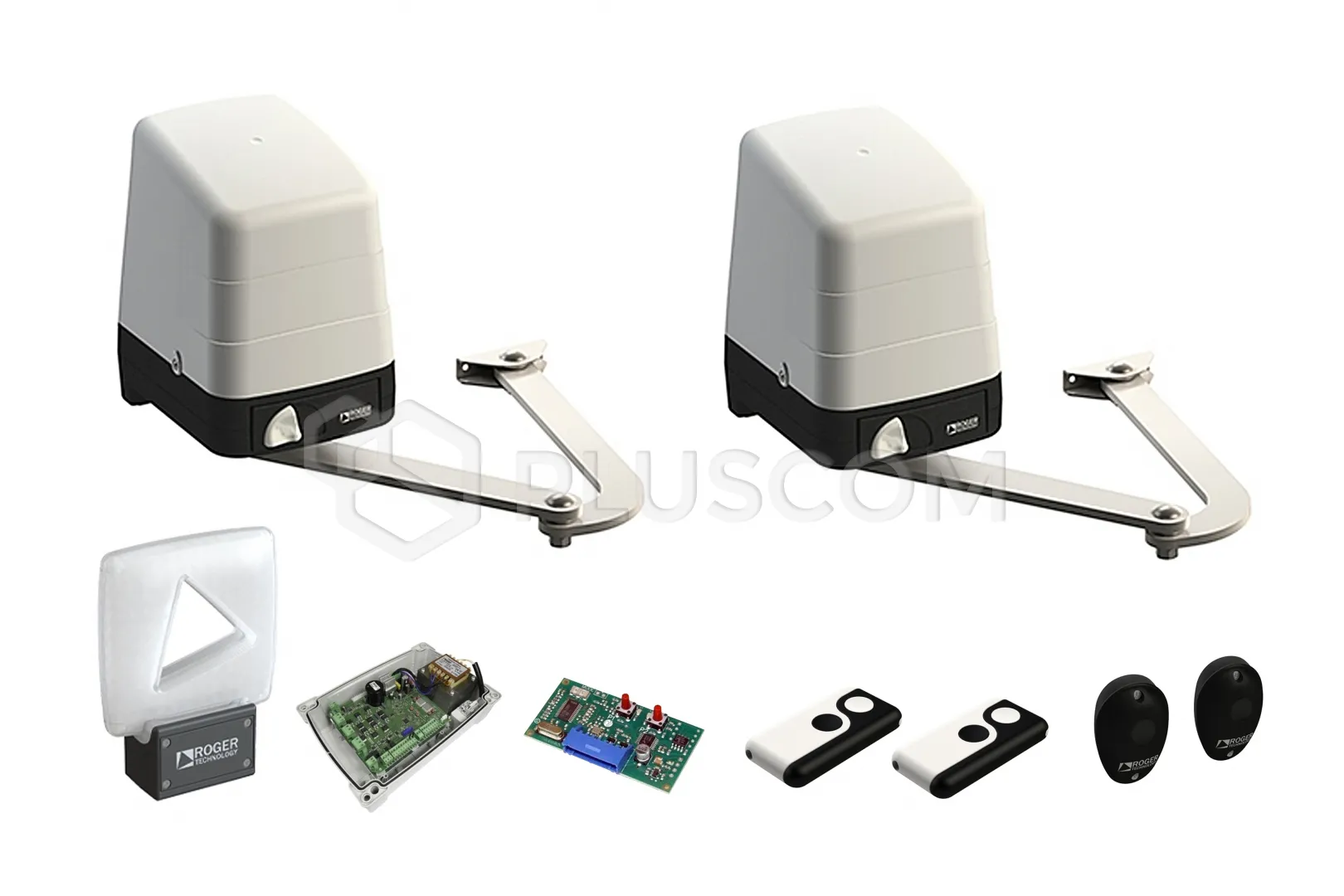

The set consists of:
Roger Technology SET BH23/282/F SET FULL

Roger Technology SET BH23/282/F SET FULL
Drive with a 24 V brushless motor, with a folding arm, for wide posts for swing gates with a maximum leaf length of 2.8 m. It is designed for very intensive work - 1900 cycles per day. Opening time to 90° is 12-20 s.
The actuator has a built-in digital encoder and mechanical limiters for opening and closing. Gears made of metal alloys, without plastic, without Teflon, without nylon. Digital electronics without relays.

The advanced technology used allows full control over the operation of the device and the movement of the gate wings.

The actuator set is enriched with two 2-channel SYNUS/2 copying remote controls with fixed code/rolling code operating at 433.92MHz and a set of R90/F4ES photocells, based on infrared technology.

TECHNICAL DATA:

  • Mains power supply: 230V AC - 50Hz
  • Motor power supply: 24V
  • Nominal power: 160W
  • Use frequency: Intensively used
  • Motor torque: 50 - 280 N m
  • Operating temperature: -20 +55° C
  • Protection class: IP43
  • Gear motor typology: Irreversible
  • Speed: 1 - 1.9 Rpm
  • Opening time: 12-20 s
  • Switches: Mechanical stops when opening and closing
  • Number of cycles per day (opening/closing - 24h non-stop): 1900
  • Dimensions: 230 x 190 x 284mm
  • Weight: 13
