Roger Technology BH23/282 24V Brushless Motor Drive

607,18 EUR including 23.00% VAT
Product code: #33134
Manufacturer: Roger Technology
  • Leaf length up to 2.8m
  • Leaf weight up to 300kg
  • Engine power supply 24V
  • For very intensive work
  • For wide posts
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology B70/EDGE1 Control unit for 2 brushless motors 24V Roger Technology LT338 Sliding Arm Roger Technology LT302 Short arm, articulated Roger Technology B71/BC/INT Battery Pack

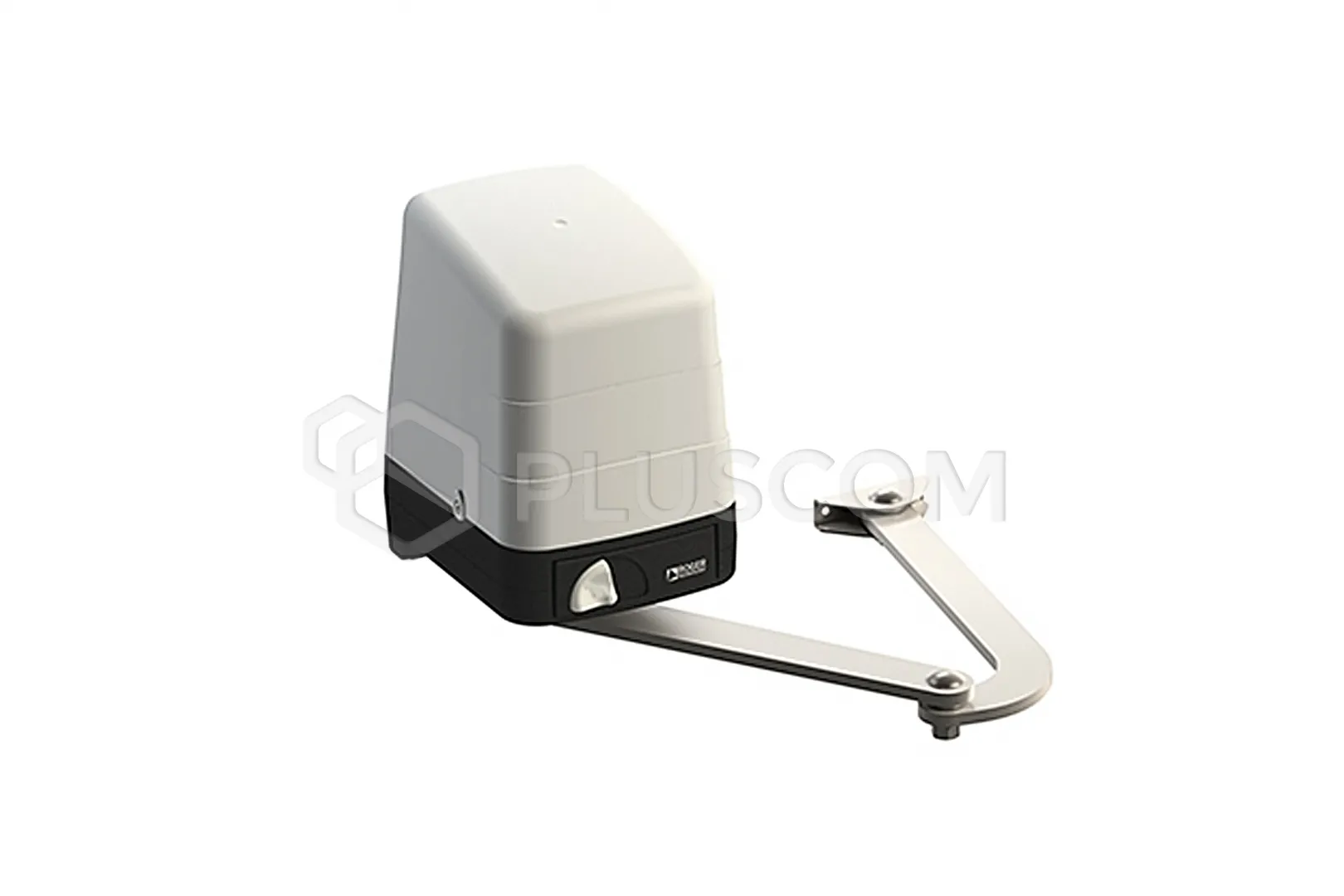

Roger Technology BH23/282 Brushless motor drive 24V


Brushless motor drive 24 V, with a folding arm, for wide posts for swing gates with a maximum leaf length of 2.8 m. It is designed for very intensive work - 1900 cycles per day. Opening time to 90° is 12-20 s.
The actuator has a built-in digital encoder and mechanical limiters for opening and closing. Gears made of metal alloys, without plastic, without Teflon, without nylon. Digital electronics without relays.

The advanced technology used allows full control over the operation of the device and the movement of the gate wings.

FEATURES:

  • Super intensive use - 1900 cycles per day
  • Opening time up to 900 12 - 20 s
  • For wide posts
  • Mechanical limiter for opening and closing
  • Low energy consumption
  • Very quiet operation
  • Full control of the leaf movement

TECHNICAL DATA:

  • Mains power supply: 230V AC - 50Hz
  • Motor power supply: 24V
  • Rated power: 160W
  • Frequency of use: Intensively used
  • Motor torque: 50 - 280 N m
  • Operating temperature: -20 +55° C
  • Protection class: IP43
  • Gear motor typology: Irreversible
  • Speed: 1 - 1.9 Rpm
  • Opening time: 12-20 s
  • Switches: Mechanical limiters when opening and closing
  • Number of cycles per day (opening / closing - 24h non-stop): 1900
  • Dimensions: 230 x 190 x 284mm
  • Weight: 13
