Roger Technology KIT H30/650/F KIT FULL

744,17 EUR including 23.00% VAT
Product code: #33242
Manufacturer: Roger Technology
  • gate weight: up to 600kg
  • 230V engine
  • built-in control unit H70/104/AC
  • speed: 10m/min

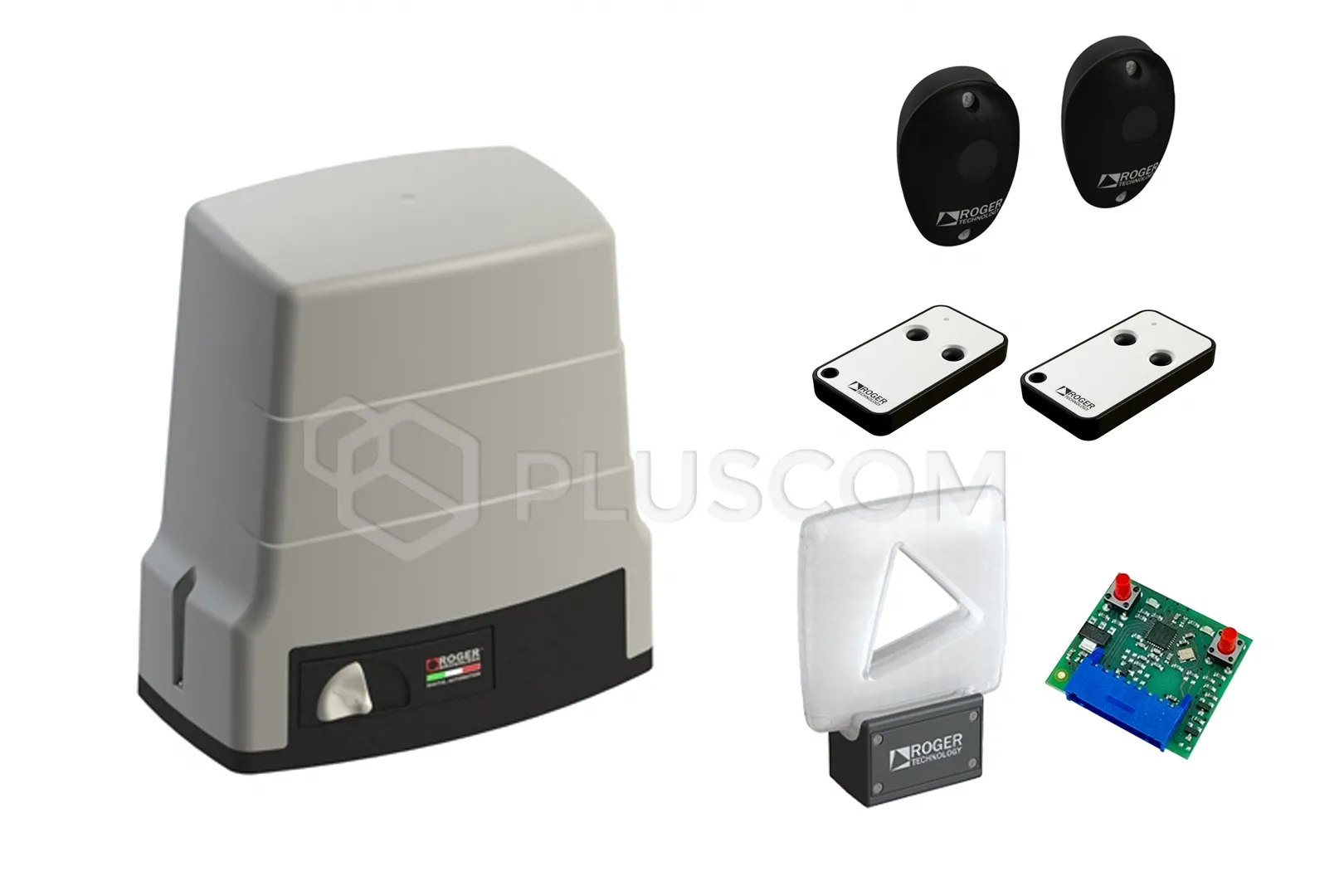

  • 2 x 2-channel remote controls E80/TX52R/2, R90/F2ES photocells, FIFTHY/230 lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30 Roger Technology POST BASE Adjustable base for H30 drives Roger Technology H70/104AC Control unit for 1 230 V AC motor Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology CROSSF10 Metal toothed rack, galvanized 1m

Roger Technology KIT H30/650/F Set with drive with 230 V motor for sliding gates up to 800 kg


The set consists of:
Roger Technology KIT H30/650/F KIT FULL

Roger Technology KIT H30/650/F KIT FULL
Drive with 230 V motor, for sliding gates with a maximum weight of 600 kg, with optical encoder, built-in H70/104/AC control unit and magnetic switches, as well as a base and screws for mounting.

FEATURES:

  • Gate weight max 600 kg
  • Metal alloy gear without plastic, without Teflon, without nylon
  • Magnetic switches
  • Drive unlocking secured with a personalized key
  • Control unit with LED display
  • Optical encoder management
  • Soft start and slowdown
The actuator set is enriched with two 2-channel E80/TX52R/2 remote controls with a copy function, operating at a frequency of 433.92MHz, a set of R90/F2ES photocells, based on infrared technology and a LED signal lamp FIFTHY/230 230V with built-in 433.92MHz antenna increasing the range of remote controls.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 230V AC 50Hz
  • Nominal power: 240 W
  • Force: 300 N
  • Speed: 10 m/min (0.16 m/s)
  • Motor thermal protection: 150°C
  • Gear motor type: irreversible
  • Encoder: optical
  • Capacitor: 12.5 µF
  • External gear: Z15/mod. 4
  • Max. gate weight: 600 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 315 x 329 x 165.8 mm
  • Weight: 11.6 kg
