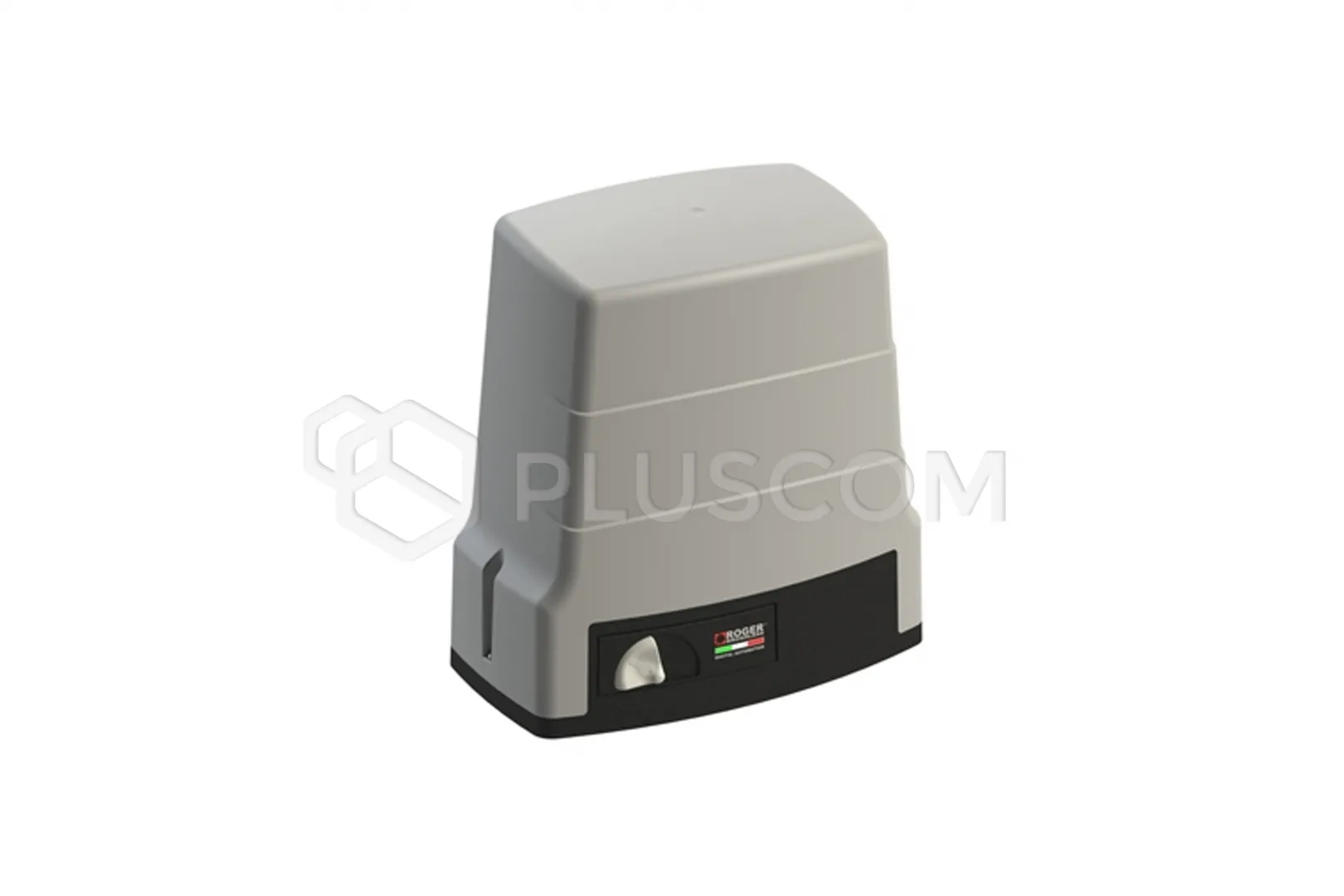

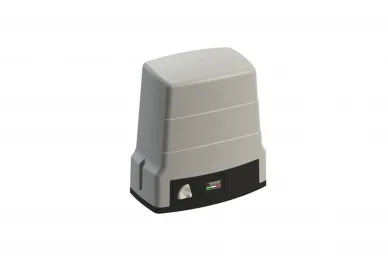

Roger Technology H30/644 Drive with 230 V motor

572,37 EUR including 19.00% VAT
Product code: #33194
Manufacturer: Roger Technology
  • gate weight: up to 600kg
  • 230V engine
  • built-in control unit H70/104/AC
  • speed: 10m/min
  • magnetic switches
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology POST BASE Adjustable base for H30 drives Roger Technology H70/104AC Control unit for 1 230 V AC motor Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30

Roger Technology H30/644 Drive with 230 V motor for sliding gates up to 600 kg

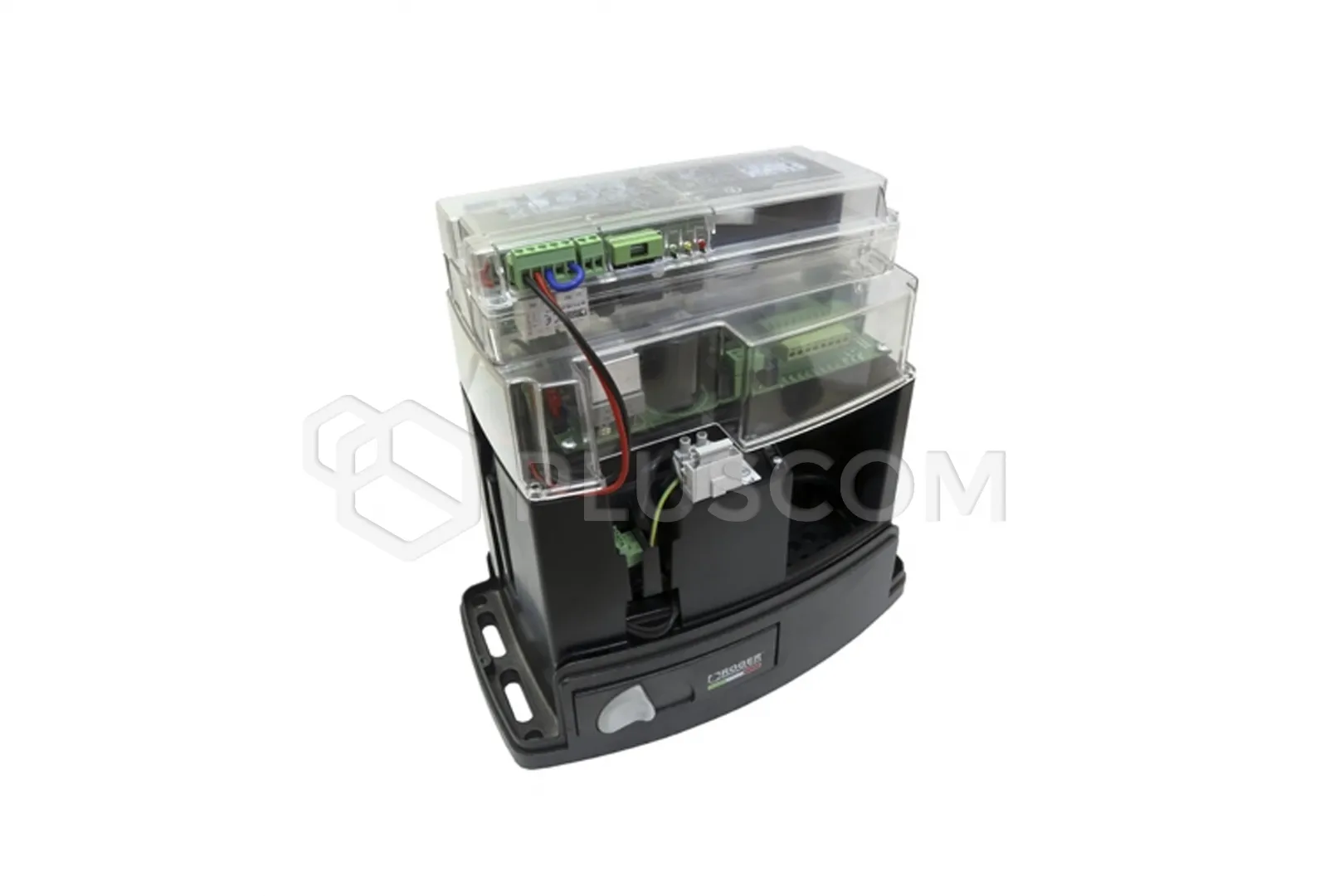

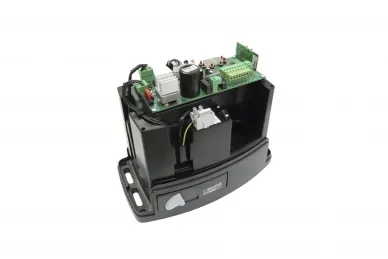

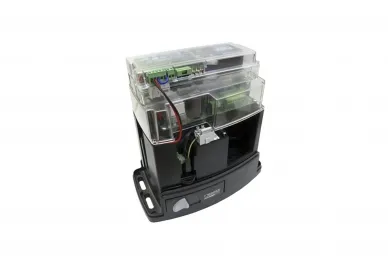

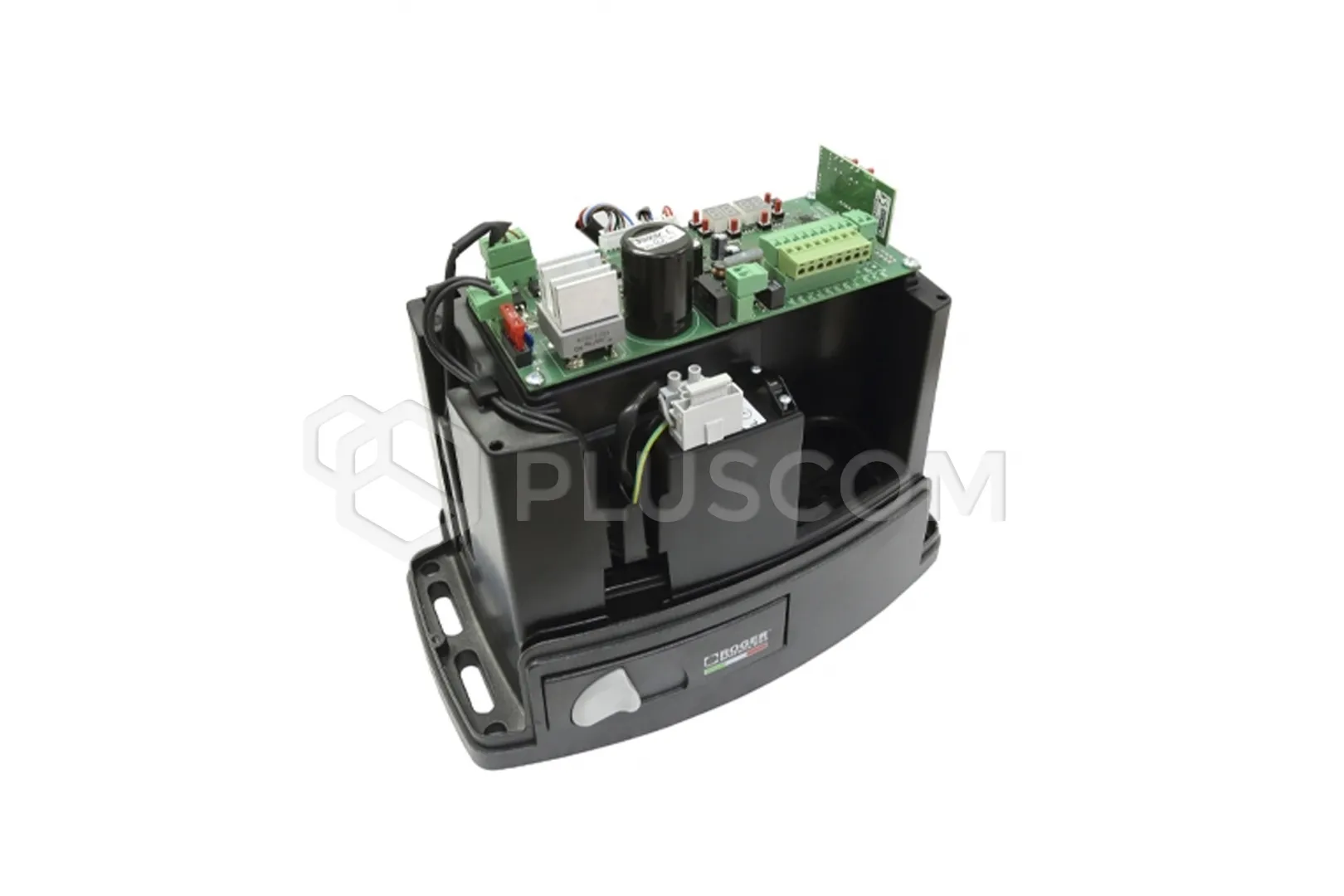

Drive with 230 V motor, for sliding gates with a maximum weight of 600 kg, with optical encoder, built-in control unit H70/104/AC and magnetic switches as well as base and screws for mounting.

FEATURES:

  • Gate weight max 600 kg
  • Metal alloy gear without plastic, without Teflon, without nylon
  • Magnetic switches
  • Drive unlocking secured with a personalized key
  • Control unit with LED display
  • Optical encoder management
  • Soft start and slowdown

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 230V AC 50Hz
  • Rated power: 240 W
  • Force: 300 N
  • Speed: 10 m/min (0.16 m/s)
  • Motor thermal protection: 150°C
  • Gear motor type: irreversible
  • Encoder: optical
  • Capacitor: 12.5 µF
  • External gear: Z15/mod. 4
  • Max. gate weight: 600 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 315 x 329 x 165.8 mm
  • Weight: 11.6 kg
