Roger Technology G30/2204 230V Motor Drive

1108,74 EUR including 22.00% VAT
Product code: #33188
Manufacturer: Roger Technology
  • gate weight: up to 2200kg
  • 230V engine
  • built-in H70/104AC control panel
  • speed: 10 m/min
  • magnetic switches
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30 Roger Technology KT222 Mounting plate for G30 actuators Roger Technology H70/104AC Control unit for 1 230 V AC motor Roger Technology CROSSF10 Metal toothed rack, galvanized 1m

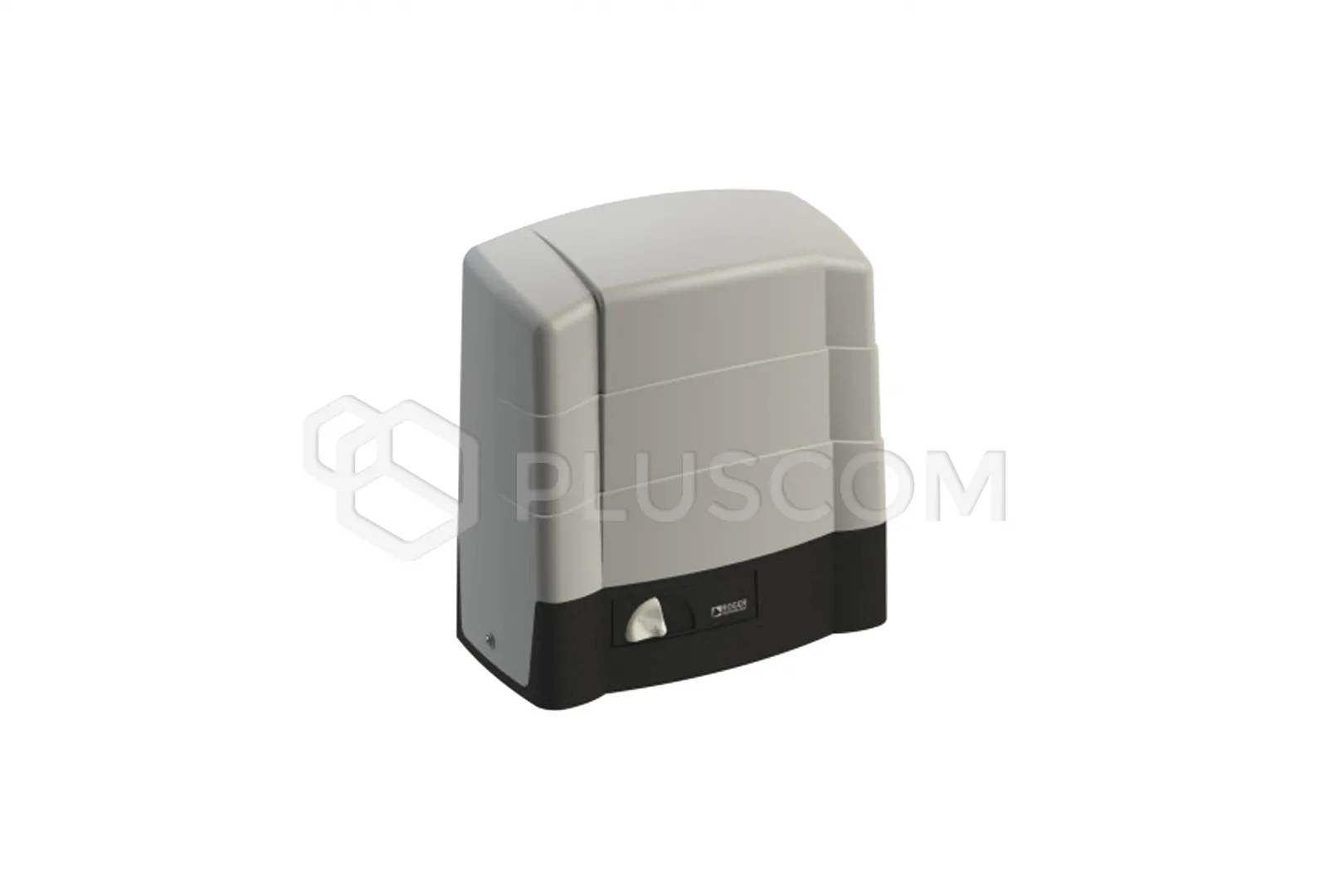

Roger Technolog yG30/2204 Drive with a 230V motor for sliding gates up to 2200 kg


Drive with a 230 V motor, for sliding gates with a maximum weight of 2200 kg, with an optical encoder, built-in H70/104/AC control unit and magnetic switches, as well as a base and screws for mounting.

FEATURES:

  • Gate weight max 2200 kg
  • Metal alloy gear without plastic, without Teflon, without nylon
  • Magnetic switches
  • Drive unlocking secured with a personalized key
  • Control unit with LED display
  • Optical encoder management
  • Soft start and slowdown

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 230V AC 50Hz
  • Rated power: 580 W
  • Force: 1500 N
  • Speed: 10 m/min (0.16 m/s)
  • Motor thermal protection: 150°C
  • Gear motor type: irreversible
  • Encoder: optical
  • Capacitor: 18 µF
  • External gear: Z17/mod. 4
  • Max. gate weight: 2200 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 346 x 362 x 180 mm
  • Weight: 20.6 kg
