Roger Technology KIT R30/806/L KIT LIGHT

902,97 EUR including 23.00% VAT
Product code: #33258
Manufacturer: Roger Technology
  • gate weight: up to 800kg
  • 230V engine
  • built-in B70/104/AC control panel
  • speed: 10 m/min
  • 2 x 2-channel remote controls T80/TX2, R90/F2ES photocells
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology UNI-1 BASE Bases for mounting H30 and BH30 Roger Technology KT222 Mounting plate for G30 actuators Roger Technology H70/104AC Control unit for 1 230 V AC motor Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30

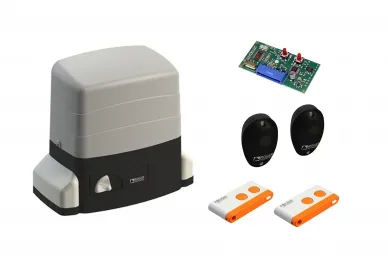

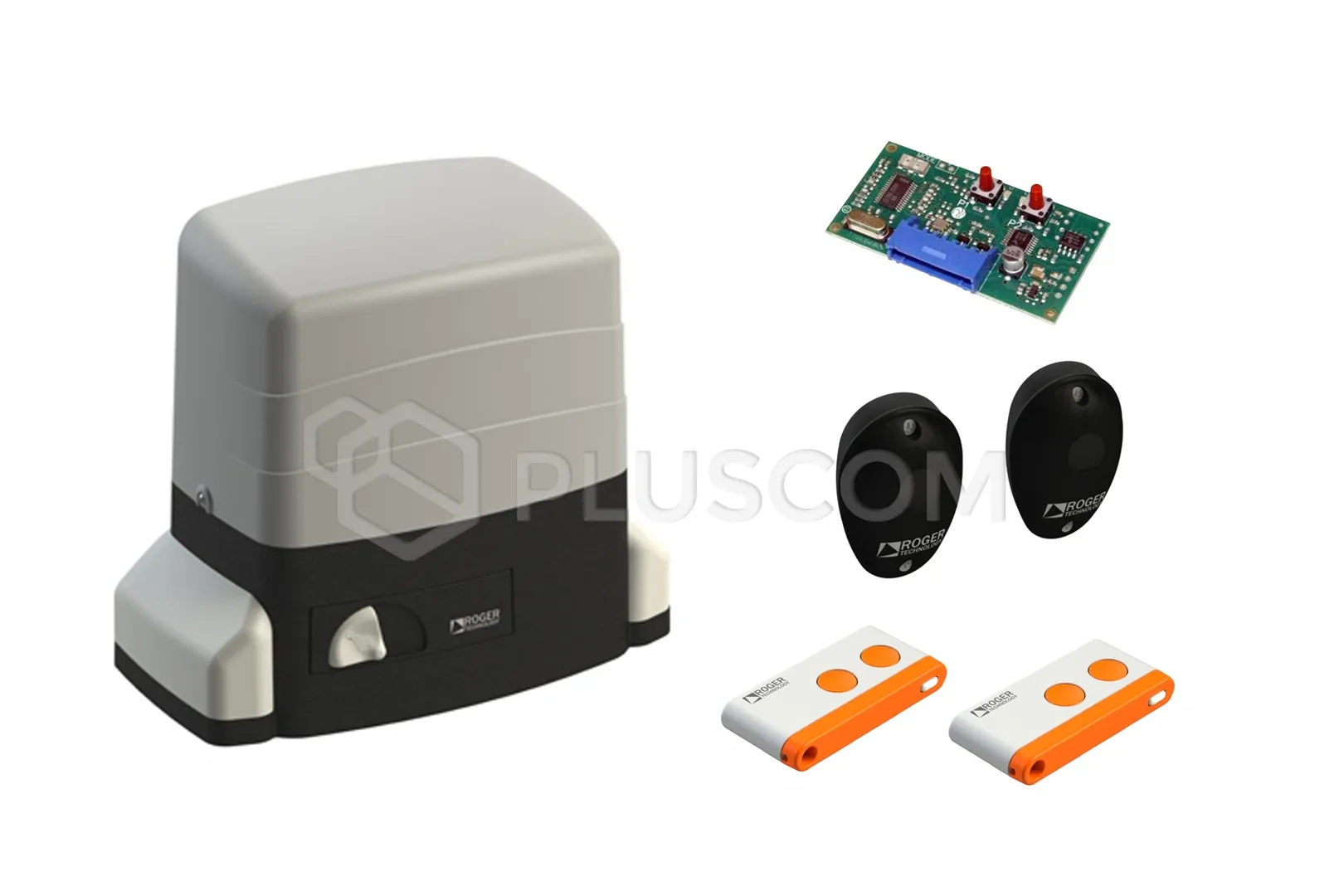

Roger Technology KIT R30/806/L KIT LIGHT set with a drive with a 230V motor for sliding gates up to 800 kg


The set consists of:
Roger Technology KIT R30/806/L KIT LIGHT

Roger Technology KIT R30/806/L KIT LIGHT
Drive with a motor 230 V, for sliding gates with a maximum weight of 800 kg, with an optical encoder, built-in H70/104/AC control unit and magnetic switches, as well as a base and mounting screws.

FEATURES:

  • Electromechanical drive
  • Asynchronous, single-phase 230 V motor
  • Gate leaf weight up to 800 kg
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Magnetic switches
  • Built-in control unit with LED display (H70/104AC)
  • Optical encoder management
  • 500 N thrust force
  • Soft start and slowdown
The actuator set is enriched with two 2-channel T80/TX2 remote controls with fixed code / rolling code operating at a frequency 433.92MHz and a set of R90/F2ES photocells, based on infrared technology.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 230V AC 50Hz
  • Nominal power: 350 W
  • Force: 500 N
  • Speed: 10 m/min (0.16 m/s)
  • Motor thermal protection: 150°C
  • Gear motor type: irreversible
  • Encoder: optical
  • Capacitor: 12.5 µF
  • External gear: Z17/mod. 4
  • Max. gate weight: 800 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 325 x 294 x 162 mm
  • Weight: 15.9 kg
