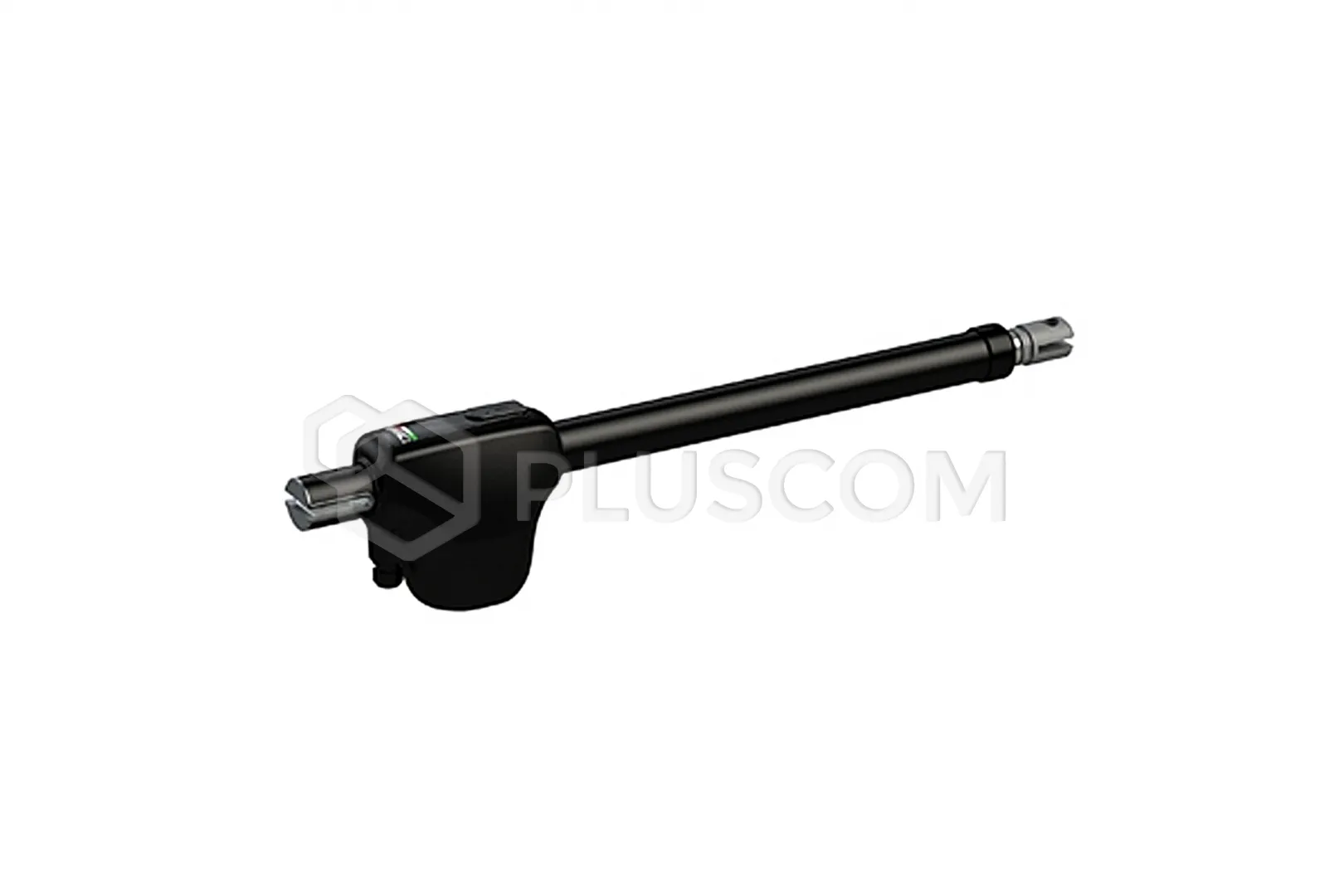

Roger Technology MONOS4 24V Brushless Motor Drive

451,48 EUR including 23.00% VAT
Product code: #33288
Manufacturer: Roger Technology
  • Leaf length up to 4m
  • Weight up to 450kg
  • Engine power supply 24V
  • Digital encoder
  • Adjustable pole mount and mounting bracket included
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology B70/2ML/BOX Control unit for 2 24 V DC motors Roger Technology KT248 MONOS wing mounting bracket Roger Technology HT420 MONOS Actuator Piston Cover Roger Technology B71/BC/INT Battery Pack

Roger Technology MONOS4 Drive with 24V brushless motor for swing gates up to 4m per wing


A drive with a telescopic arm for swing gates designed to automate a double-leaf gate with a maximum wing length of 4m and weight up to 450 kg.
BRUSHLESS motor powered by low voltage, for super-intensive use, with a built-in native encoder, irreversible. Complete with short brackets for screwing.

It is characterized by very quiet operation and is adapted for intensive use. The actuator can perform approx. 700 cycles per day.
Maximum hinge depth - up to 9 cm.

FEATURES:

  • 24 V brushless motor
  • For intensive work - 700 cycles/day
  • Metal alloy gear without plastic, without Teflon, without nylon
  • Drive unlocking secured with a personalized key
  • Digital encoder management
  • 2200 N thrust force
  • High work culture
  • Low energy consumption

TECHNICAL DATA:

  • Mains power supply: 230 V AC - 50 Hz
  • Motor power supply: 24 V
  • Nominal power: 200 W
  • Use frequency: Intensive
  • Force: 2200 N
  • Operating temperature: -20°C / +55°C
  • Protection class: IP43
  • Gear motor type: Irreversible
  • Speed: 2.1 cm/s
  • Opening time to 900: 19-35 s
  • Stroke: 400 mm
  • Control unit: B70/2ML
  • Encoder: Built-in digital + magnetic digital SENSORED, 48 pulses per revolution
  • Number of cycles per day: 700
  • Weight: 7 kg
