Roger Technology KIT MONOS4/L KIT LIGHT

1130,27 EUR including 23.00% VAT
Product code: #33250
Manufacturer: Roger Technology
  • Leaf length up to 4m
  • Weight up to 450kg
  • Engine power supply 24V
  • Adjustable pole mount and mounting bracket included
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F4ES photocells
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology B71/BC/INT Battery Pack Roger Technology B70/2ML/BOX Control unit for 2 24 V DC motors Roger Technology KT248 MONOS wing mounting bracket Roger Technology HT420 MONOS Actuator Piston Cover

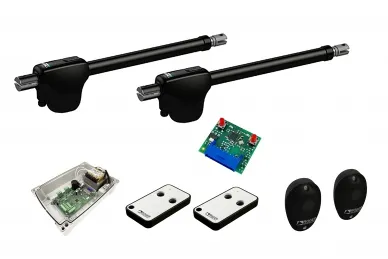

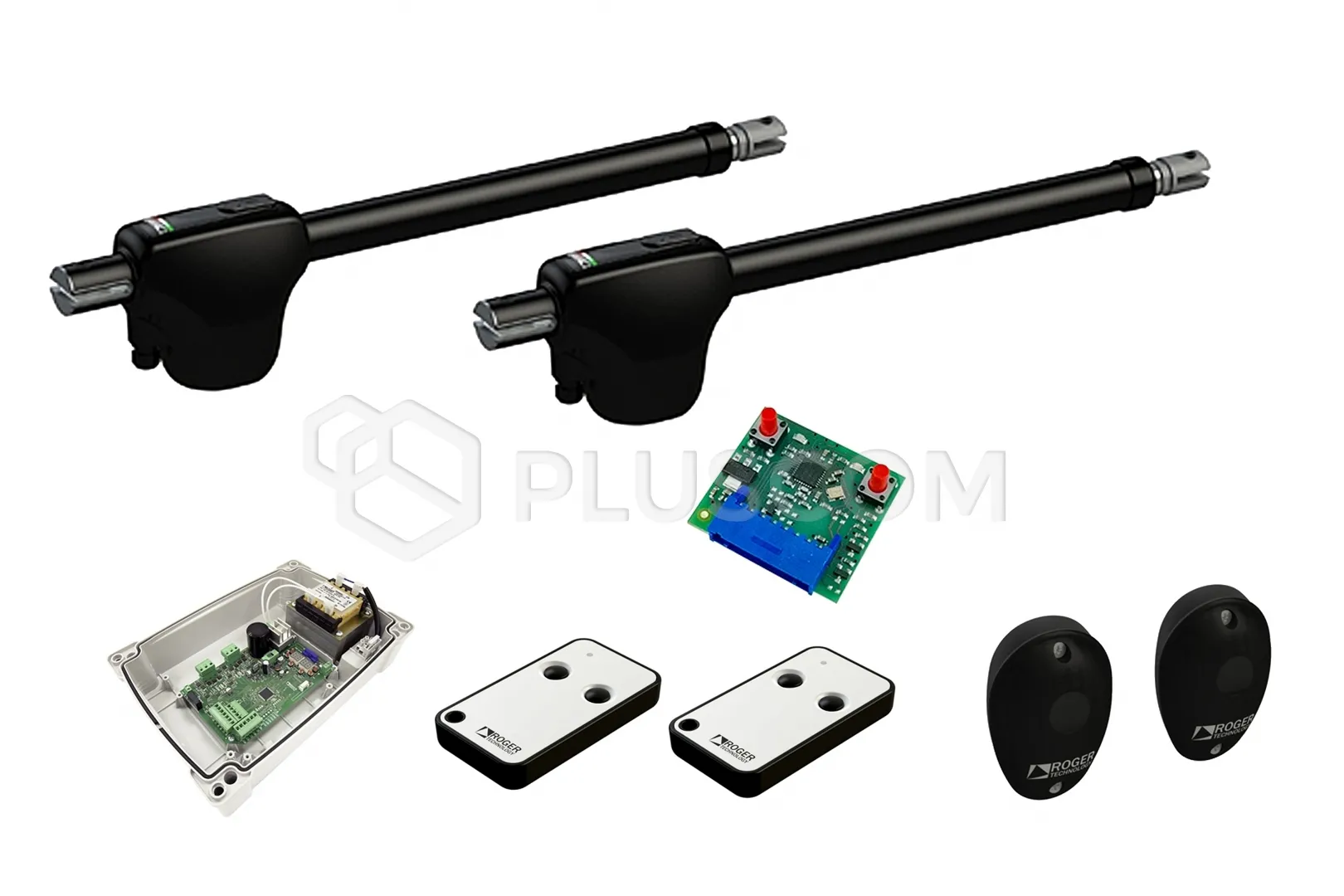

Roger Technology KIT MONOS4/L KIT LIGHT with 24V brushless motor drive for swing gates up to 4m per wing


The set consists of:
Roger Technology KIT MONOS4/L KIT LIGHT

Roger Technology KIT MONOS4/L KIT LIGHT
A telescopic arm drive for a swing gate designed to automate a double-leaf gate with a maximum leaf length of 4m and weight up to 450 kg.
BRUSHLESS motor powered by low voltage, for super-intensive use, with a built-in native encoder, irreversible. Complete with short brackets for screwing.

It is characterized by very quiet operation and is adapted for intensive use. The actuator can perform approx. 700 cycles per day.
Maximum hinge depth - up to 9 cm.

The actuator set is enriched with two 2-channel E80/TX52R/2 remote controls with a fixed code of 433.92 MHz with a copy function and a set of R90/F4ES photocells, based on infrared technology.

TECHNICAL DATA:

  • Mains power supply: 230 V AC - 50 Hz
  • Motor power supply: 24 V
  • Nominal power: 200 W
  • Use frequency: Intensive
  • Force: 2200 N
  • Operating temperature: -20°C / +55°C
  • Protection class: IP43
  • Gear motor type: Irreversible
  • Speed: 2.1 cm/s
  • Opening time to 900: 19-35 s
  • Stroke: 400 mm
  • Control unit: B70/2ML
  • Encoder: Built-in digital + magnetic digital SENSORED, 48 pulses per revolution
  • Number of cycles per day: 700
  • Weight: 7 kg
