Roger Technology KIT BR21/354/HS/F KIT FULL

2786,76 EUR including 23.00% VAT
Product code: #40618
Manufacturer: Roger Technology
  • Leaf length: max 3m
  • Leaf weight: max 400kg
  • Engine power supply 36V
  • For intensive work
  • 2 x E80/TX52R/2 remote control, R90/F4ES photocells, EDGE1/BOX control panel, FIFTY/24 lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology FU101 Galvanized steel housing and cover Roger Technology FU100 Galvanized steel housing and cover Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack Roger Technology RL651 Key Unlock Roger Technology LT300 Gate opening lever kit Roger Technology FU103 Housing and cover made of stainless steel INOX 304

Roger Technology KIT BR21/362/L for double-leaf gates up to 5m long and weighing up to 1000kg

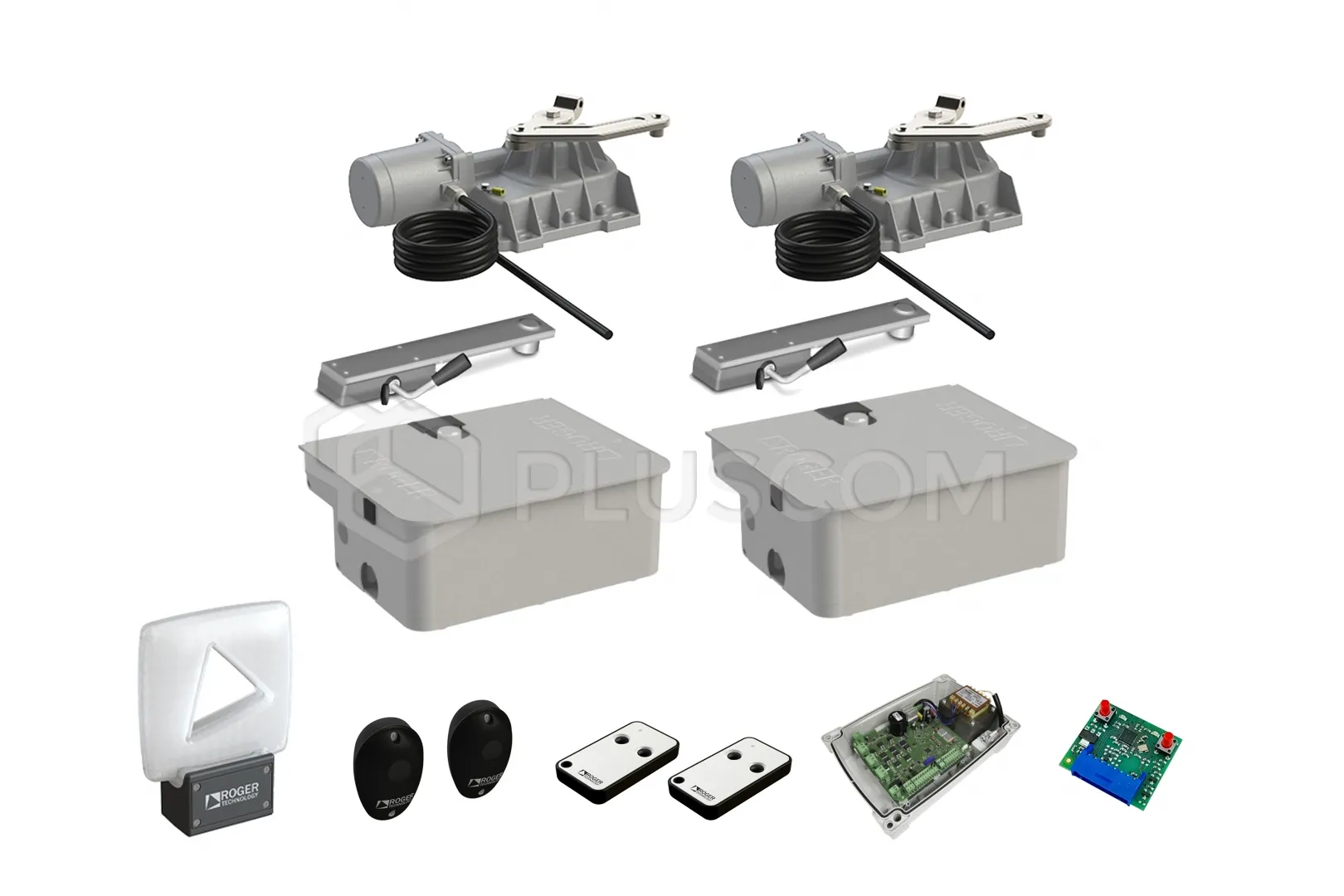

The set consists of:
Roger Technology KIT BR21/354/HS/F KIT FULL

Roger Technology KIT BR21/354/HS/F KIT FULL
The biggest advantage of underground actuators is the aesthetics and discretion of the drive which is invisible and does not spoil the image of the gate.
The second significant strength of underground drives is the possibility of installation in a place where due to:
  • narrow entrance
  • very narrow posts where dimension A is less than 100mm
  • there is no space for installing screw drives or with a folding arm
BR21/351/HS is an underground actuator that allows for the implementation of a stylish and discreet automation installation for gates with a leaf length of up to 3m and a weight of 400kg.

The greatest advantage of underground actuators is the aesthetics and discretion of the drive, which is invisible and does not spoil the image of the gate.
The second significant advantage of underground drives is the possibility of installation in a place where due to:
  • narrow entrance
  • very narrow posts where the A dimension is less than 100mm
  • there is no space for the installation of screw drives or with a folding arm
The drive is with a 36 V brushless motor, for very intensive work - 1300 cycles per day.
Opening time to 90° is 10-25 s. The device has a built-in digital encoder and mechanical limiters for opening and closing. Gears made of metal alloys, without plastic, without Teflon, without nylon. Digital encoder management. It is characterized by quiet and fast operation and a solution that does not interfere with the appearance of the gate.
The actuator is characterized by quiet operation, low energy consumption and a solution that does not interfere with the appearance of the gate.

DATA TECHNICAL:

  • Mains power supply: 230V AC - 50Hz
  • Motor power supply: 36V
  • Nominal power: 200W
  • Use frequency: Intensively used
  • Motor torque: 50 - 200 N m
  • Operating temperature: -20+55°C
  • Protection class: IP67
  • Gear motor typology: irreversible
  • Speed: 2 Rpm
  • Opening time: 10-25 s
  • Switches: Mechanical limiters
  • Recommended digital controllers: 230V: EDGE1/BOX - 115V: EDGE1/BOX/115
  • Encoder: Built-in digital SENSORLESS, 48 pulses per revolution
  • Maximum aperture: 105° (optional 125° - 360°)
  • Number of cycles per day (opening/closing - 24h non-stop): 1300
  • Dimensions: 345 x 224 x 144mm
  • Weight: 12.8kg
